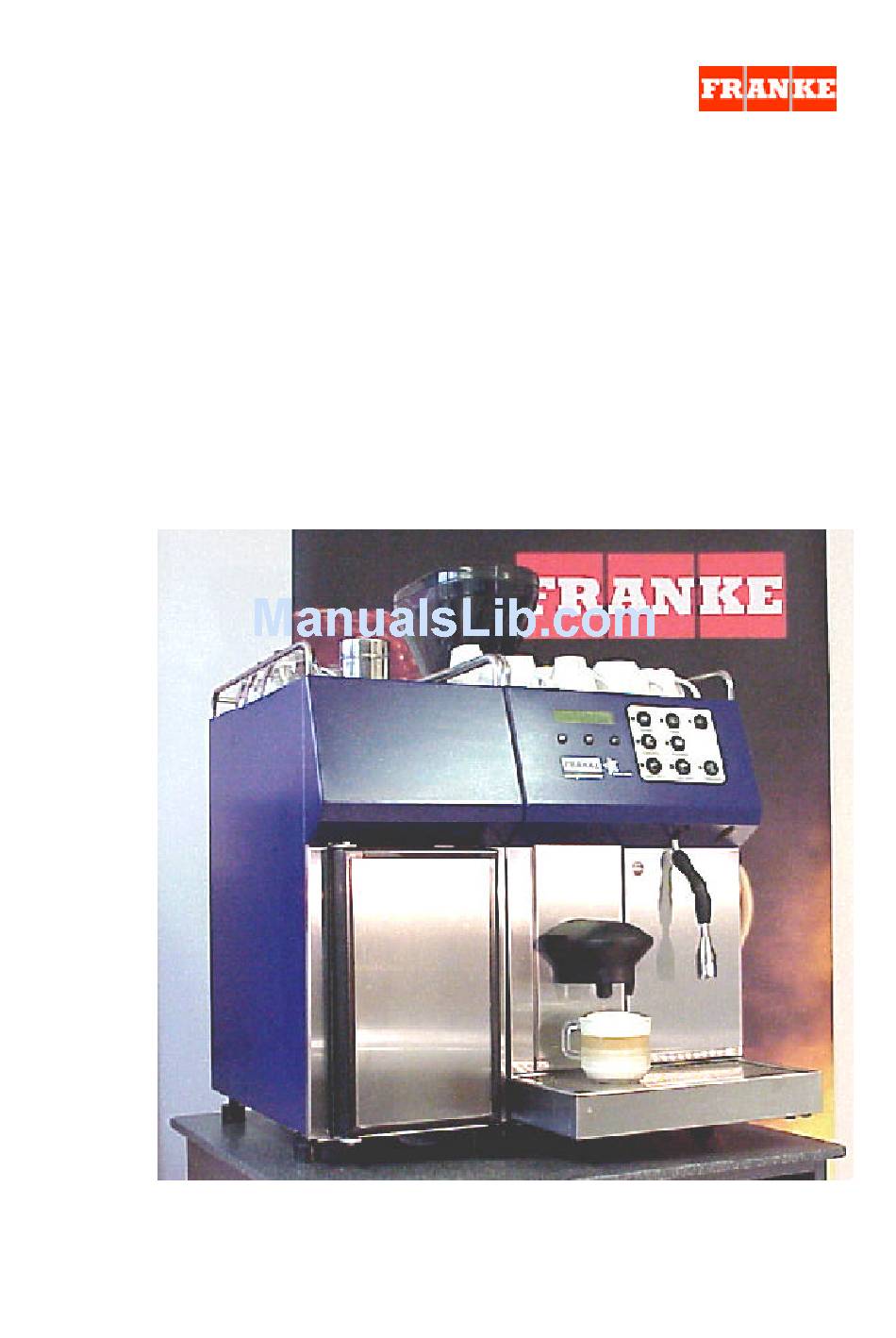

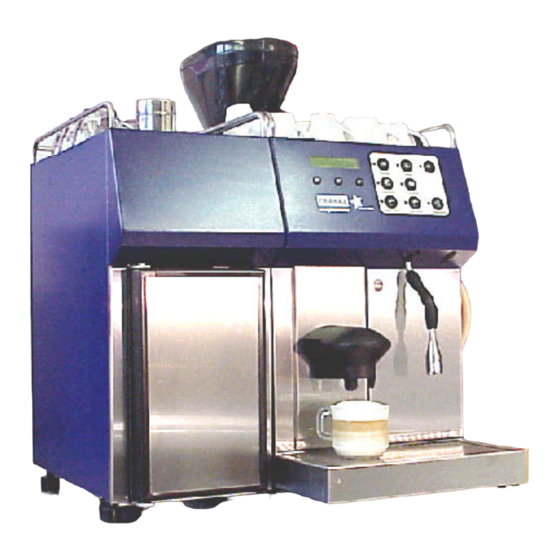

Operating Manual Typ E / E II
Coffee machine Ecolino / Ecopower Milk system
Softwareversion ab: V 4.03
Änderungsnummer : SL 20'987
Datum: 07.05.2002, Rev. C
Visum: BJC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coffee machine Ecolino and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke Coffee machine Ecolino

Summary of Contents for Franke Coffee machine Ecolino

  • Page 1 Operating Manual Typ E / E II Coffee machine Ecolino / Ecopower Milk system Softwareversion ab: V 4.03 Änderungsnummer : SL 20'987 Datum: 07.05.2002, Rev. C Visum: BJC...
  • Page 2 Valued customer Congratulations on purchasing a Franke coffee machine. You have chosen a high-quality appliance for the preparation of coffee, developed and manufactured in line with the latest state of the art. Franke AG’s Coffee Machines Business Unit produces appliances according to the standards ISO 9001 and ISO 14001.

  • Page 3: Table Of Contents

    Contents 1. GENEREL ..........................6 1. 1 Installation ..........................6 1.1.1 Installationsplan Ecopower Milk system ..................6 1.1.2 Installationsplan Ecolino Milk system ................... 7 1.1.3 Water connection ........................8 1.1.4 Power connection Ecopower Milk System ..................8 1.1.5 Power connection Ecolino Milk System ..................9 1.1.6 Dimensions ..........................
  • Page 4 4.3.1.5 Set time ..........................29 4.3.1.6 Set date ..........................30 4.3.1.7 Switch on/off time ........................30 4.3.1.8 Change PIN code from the Adjust Card ..................31 5. OPTIONS ..........................32 5.1 Water container execution ....................... 32 5.1.1 General Remarks ........................32 5.1.2 Cleaning ...........................
  • Page 5 7.1 Cleaning tablets ........................... 48 7.2 Cleaning agent for milk froth unit CF 1 / CF " ................... 48 1T 310'783 Operating Manual Ecolino / Ecopower Milk System Erstellt: 07.05.2002 Rev.: C SL: 20'987 BJC page 5...

  • Page 6: Generel

    1. GENEREL ECOPOWER Legend Control unit E.S.M. key Chip Card reader Product keys Clean and "-" key Stop and "+" key 5 6 7 Shift key Coffee outlet Tea outlet 9 10 Steam outlet Coffee grounds container door Pushbutton Drip grille Bean container left Bean container right (option left grinder) Filling hopper...

  • Page 7: Installationsplan Ecolino Milk System

    ECOLINO Legend Control unit E.S.M. key Chip Card reader Product keys Clean and "-" key 5 6 7 Stop and "+" key Shift key Coffee outlet Tea outlet Steam outlet Coffee grounds container door Pushbutton Drip grille Bean container left Bean container right (option left grinder) Filling hopper Display...

  • Page 8: Water Connection

    1.1.3 Water connection - When a new coffee machine is installed, the pressure hose and the water pipe must be thoroughly flushed. - The coffee machine must be connected to a drinking water pipe with a tap. The premounted pressure hose with a G3/8" screw connection on the pressure reducer is connected to the water tap (adjust to 3 bar) - The drain hose supplied is connected to the drip tray and to the trap.

  • Page 9: Power Connection Ecolino Milk System

    1.1.5 Power connection Ecolino Milk System Basic models Connected load Current E 1M H CF 2,2kW /10 A 230-240 Vac (PNE) E 1M HDCF 2,2kW /10 A 230-240 Vac (PNE) E 2M H CF 2,2kW /10 A 230-240 Vac (PNE) E 2M HD CF 2,2kW /10 A 230-240 Vac (PNE)

  • Page 10: Ratingplate

    - The noise emissions can exceed 7 dB (A) when beverages are heated by means of steam function. - FRANKE cannot assume any liability for damage caused by failure to observe these operating instructions. 1T 310'783 Operating Manual Ecolino / Ecopower Milk System Erstellt: 07.05.2002...

  • Page 11: Declaration Of Conformity

    1.5 Declaration of conformity Ihr Partner für Franke AG Aarburg Tel. ++41 (0)62 787 31 31 Küche und Gastronomie Fax ++41 (0)62 791 67 61 CH-4663 Aarburg Bau und Industrie Schweiz Internet www.franke.ch EU/UE KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY DECLARATION DE CONFORMITE...

  • Page 12: Display Messages

    2 DISPLAY MESSAGES 2.1 Fault- and information messages locked selection This message appears when the coffee machine is switched on heating and remains until the operating temperature is reached. locked selection This message may appear when large quantities of hot water heating are taken off at short intervals.
  • Page 13 empty drawer The grounds container door is open. This message appears open door when you empty the grounds container. The grounds container must be emptied before the door is closed again. select product Only 5 coffee products can be selected before product output drawer full is blocked.

  • Page 14: Messages During Use With Chip Cards

    locked selection Request for milk to be refilled. Depending on the programming, it is re-fill milk possible to dispense up to another 5 milk products before milk products are disabled. Has the milk container been correctly inserted? If the cooling unit is not switched on, this message also appears.

  • Page 15: Operation

    3 OPERATION 3.1 Daily Operation 3.1.1 Operational readiness of the coffee machine 1. Before switching on, the following points must be observed: a) The water supply has been opened b) The coffee machine must be connected to the power supply c) The coffee bean containers have been filled 2.

  • Page 16: Preparation Of Coffee Products (Powder)

    3.1.3 Preparation of coffee products (powder) 1.Push outlet to desired height 2. Place cup under the outlet select product 3. Press appropriate programmed product pre-ground coffee 4. Introduce the powder through the filling hopper 5. Press the selected product again select product presele.

  • Page 17: Cappuccino / White Coffee / Froth / Milk / Macchiato

    3.2 Cappuccino / White coffee / Froth / Milk / Macchiato 3.2.1 Preparation of Cappuccino / White coffee / macchiato 1. Push outlet to desired height 2. Place cup under the coffee outlet and milk froth unit 3. Select desired product 4.

  • Page 18: Preparation Of Beverages Using The Shift Key

    3.3 Preparation of beverages using the Shift key All product keys can be programmed with double functions by means of the Shift key, i.e. two different product definitions are possible per product key. 3.3.1 Preparation of coffee products- and milky coffee products 1.

  • Page 19: Rinse / Autorinse

    3.4 Rinse / Autorinse 3.4.1 Rinse If the Clean key is pressed for about 2 seconds, the infusion system and, where present, the milk and frothy milk device are rinsed. This rinse sequence takes about 15 seconds. The rinse sequence does not replace daily cleaning as described under Section 3.5.

  • Page 20: Daily Cleaning

    Read these instructions carefully and keep them in a suitable place. - Use only satisfactory, cooled milk. - Use the cleaning agents recommended by Franke. - Carry out the cleaning at least once a day after closing.

  • Page 21: Automatical Cleaning Of The Milksystem Cf

    5. Remove frother head and dismantle (Figures 6 and 8). 6. Clean all parts of the frother head using a mild cleaning agent in water at about 50°C. IT IS ESSENTIAL TO USE BRUSHES FOR HOLES (Figures 9-12). Rinse all parts with fresh water.
  • Page 22 Figure 5 Figure 6 Figure 7 5. Briefly press Clean key (Figure 5) clean locked selection 6. Raise tea and steam outflow and press the marked area of the door (Figure 6). The door must be opened clean within 7 seconds, otherwise the coffee machine open door switches back to the operating mode.
  • Page 23 Figure 12 Figure 13 Figure 14 12. Close the door (Figure 12). clean locked selection 13. After the door has been closed, the display shows the following after approx. 2 seconds: clean cleaning tablet 14. Drop in tablet through filling funnel (Figure 13). 15.
  • Page 24 Figure 15 Figure 16 Figure 17 18. Now remove the milk container and clean it (Figure 15). 19. Now pour 1 litre of cold water into it (Figure 16). 20. Place the container back in the refrigerator, place the milk tube in the container and close the door (Figure 17).

  • Page 25: Switching Off The Coffee Machine

    3.6 Switching off the coffee machine 1. The coffee machine is switched off by pressing the E.S.M. key for about 2 seconds. The display illumination goes out and the display shows E.S.M. 15:00 10.04.97 - With appropriate programming, the unit switches automatically to the E.S.M. mode after a certain time.

  • Page 26: Chip Cards

    4 CHIP CARDS 4.1 Chip card functions 4.2 Download Card - The Download Card is used for saving machine configurations. The configurations can be saved from the coffee machine to the card or from the card to the coffee machine. - This card should be kept in a safe place.

  • Page 27: Adjust Card

    last backup date 14.04.1997 4. Remove the Download Card from the Chip Card select product reader 15:00 10.04.1997 4.3 Adjust Card The most important settings can be changed or adapted using the Adjust Card: - Set amount ground - Set water flow - Product counter total and per product - Clear counter - Set time...

  • Page 28: Set Amount Of Water

    4. Make the desired setting with "+" and "-" keys (The max. Setting range is +/- 20 %) 5. Setting can be terminated by pressing the Shift key, after which the user returns to the Adjust level. 4.3.1.2 Set amount of water 1.

  • Page 29: Clear Counter Readings

    4.3.1.4 Clear counter readings 1. Insert Adjust Card 2. Press the "+" or "-" key until the parameter delete counter is obtained perform ‘shift’ 3. Press the Shift key delete counter The user is asked to confirm that the counter reading delete? ‘shift’...

  • Page 30: Set Date

    8. Make the desired seconds setting with the "+" and "-" keys 9. Setting can be terminated by pressing the Shift key, after which the user returns to the Adjust level. 4.3.1.6 Set date 1. Insert Adjust Card 2. Press the "+" or "-" key until the parameter set date is obtained perform ‘shift’...

  • Page 31: Change Pin Code From The Adjust Card

    5. Press the Shift key on 00:00 6. Make the desired minutes setting of the switch-on time with the "+" and "-" keys 7. Press the Shift key on 00:00 off 00:00 8. Make the desired hours setting of the switch-on time with the "+" and "-" keys 9.

  • Page 32: Options

    5. OPTIONS 5.1 Water container execution 5.1.1 General Remarks The water container execution includes two different sizes of canisters: Large container = Fresh water Small container = Sewage water 5.1.2 Cleaning The fresh water container has to be cleaned daily and refilled with fresh water. The sewage container has to be emptied and cleaned daily.

  • Page 33: Option Of Second Grinder

    5.2 Option of second grinder The Ecolino can be equipped with two grinders. This makes it possible to use two different types of coffee or espresso beans for coffee or espresso preparations. 5.3 Option of mixing ground coffee Ground beans are dispensed from both coffee grinders. First the left grinder and then the right grinder are activated, depending on the percentage programmed.

  • Page 34: Accounting Systems

    6. ACCOUNTING SYSTEMS 6.1 Cash System The Cash System is operated with the integrated card reader. Operation of the Cash System is possible independently of any additional connected accounting system. To ensure that the user cards are operational, they must first be enabled and charged (Cash Card charging only).

  • Page 35: Preparation Of Beverages With The Cash/ Cash + Card Or Free Card

    6.1.3.1 Preparation of beverages with the Cash/ Cash + Card or Free Card Initially, the Ecolino must be ready for operation and the accounting switched on by means of the Management Card. There are two possibilities for dispensing beverages. If the product is selected, it is subsequently dispensed (normal function).

  • Page 36: Messages

    6.1.4 Messages credit: 00.00 The product price is higher than the remaining credit on the Cash too littel credit Card. The Cash Card must be charged. For charging the Cash Card, see Section 6.1.6. credit-mode This message appears only for about 3 seconds. A product key has insert card been chosen but the Cash Card has not been inserted into the chip card reader.

  • Page 37: Handling Of The Management Card

    6.1.5.1 Handling of the Management Card If the Management Card has not yet been assigned to the Ecolino (setting made at the factory), you will be requested to input the installation number when you first insert the Management Card into the chip card reader.

  • Page 38: Change Price

    6. Make the desired minutes setting of the switching time for price 1 using the "+" and "-" keys 7. Press the Shift key price 1 00:00 price 2 00:00 8. Make the desired hours setting of the switching time for price 2 using the "+"...

  • Page 39: Change Chocolate Prices

    6.1.5.5 Change chocolate prices This parameter appears only if the optional chocolate machine has been programmed. 1. Insert Management Card into the card reader 2. Press the „+“ and „-“ key until the parameter appears chocolate price select product 3. Press chocolate product Price 1 0.00 (Points 4-6 as before)

  • Page 40: Clear Sales

    6.1.5.8 Clear sales The Cash Card and Free Card sales can be cleared by means of this parameter. 1. Insert the Management Card into the card reader 2. Press the "+" or "-" key until the parameter is delete turn-over obtained perform "shift"...

  • Page 41: Change Pin-Code

    3. Press the Shift key delete card You are asked to confirm that the Free Card table is delete? "shift" to be cleared. If this is not the case, change to the Management level with the "+" or "-" key 4.

  • Page 42: Load Chip Cards

    6.1.6.2 Load Chip Cards 1. Insert the Load Card into the card reader 2. Press the "+" or "-" key until the parameter is obtained load chip cards perform "shift" 3. Press the Shift key remove card The Load Card must be removed insert card cash/load à...

  • Page 43: Chip Card Loads

    4. Insert the Cash Card into the card reader cash card The user is asked to confirm that the Cash Card is to delete? "-" be cleared. If this is not the case, remove the Cash Card and insert the Load Card into the card reader. 5.

  • Page 44: Enable Chip Cards

    4. Insert the Cash Card into the card reader cash-A The card number and Cash Card Group are displayed. card number XXXXXXX' 5. Remove the Cash Card insert card cash/load à 6. If further Cash Cards are to be inspected, steps 4+6 insert card must be repeated.

  • Page 45: Change Pin Code

    5. The Cash Card must be removed remove card 6. If furhter Cash Cards are to be disabled, steps 4+5 insert card must be repeated. cash/load à 7. Insert the Load Card into the card reader lock chip cards perform "shift" 6.1.6.8 Change PIN code 1.

  • Page 46: Types Of Coin Calidators

    6.2.3. Types of Coin Calidators Mars Cash Flow 330 Please do not hesitate to contact our After Sales Service for any additional information you may need. 6.3 Payment Systems 6.3.1 General Remarks Payment systems are understood as systems which include a certain amount on a medium. When selecting a product the respective price is deducted from the mdium.

  • Page 47: Waiter Control System

    6.4 Waiter Control System 6.4.1 General Remarks - The waiter control system runs through a server unit. After identification of waiter the product will be released by the Ecopower. The server system transmits following information to the cash register: Waiter's identification Product number All products will then be booked at the cash register to the particular waiter.

  • Page 48: Accessories

    Scope of delivery 1l bottel (is enough for 15 liters detergent water) THE TECHNICAL DATA AND THE EQUIPMENT MAY BE MODIFIED TO MAKE IMPROVEMENTS THROUGH FRANKE AG. 1T 310'783 Operating Manual Ecolino / Ecopower Milk System Erstellt: 07.05.2002 Rev.: C SL: 20'987 BJC...
