Sdi to composite/cav/rgb encoder densite series

Advertisement

Quick Links

DESCRIPTION

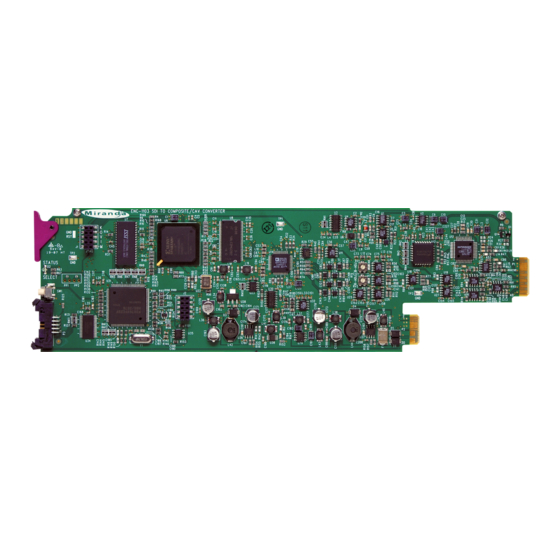

The ENC-1103 is a high-quality encoder with 12-bit
conversion allowing operators to convert a SDI signal to
Composite, CAV or RGB. The composite outputs can be
NTSC, PAL or PAL-M and the component outputs can be
SMPTE, BETACAM or GBR formats. With its on-board
Genlock and Video Proc-Amp, the card provides flexible
system integration. An optional Frame Sync provides infinite
timing adjustment relative to an external reference. When
embedded audio is required to be separated into discrete
channels, the built-in audio demux (24-bit) allows up to 8
channels (2 groups) to be passed to an audio card. New
technology includes thumbnail generation and an optional
Waveform/Vectorscope over IP of the output signal which
allows operators to control and see the changes made to
the signal.
This card operates with the MSB-1121 Monitoring Switching
Bridge which allows the output of any module in the Densité
frame to be monitored.

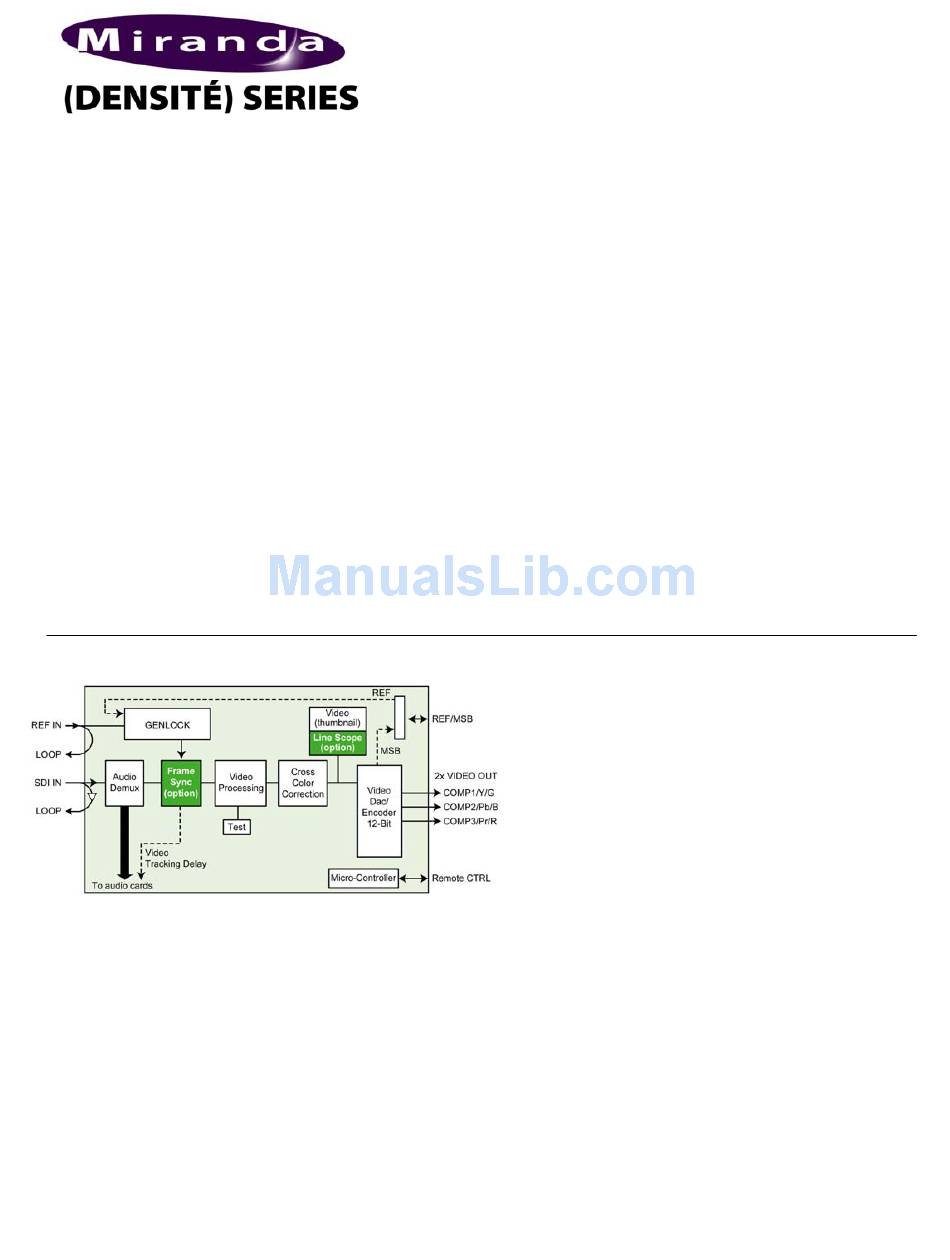

FUNCTIONAL BLOCK DIAGRAM
SPECIFICATIONS
INPUT
SIGNAL:
SMPTE 259M-C (270 Mbps)
isolated with active loop through
EMBEDDED AUDIO:
SMPTE 272M-A
CABLE LENGTH:
300 m (1000') of Belden 1694A
RETURN LOSS:
> 15 dB up to 270 MHz
EXTERNAL REFERENCE
SIGNAL:
NTSC SMPTE 170M, PAL ITU
624-4 or Composite sync with
passive loop-through
RETURN LOSS:
> 35 dB up to 5.75 MHz
ENC-1103 SDI to Composite/CAV/RGB Encoder
ENC-1103
Features and Benefits
SDI isolated input w/active loop-through
External reference input w/passive loop-through
Up to six (6) Composite / two (2) CAV analog video
outputs
12-bit D to A video conversion
Line comb pre-filter selection for NTSC
Video processing controls
Hot-switch detection and handling
Frame Sync Option provides timing, full phasing and
freeze modes
Thumbnail Generation
Waveform/Vector over IP option (operates with
iControl)
Provides output to Monitoring Switching Bridge option
(MSB-1121)
De-embedding of 8 channels (2 groups) of audio to a
linked audio card (ex: UAP-1781)
VIDEO OUTPUTS (6)
SIGNAL:
RETURN LOSS:
VIDEO PROCESSING PERFORMANCE
SIGNAL PATH:
QUANTIZATION:
DAC:
SAMPLING:
FREQ. RESPONSE:
NOISE:
DIFFERENTIAL PHASE: < 1.5 degree
DIFFERENTIAL GAIN: < 1%
PROCESSING DELAY: 75 µs (min.)
TEST GENERATOR:
POWER:
ENC-1103
Guide to Installation and Operation
M756-9600-100
NTSC (525/60) SMPTE
170M, PAL (625/50) ITU 624-
4, incl. PAL-M
Component Analog (GBR with
sync on G or Y/B-Y/R-Y)
Betacam and SMPTE Levels
> 35 dB up to 5.75 MHz
10 bits
10 bits
12 bits
108 MHz (8X over-sampling)
COMP./Y : ± 0.1dB to 5.5
MHz, +0/-0.6 dB from 5.5 to
5.75 MHzR-Y/B-Y : ± 0.15 dB
to 2.0 MHz
< -60 dB to 5.75 MHz
(UNWEIGHTED)
75% color bars
5 W
July 2008
Page 1 of 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Densite ENC-1103 and is the answer not in the manual?

Questions and answers

Summary of Contents for Miranda Densite ENC-1103

  • Page 1 M756-9600-100 July 2008 ENC-1103 DESCRIPTION Features and Benefits The ENC-1103 is a high-quality encoder with 12-bit conversion allowing operators to convert a SDI signal to • SDI isolated input w/active loop-through Composite, CAV or RGB. The composite outputs can be •...
  • Page 2 The status monitor LED is located on the front card-edge Detailed instructions for installing cards and their of the ENC-1103 module, and is visible through the front associated rear panels in the Densité frame are given in access door of the DENSITÉ frame. This multi-color LED the Densité...
  • Page 3 Card System : Factory default iControl Interface Status Icons - At the top, to the left of the Miranda logo, are The operation of the ENC-1103 may be controlled using five status icons that report various aspects of the card’s Miranda’s iControl system.
  • Page 4: Table Of Contents

    Output ..............5 Profiles – the Profiles button opens a panel that allows the Thumbnail ............6 entire card set-up to be copied to other ENC-1103 cards Blanking .............. 6 Timing ..............7 All of the individual control panels are described in detail Reference Input ..........
  • Page 5: Audio Processing

    ENC-1103 SDI to Composite/CAV/RGB Encoder Guide to Installation and Operation Audio Processing tab Group Detected: highlights the AES audio groups detected in the input signal. CH1,2,3,4, and CH 5,6,7,8: select the AES group to be used as source for channel 1 to 4 and 5 to 8.
  • Page 6: Thumbnail

    Guide to Installation and Operation Thumbnail tab Thumbnails are used to monitor the video output signal of the ENC-1103. Streaming parameters are set using these controls. ENABLE: OFF, VIDEO: enables thumbnail streaming or turn streaming OFF SIZE: SMALL, MEDIUM, LARGE: select the size of the Thumbnail image.
  • Page 7: Timing

    ENC-1103 SDI to Composite/CAV/RGB Encoder Guide to Installation and Operation Timing tab These controls provide access to timing adjustments which affect the signal outputs. There are three slider controls, each with a data reporting box which shows the current value, and into which values can be typed directly.
  • Page 8: Input Error

    FREEZE will freeze the last video frame before the error was detected. Options tab Two options are available for the ENC-1103: the Frame Sync option (ENC-1103-OPT-FS) and the Line Scope over IP option (ENC-1103-OPT-LS). FRAME SYNC Option : to activate this option, you must obtain a licence key from Miranda Technologies.
  • Page 9: Abus

    When optional audio cards such as the UAP-1781 are used to provide additional audio signals, the ABUS audio bus links installed audio cards and the ENC-1103. The ABUS tab is used to instruct the ENC-1103 about the presence of installed audio cards.
  • Page 10: Factory

    Factory tab The Factory tab contains only the LOAD FACTORY button. Clicking this button will reinstate all default parameter values. See the ENC-1103 Menu below (page 16) to see the default value for all parameters. Alarm Config button This panel allows the alarm reporting of the ENC-1103 to be configured.
  • Page 11 ENC-1103 SDI to Composite/CAV/RGB Encoder Guide to Installation and Operation • GSM Contribution This column allows configuration of the contribution of each individual alarm to the GSM Alarm Status associated with this card. GSM is a dynamic register of all iControl system alarms, and is also an alarm provider for external applications.
  • Page 12: Info

    Cancel closes the window without applying any changes, and leaves the previous settings intact. Info tab When the ENC-1103 is included in an iControl environment, certain information about the card should be available to the iControl system. The user can enter labels and comments that will make this card easy to identify in a complex setup.
  • Page 13 • Remote System Administration – opens the Joining Locators data box, which lists remote lookup services to which this ENC-1103 is registered. Add: Force the iControl service for this ENC-1103 to register itself on a user-specified Jini lookup service, using the following syntax: jini://<ip_address>...
  • Page 14: User Presets

    This section provides the option to save and recover the entire card configuration (including user presets if desired) on an external disk, or to copy it to another ENC-1103 card. Click on the Profiles button at the bottom left corner of the control panel to open the Profile Copy window.
  • Page 15 Failed against a red background Restore profile from disk… Click this button to open an Open dialog box within which you can locate and select a valid ENC-1103 profile file. • Click Open to read the contents of the file and to reconfigure this ENC-1103’s profiles according to its...
  • Page 16 The Profile column shows the same information as is shown for the current card in the Copy profile from line, i.e. • Current, User1, User2, User3, User4, User5 The Select column includes a checkbox to identify which ENC-1103 cards you wish to copy profiles into from the current card. •...
  • Page 17 ENC-1103 SDI to Composite/CAV/RGB Encoder Guide to Installation and Operation OUTPUT FORMAT [NTSC, PAL-M, GBR, YUV, BETACAM] (525) [PAL, GBR, YUV, BETACAM] (625) SETUP [0, 7.5] (IRE) * Available with 525 input GAIN [-75, -74, ….0….74, 75] H BLANKING [WIDE, NARROW]...
  • Page 18 ENC-1103 SDI to Composite/CAV/RGB Encoder Guide to Installation and Operation REFERENCE SOURCE [AUTO, EXTERNAL, URS, INPUT] URS FORMAT [OFF, 525, 625] CARD SYSTEM [NONE, A1, A2, A1+A2] TEST [OFF / ON] CONFIG ALARMS NO SIGNAL ALARM LEVEL [GREEN, YELLOW, RED, FLASH RED]...
  • Page 19 This equipment has been tested and complies with the limits in accordance with the specifications in: FCC Part 15, Subpart B; CE EN50081-1:1992; CE EN50082-1:1992. CONTACT MIRANDA For technical assistance, please contact the Miranda Technical support centre nearest you: Europe, Middle East, Americas Asia Africa, UK...
