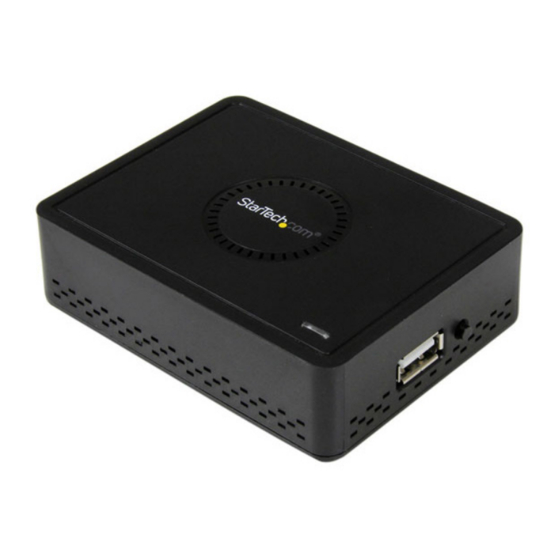

Wireless Display Adapter for Mobile Devices
WIF2HDMC / WIFI2HDMCGE
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/04/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com WIF2HDMC
Summary of Contents for StarTech.com WIF2HDMC
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/04/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Side View ..............................1 Back View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Firmware ............................... 4 Technical Support ..................16 Warranty Information ................16 Instruction Manual... -
Page 4: Product Diagram
Product Diagram Note: It is recommended the device WIFI2HDMC/WIFI2HDMCGE firmware be updated to version 2.0.2. (Please see the Firmware section (Page 4) for details) Side View USB Media Input Mode Select Button Back View Analog Audio/Video out Power (For included 4 position A/V cable only) adapter port RJ-45 LAN Power... -
Page 5: Introduction
Introduction Packaging Contents • Wireless Display Adapter (WIFI2HDMC/WIFI2HDMCGE) • Universal Power Adapter (NA/UK/EU) • USB Cable to Power Adapter Port (optional for USB Power source) • 4 position A/V cable • Software Installation Disc • Quick Installation Guide System Requirements •... -
Page 6: Installation
Installation 1. Using an HDMI cable (not included), connect the HDMI-out port on the WIFI2HDMC/WIFI2HDMCGE to the HDMI-in port on your HDMI-enabled display device. 2. Using the included power adapter, connect the power adapter port on your WIFI2HDMC/WIFI2HDMCGE to an available power outlet. Using the included USB power cable, connect the power adapter port on your WIFI2HDMC/WIFI2HDMCGE to an available USB power source. -
Page 7: Firmware
Firmware For optimal operation we recommend updating your firmware to the latest version (2.0.2). There are three possible firmware versions that may be loaded on your WIFI2HDMC/WIFI2HDMCGE (1.6.5 / 2.0.0 / 2.0.2). Please follow the below steps to identify your current firmware version, and update your firmware if required. Identify Your Current Firmware Version 1. - Page 8 3. If your current firmware version is 1.6.5 or 2.0.0, please proceed to Update to the Latest Firmware section in order to upgrade your firmware to the latest version. If your current firmware version is 2.0.2, no firmware update is required. Update to the Latest Firmware Version (2.0.2) WARNING! Do not unplug the USB flash drive or power down the device until the new primary launch screen is displayed.
- Page 9 Update from Version 1.6.5 1. Download the firmware update files from StarTech.com. 2. Unzip the compressed file. 3. Copy install.img and install_sp.img from the downloaded folder to the root directory (the parent/top directory) of the USB flash drive. 4. Ensure the WIFI2HDMC/WIFI2HDMCGE is powered off.
- Page 10 Update from Version 2.0.0 1. Download the firmware update files from StarTech.com. 2. Unzip the compressed file. 3. Copy install_sp.img from the downloaded folder to the root directory (the parent/top directory) of the USB flash drive. 4. Once the file has been moved to your USB flash drive, rename install_sp.img file to install.img.
- Page 11 8. Release the mode select button after the “Please wait for USB update” appears on your HDMI-enabled display device. The firmware on your WIFI2HDMC/WIFI2HDMCGE will now update. Once the update has completed the new primary launch page will be displayed: Instruction Manual...
- Page 12 Wirelessly Connect using a Miracast-enabled Smartphone or Tablet 1. Set WIFI2HDMC/WIFI2HDMCGE to WiDi/Miracast mode. Press the mode select button until the WiDi / Miracast launch page is displayed. 2. Connect to the WIFI2HDMC using your Miracast-enabled smartphone or tablet. NOTE: Exact steps regarding Miracast setup will vary depending on your device. Please review the documentation included with your smartphone or tablet for steps specific instructions.
- Page 13 3. Scroll through the list and select “AllShare Cast” or “Screen Mirror” (depending on your version of Samsung device). Instruction Manual...
- Page 14 4. Turn AllShare Cast ON and select the device name from the list. By default WIFI2HDMC will be listed as the device name. Tap the device to connect. The smartphone or tablet screen will now be shared on your HDMI-enabled display device.
- Page 15 3. Select “Wireless display” or “Cast screen” (depending on your version of Android). 4. Turn “Wireless display” ON and select the device name from the list. By default WIFI2HDMC will be listed as the device name. Tap the device to connect. The smartphone or tablet screen will now be shared on your HDMI-enabled display device.
- Page 16 2. Launch the WiDi application that is pre-installed on your Wi-Di-enabled computer system. 3. Select WIFI2HDMC from the listed devices below the detected adapters list. 4. Click the “Connect” button. Instruction Manual...
- Page 17 The computer screen will now be shared on your HDMI-enabled display device. Wirelessly Connect using a Computer with Windows 8.1 or Higher Note: Please ensure the drivers for your graphics adapter and wireless adapter are up to date. 1. Launch the “Windows 8 Charms Bar” and select “Devices. ” 2.
- Page 18 4. If you are prompted for a PIN code, enter the PIN code that pops up on the WIFI2HDMC screen and click “Next”. The computer screen will now be shared on your HDMI-enabled display device. For full operational instructions including standard Wi-Fi and LAN screen sharing, please download the full product manual at StarTech.com. Instruction Manual...
-
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
