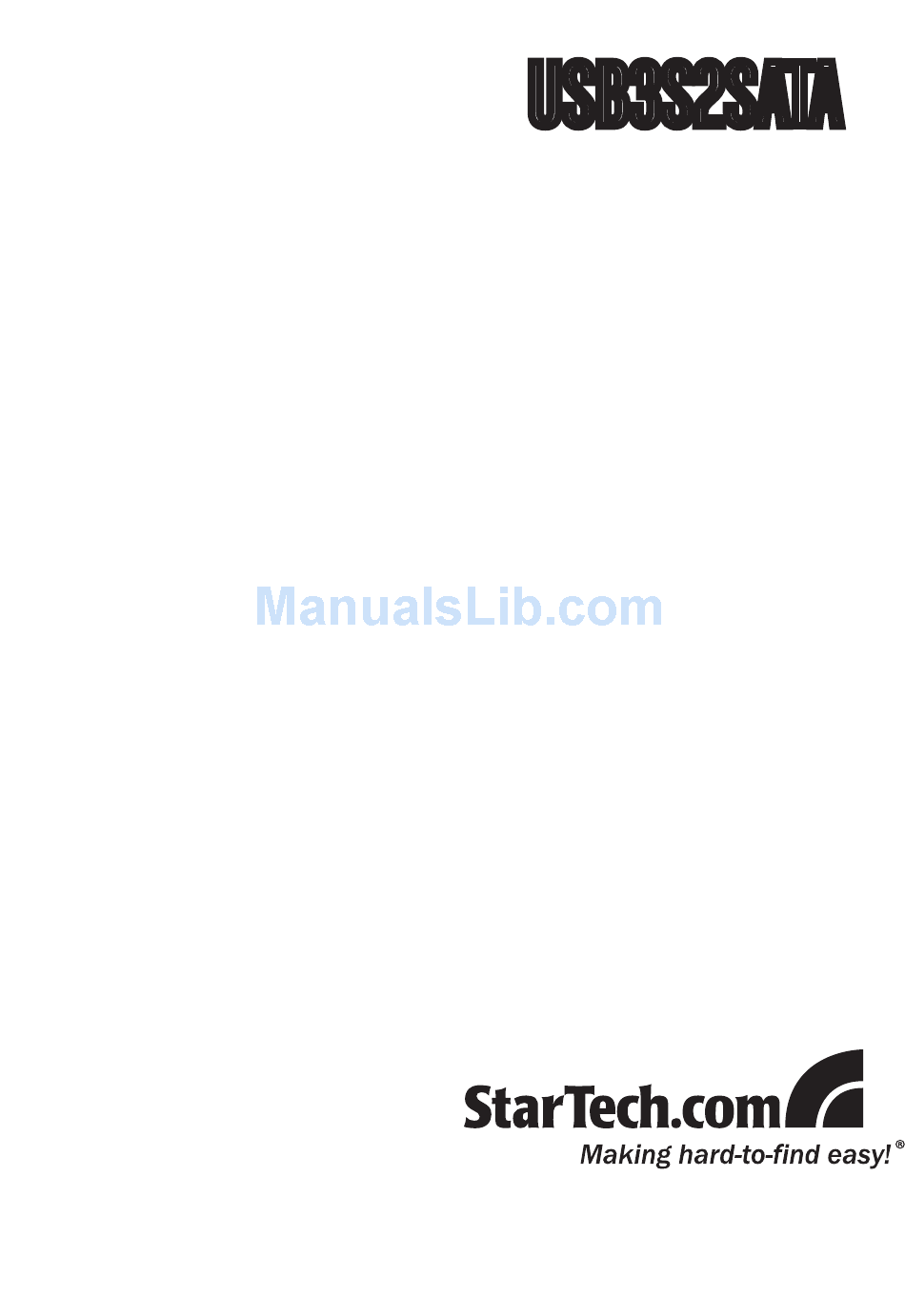

- Page 1 USB3S2SATA Instruction Manual USB 3.0 Hard Drive Adapter SuperSpeed USB 3.0 to SATA Hard Drive Adapter Cable...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Front View ..................2 Rear View ..................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................3 Verifying Installation ..............3 How to Use ..............4 Specifications ..............6 Technical Support ............7 Warranty Information ............ -
Page 4: Introduction
Introduction The StarTech.com USB 3.0 to SATA Adapter Cable connects any standard 2.5” or 3.5” SATA hard drive (HDD)/solid state drive (SSD) to a computer through SuperSpeed USB 3.0. The new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) standard. -
Page 5: Front View

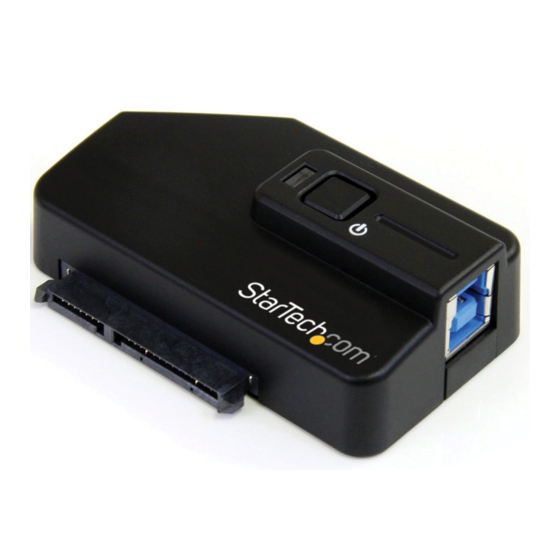

Front View 22-pin SATA connector USB 3.0 type B connector Rear View Power Button Power/Activity LP4 power connector... -
Page 6: Installation
Installation WARNING: Hard drives require careful handling, especially when be- ing transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation Connect a 2.5” or 3.5” SATA HDD/SSD to the 22-pin SATA connector on the adapter. -
Page 7: How To Use
in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Disk Drives” option. A new disk drive should be listed under this category. It will typically contain the make/model of the hard drive you have connected to the adapter. - Page 8 Locate the Disk that says it is “Unallocated” (check hard drive capacity to confirm it’s the correct hard drive) and then right-click in the section that says “Unallocated” and select “New Partition”. The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive.
-
Page 9: Specifications
Specifications Bus Interface USB 3.0 Chipset ID Symwave SW6315 1 x 22-pin SATA Connectors 1 x USB 3.0 type B 1 x 4-pin LP4 power LEDs 1 x Power/Activity Maximum Data Transfer Rate USB3.0: 5Gbps Compatible Hard Drives 2.5”/3.5” SATA HDD/SSD Color Black Power Adapter... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
