C-MODEL C-MODEL
Standard Features
Imagine a uniformly maintained temperature throughout the room without constant adjustment of the thermostat. During
Fan
the "fan-auto" mode, starting at 5 minute then increasing up to 15-minute intervals, the fan automatically samples the air
Sampling
inside the room. If the air is too warm, the unit will automatically cycle into the cooling mode
(SBS Routine)
without thermostat adjustment. This feature for cooling only.
Fan Mode Take advantage of each unit's dual options: select continuous fan operation or cycle the fan ON and OFF with
Switch the thermostat.
Easy
The main components are easily serviced and there is no guessing to determine the problem with our
to Service easy-to-read diagnostics. For example: 2 blinks indicate a blown or missing fuse while 1 blink every
5 seconds means the board is operating correctly. This diagnostic light is visible by removing the front cover.
& LED Diagnostics
Available Filtered Guest's rooms stay cleaner, longer. The ventilation air intake filters outside air to reduce dust and other airborne
Ventilation Air material. The control lever is hidden from occupant's view.
Zero Floor Clearance Unit can be installed flush to the finished floor, if desired. (Some accessories do not have zero clearance).
Electronic Save energy and money by avoiding the extreme settings that can occur with guest operation. The temperature
Temperature limiter allows you to adjust in-room temperature settings within any of 4 pre-programmed
ranges set by you with easy to use dip switches.
Limiter
Avoid troublesome power surges that can damage electrical circuits. Each unit has a random restart circuit to prevent
Random Restart
all units from restarting at one time after power disruption. Random restart occurs in 2-4 minutes.
Compressor Restart Extended compressor-life. The unit automatically delays any restart attempt by three minutes to allow the
Delay refrigerant pressures time to equalize.
Reduced With our STC (Sound Transmission Coefficent) rating of 27, we keep outdoor sounds out-of-doors. By installing
the optional STC30 Rating Accessory Kit, ratings can be increased to STC 30, thereby meeting or exceeding
Outdoor
Sound Transmission most ratings requirements. (Kit ordered separately.)

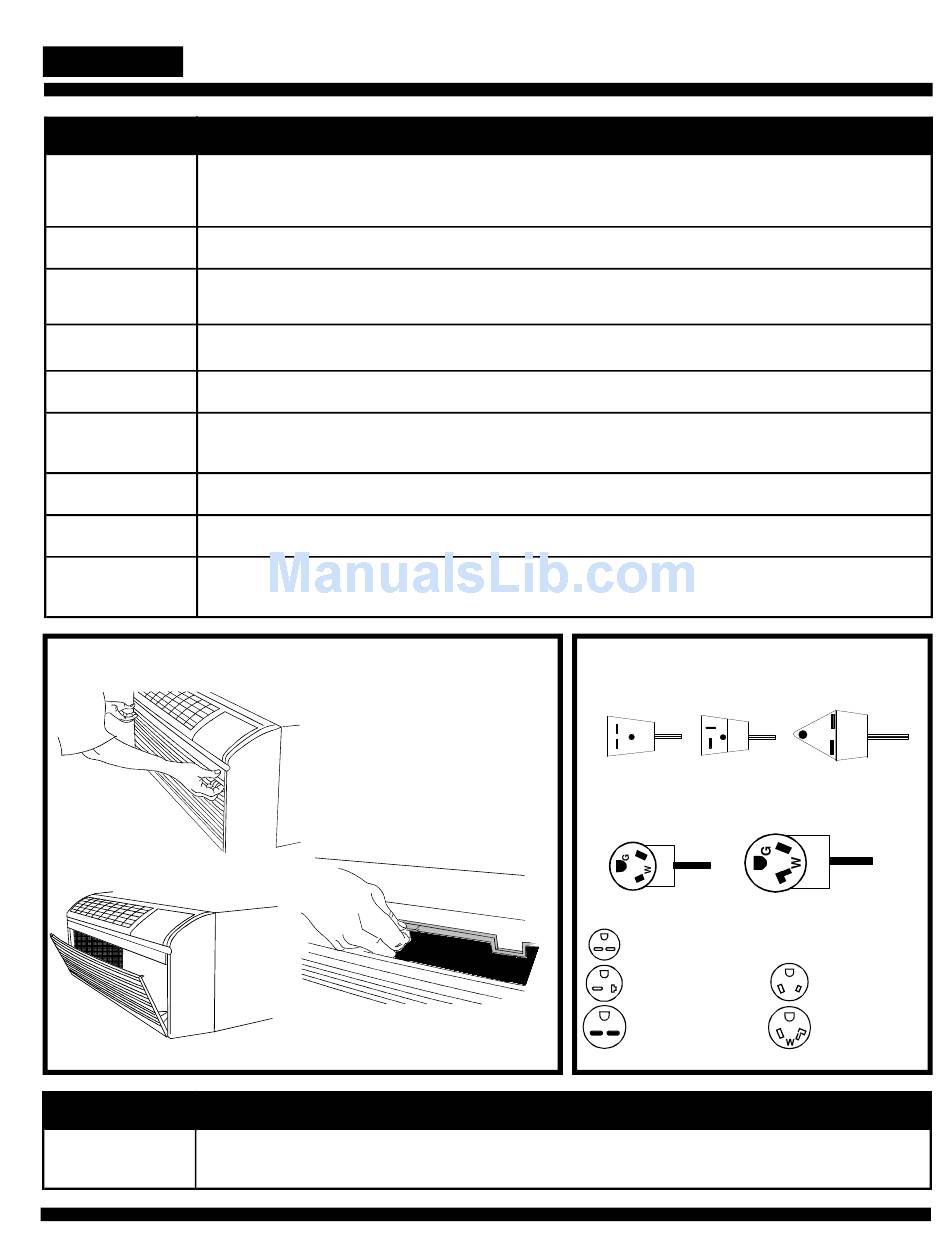

Easy Filter Access
Step 1: Open the intake grille
Step 2: Pull open the intake grille
Optional Accessory
No more worries about changing out non-standard sleeves that do not accommodate the bulk of what the
Wall Sleeve
industry has to offer. Amana's wall sleeve is an industry standard size of 13-3/4" deep x 42" wide x 16-1/16"
13-3/4" x 42" x16-1/16"
high. (Please Note: Wall Sleeve must be ordered separately.)
THE AMANA "STANDARD" ADVANTAGE
Maintaining the unit's effi-
ciency while saving time and
money is as easy as 1-2-3.
The filter is easily accessed for
cleaning or replacement
without removing the unit front.
Step 3: Press down lightly on the thumb tab
at the top of the filter and remove the filter.
C - 3
Advantages and Benefits
15 amp
20 amp
NEMA6-15R; 250V receptacle,
G
used on 230/208V units
G
NEMA6-20R; 250V receptacle,
used on 230/208V units
G
NEMA6-30R; 250V receptacle,
used on 230/208V units
All units come with factory installed power cords.
Advantages and Benefits
Power Cord Plugs
250V Rating Power Cord Plugs
NEMA 6 Configuration
20 amp 30 amp
277V Rating Power Cord Plugs
NEMA 7 Configuration
30 amp
Power Receptacle Configuration
(Field Supplied)
G
NEMA7-20R; 277V receptacle,
used on 265V units
W
G
NEMA7-30R; 277V receptacle,
used on 265V units
