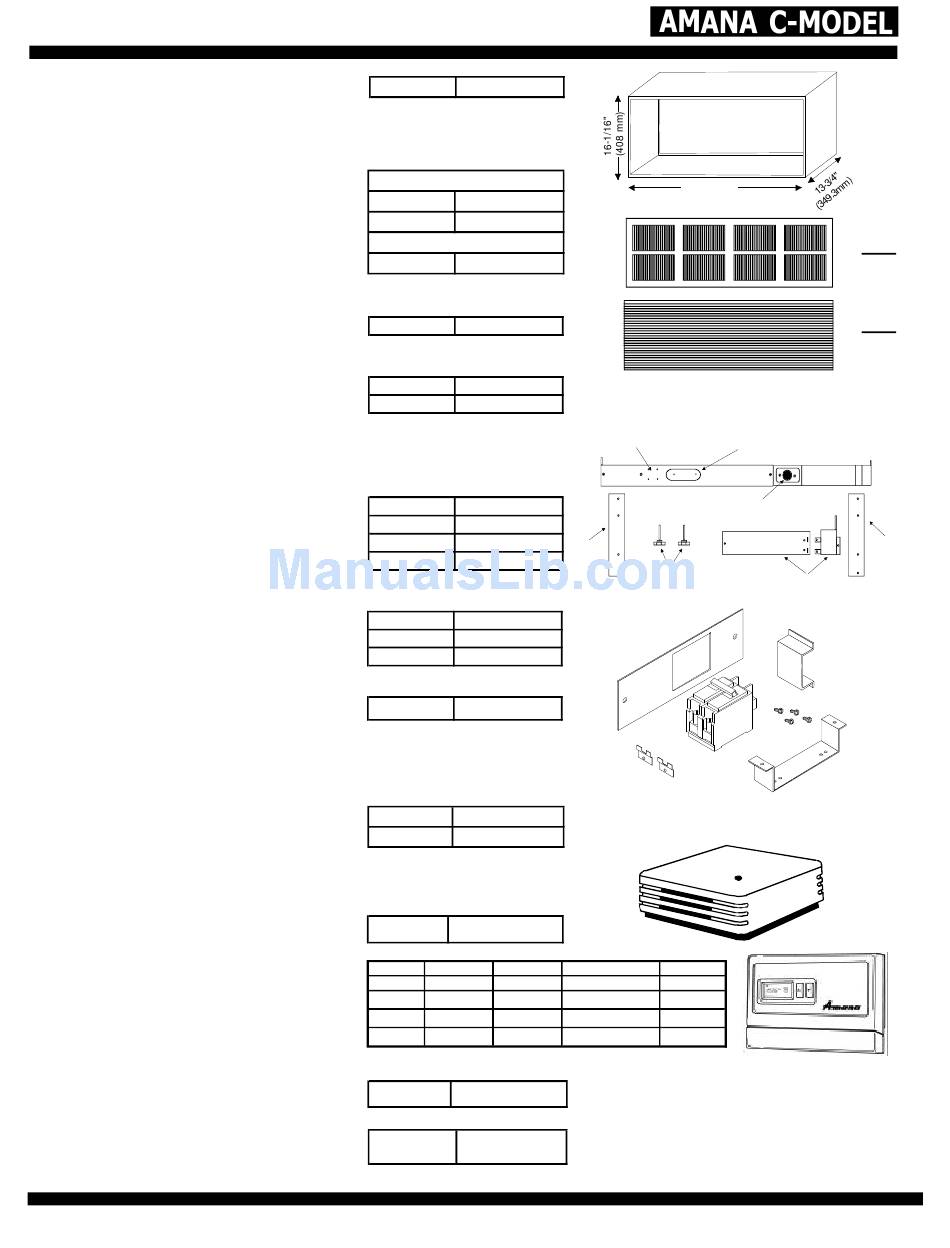

ACCESSORIES
Wall Sleeve
(42" wide x 16-1/16 high x 13-3/4" deep)
Standard insulated wall sleeve fits all Amana Pack-
aged Terminal Units. Shipped separately to allow in-
stallation during construction.
Outdoor Grilles
Available in stamped aluminum and an attractive ex-
truded aluminum architectural grille for application with
WS900B wall sleeve. The architectural grille is avail-
able in anodized natural, 3 stock colors and custom
colors to blend with the building exterior. CB=Clear,
DB=Dark Bronze, ZB=Driftwood, WB=White,
SB=Special (Custom) Color
Hard Wire Kit
(not shown)
Used to permanently wire to chassis when standard
subbase and power cord are not utilized.
Power Disconnect Switch
The PSHW**A power disconnect switch can be used
for 265 or 230/208 volt physical disconnect where re-
quired by local codes. The switch is rated at 30 amp
capacity. The switch is for use with Amana's standard
subbases or PTPWHWK4 Hard Wire Kit.
Subbase Kit
The fully skirted subbase conceals wiring while pro-
viding strong support, if needed. Plug-in receptacle
and field wiring access speeds installation. Electrical
accessories such as fuse holders, circuit breakers and
disconnect switches meet N.E.C. requirements.
Fuse Holder Kit
(not shown)
Cartridge style fuses can be installed in fuse holder for
use in subbase or chassis. Available in 15, 20 and 30
amp. (Included on 265v unit).
Circuit Breaker Kit (230/208v only)
The circuit breaker kit, available in 15, 20 or 30 amp,
can be used with Amana's subbases. It gives over-
current protection and its location allows turning unit
on or off without tools.
External Transformer Kit
40VA transformer to provide additional low voltage
power to accomodate a wide range of energy man-
agement systems or external relays. EXTRK01A and
EXTRK02A are the only approved transformer kits
that can be used.
Remote Temperature Sensor
Allows inexpensive, low voltage temperature sensing
on internal wall for more accurate temperature control.
Thermostats
The following thermostats offer remote control. Any
thermostat other than those listed must be submitted to
Amana for approval prior to use.
Wire Harness Kit
(not shown)
For quick connections of remote thermostat or front desk
with jumpers and connectors.
STC 30 Rating Accessory Kit
Raises sound ratings from 27 to 30 to meet or exceed
most sound test requirements.
WS900B
Standard Outdoor Grille
SGK01B
SGK10B
AGK01*B
PTPWHWK4
(not shown)
PSHW03A
PSHW04A
PTSB320C
PTSB330C
PTSB420C
PTSB430C
FHK315C
FHK320C
FHK330C
CBK3**C
(not shown)
EXTRK01A
EXTRK02A
RTS02
Model
C5200609
D9945801
20189101
1213410
NOTE: DO NOT CONNECT THE X1 TERMINAL.
PWHK01B
(not shown)
STC101A
Wall Sleeve
Single Pack
Ten Pack
Architectural Grille
Single Pack
Hard Wire Kit
230/208V
265V
230/208V 15/20A
230/208V 30A
265V 15/20A
Skirting
265V 25A
230/208V 15A
230/208V 20A
230/208V 30A
Circuit Breaker Kit
208/230V
265V
Remote
Temperature Sensor
Heat Stages Cool Stages Programmable
1 1
2
1
2 No
1 (Auto Changeover)
2 1
Wire Harness Kit
STC 30 Rating
Accessory Kit
C - 6
AMANA C-MODEL
42"
(1066.8mm)
Optional
Optional
Fuse Holder
Power Switch and Circuit Breaker
Location Location
Power Receptacle
Leveling Legs
Subbase Box Assembly
Shape
No Round
No Rectangle
Rectangle
Yes Rectangle
Note: Thermostats listed are manual changeover
with the exception of 20189101
SGK
AGK
Skirting
