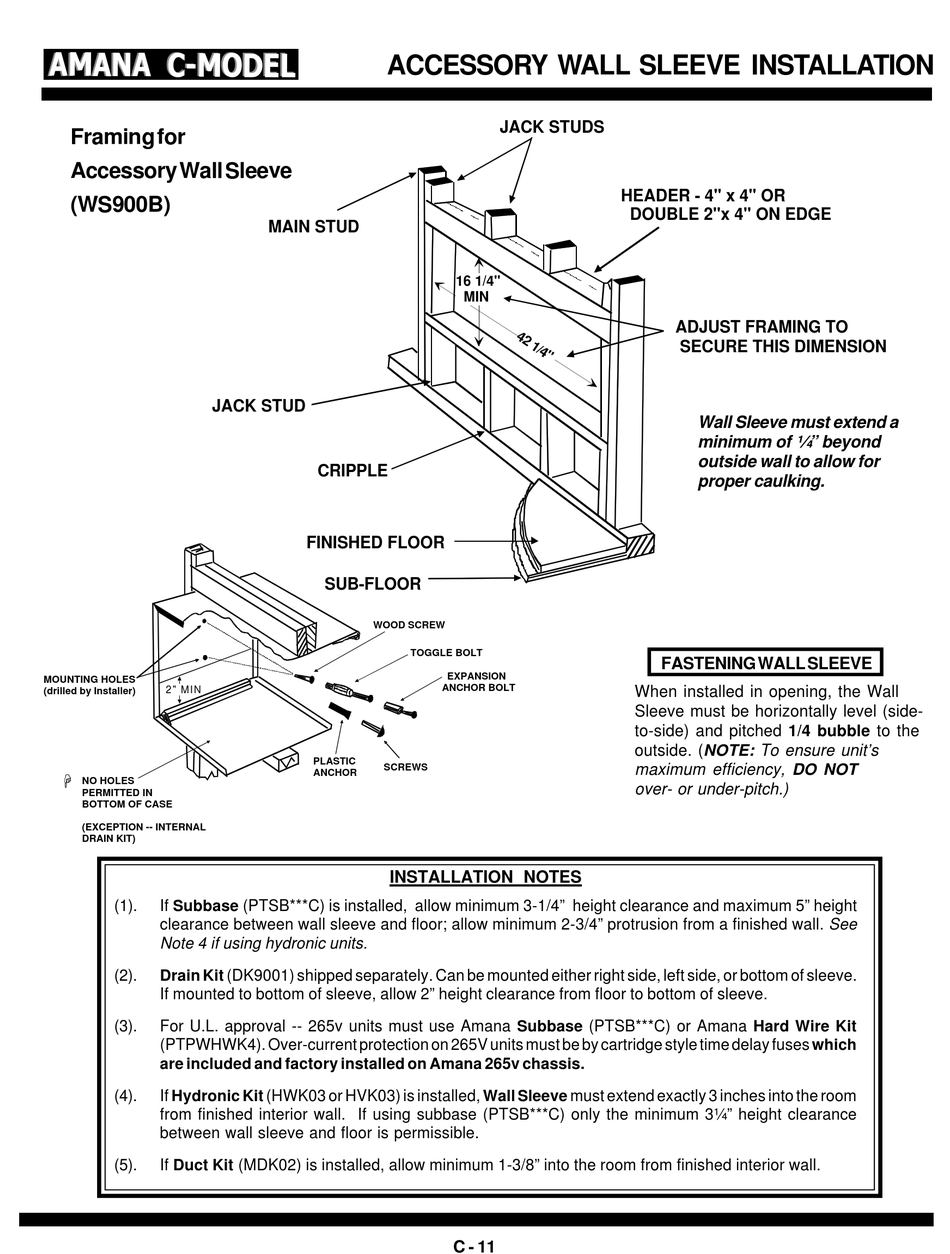

AMANA C-MODEL
Framing for
Accessory Wall Sleeve
(WS900B)
JACK STUD
MOUNTING HOLES
2 " MIN
(drilled by Installer)
H
NO HOLES
PERMITTED IN
BOTTOM OF CASE
(EXCEPTION -- INTERNAL
DRAIN KIT)
(1). If Subbase (PTSB***C) is installed, allow minimum 3-1/4" height clearance and maximum 5" height
clearance between wall sleeve and floor; allow minimum 2-3/4" protrusion from a finished wall. See
Note 4 if using hydronic units.
(2). Drain Kit (DK9001) shipped separately. Can be mounted either right side, left side, or bottom of sleeve.
If mounted to bottom of sleeve, allow 2" height clearance from floor to bottom of sleeve.
(3). For U.L. approval -- 265v units must use Amana Subbase (PTSB***C) or Amana Hard Wire Kit
(PTPWHWK4). Over-current protection on 265V units must be by cartridge style time delay fuses which
are included and factory installed on Amana 265v chassis.
(4). If Hydronic Kit (HWK03 or HVK03) is installed, Wall Sleeve must extend exactly 3 inches into the room
from finished interior wall. If using subbase (PTSB***C) only the minimum 3¼" height clearance
between wall sleeve and floor is permissible.
(5). If Duct Kit (MDK02) is installed, allow minimum 1-3/8" into the room from finished interior wall.
ACCESSORY WALL SLEEVE INSTALLATION
MAIN STUD
CRIPPLE
FINISHED FLOOR
SUB-FLOOR
WOOD SCREW
TOGGLE BOLT
EXPANSION
ANCHOR BOLT
PLASTIC
SCREWS
ANCHOR
INSTALLATION NOTES
JACK STUDS
HEADER - 4" x 4" OR
DOUBLE 2"x 4" ON EDGE
16 1/4"
MIN
C - 11
ADJUST FRAMING TO
SECURE THIS DIMENSION
Wall Sleeve must extend a
minimum of ¼" beyond
outside wall to allow for
proper caulking.
FASTENING WALL SLEEVE
When installed in opening, the Wall
Sleeve must be horizontally level (side-
to-side) and pitched 1/4 bubble to the
outside. (NOTE: To ensure unit's
maximum efficiency, DO NOT
over- or under-pitch.)
