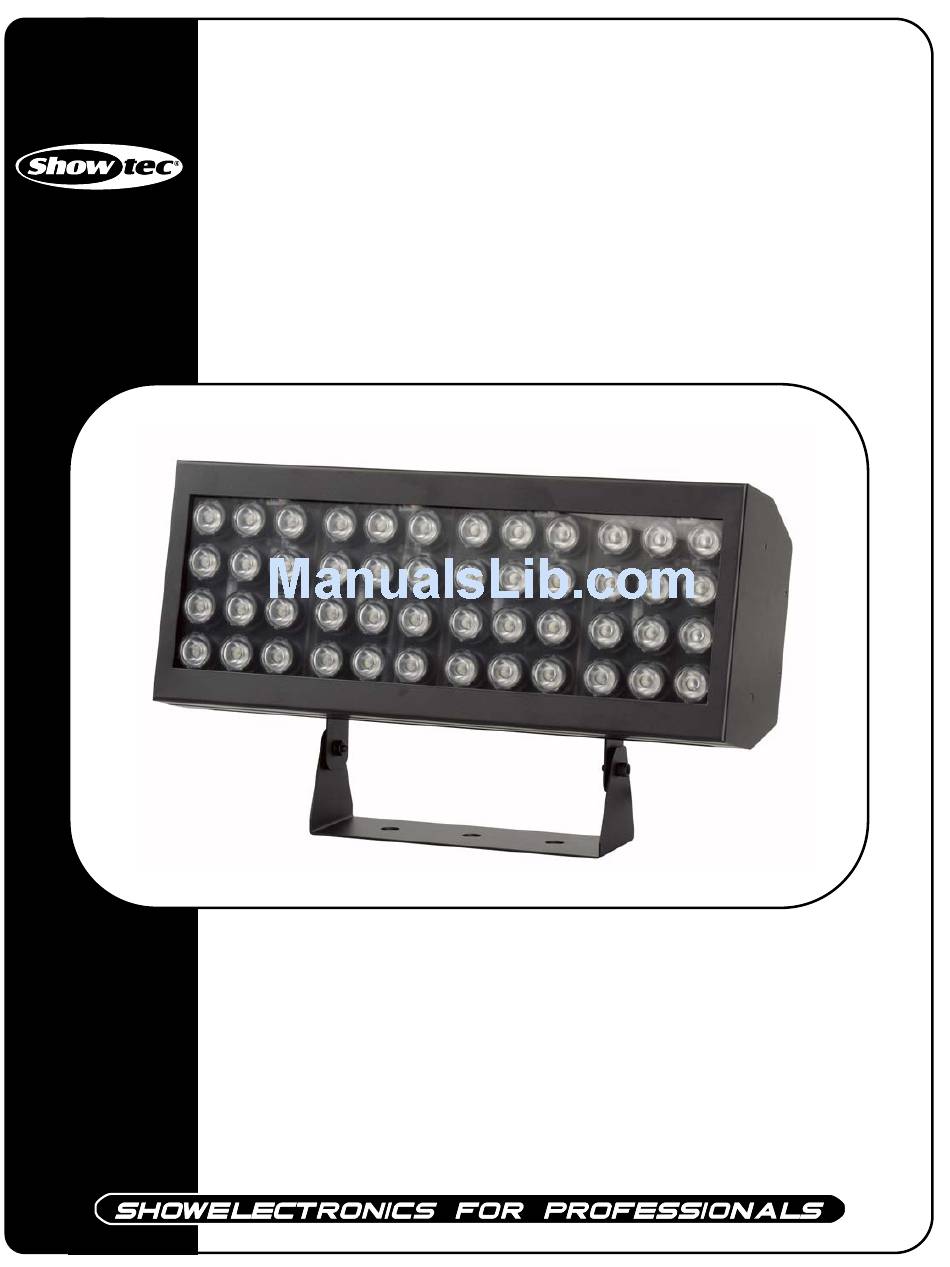

- Page 1 LED PowerBank 48 ORDERCODE 41310...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED PowerBank 48 Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Set Up and Operation..............……..…………………………….…… Stand-alone with DMX connected …….……………………………………………………….…….……… Stand-alone without DMX connected….……………………………………………………….…………… Operation…………..…………..…………………………………………………………….……...…… Maintenance...................………..………….…….……………… Changing the Fuse................…………………….………….……… Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features LED PowerBank 48 is a LED system from Showtec. • Ultra bright LED • First grade aluminum body construction, sturdy yet light • Unlimited colors • Low power consumption • Long life, over 100,000 hours •... -
Page 7: Backside
Backside Fig. 2 1) Power LED 2) DMX Signal LED 3) Speed 4) Dip Switches Address Setting 5) Dip-switches for Stand-alone/DMX 6) 5-pin DMX signal connector (OUT) 7) 5-pin DMX signal connector (IN) 8) 3-pin DMX signal connector (OUT) 9) 3-pin DMX signal connector (IN) 10) Safety eye 11) ON/ OFF 12) IEC Connector + Fuse... -
Page 8: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Note : Link all cables before connecting electric power. FUNCTIONS: There are 3 options for using the LED Powerbank: Stand-alone with DMX connected... -
Page 9: Dmx Operation
In order to receive a DMX signal, the controller must be attached to a DMX controller by a 3-pin DMX cable and the DMX controller must be turned on. The LED PowerBank 48 system can operate as a 12-, 6-, or 3-channel DMX fixture. Select DMX Mode 1, 2, or 3 as described on the facing page. -
Page 10: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED PowerBank 48, as this may damage the unit and the warranty will become void. -
Page 11: Product Specifications
Product Specification Model: Showtec LED PowerBank 48 Beam Angle: 25 ° 48 LEDs (16 Red, 16 Green, 16 Blue) Lenses: Clear tempered glass. Housing: Aluminum body in black Data connector: 5-pin XLR Maximum temperature: +50°C Lifetime: 100,000 hours Dimensions: 400 x 120 x 165 mm (LxWxH) Weight: 5.3 Kg...
