MANUAL
ENGLISH
Stage Blinder 4 LED
V1
Order code: 30783
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stage Blinder 4 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SHOWTEC Stage Blinder 4 LED

  • Page 1 MANUAL ENGLISH Stage Blinder 4 LED Order code: 30783 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Stage Blinder 4 LED Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the Mains ............................5 Return Procedure ................................5 Claims ....................................5 Description of the Device ..............................6 Front View ..................................
  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Stage Blinder 4 LED ● Pro power to Schuko power cable (1,5 m) ●...
  • Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 5: Operating Determinations

    The Stage Blinder 4 LED can be placed on a flat surface or fitted to any kind of truss with a clamp. Improper installation can cause serious damage to people and property!
  • Page 6: Connection With The Mains

    Stage Blinder 4 LED Connection with the Mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER...
  • Page 7: Description Of The Device

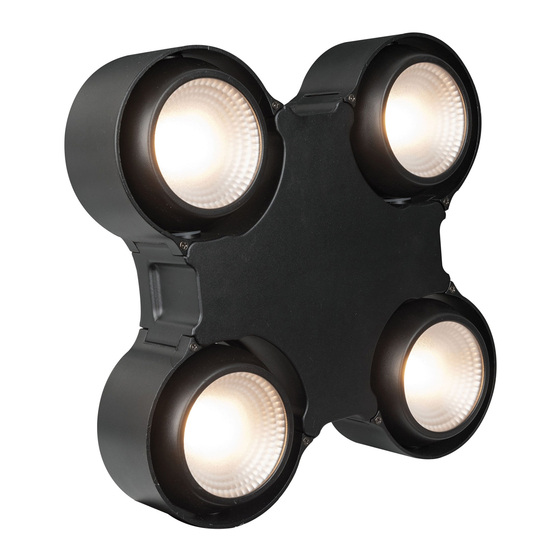

    Description of the Device Features The Showtec Stage Blinder 4 LED is an audience blinder with 4 single pods. Each pod can be controlled separately by DMX and holds an 80-Watt Dual White COB. It has compact design and features tungsten simulation.
  • Page 8: Front View

    Stage Blinder 4 LED Front View Fig. 01 01) LED pod 02) Mounting bracket Back View Fig. 02 03) Control panel 04) Cooling fan 05) 3-pin DMX signal connector OUT 06) 3-pin DMX signal connector IN 07) Cooling fan 08) Pro power connector OUT (gray)
  • Page 9: Installation

    Stage Blinder 4 LED Installation Remove all packing materials from the Stage Blinder 4 LED. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.
  • Page 10: Multiple Stage Blinders (Dmx Control)

    Stage Blinder 4 LED Multiple Stage Blinders (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,8 meter on all sides for air circulation. 02) Always use a safety cable (order code 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket.
  • Page 11: Fixture Linking

    Stage Blinder 4 LED Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all fixtures on a serial data link determines the number of fixtures the data link can support.
  • Page 12: Control Panel

    Stage Blinder 4 LED The Stage Blinder 4 LED can be operated with or without a controller. Control Panel A) MENU button UP button C) DOWN button D) ENTER button OLED display Fig. 04 DMX Addressing The fixtures are individually addressed on a data-link and connected to the controller.
  • Page 13: Menu Overview

    Stage Blinder 4 LED Menu Overview Order code: 30783...
  • Page 14: Main Menu Options

    Stage Blinder 4 LED Main Menu Options Upon start-up the display will show a splash screen with the Showtec logo and immediately afterwards: After 2 seconds, the display will show the start screen: The start screen provides the following information:...
  • Page 15: Dmx Address

    Stage Blinder 4 LED The Main Menu has the following options: Press the UP/DOWN buttons to navigate through the Main Menu. Press the ENTER button to open the submenu. 1. DMX Address In this menu you can set the device’s DMX starting address.
  • Page 16: Selection Mode

    Stage Blinder 4 LED 4. Selection Mode In this menu you can select the sequence in which the 4 LED pods will light. 01) Press the UP/DOWN buttons to choose the desired mode. There are 4 options available: 02) Press the ENTER button to confirm your choice.
  • Page 17: Auto Show

    Stage Blinder 4 LED 7. Auto Show The Stage Blinder 4 LED has 6 built-in auto show programs. 01) Press the UP/DOWN buttons to select one of the 6 built-in show programs. 02) Press the ENTER button to adjust the speed of the selected built-in show program.
  • Page 18: Dmx Channels

    Stage Blinder 4 LED DMX Channels 1 Channel Channel 1 – Dimmer LED pods 1-4 No light output 1-255 Gradual adjustment of the brightness, from low to high intensity (0-100%) 2 Channels Channel 1 – Dimmer LED pods 1-4 No light output...
  • Page 19: Channels

    Stage Blinder 4 LED 5 Channels Channel 1 – Dimmer LED pod 1 No light output 1-255 Gradual adjustment of the brightness, from low to high intensity (0-100%) Channel 2 – Dimmer LED pod 2 No light output 1-255 Gradual adjustment of the brightness, from low to high intensity (0-100%) Channel 3 –...
  • Page 20: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Stage Blinder 4 LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
  • Page 21 Stage Blinder 4 LED Problem Probable cause(s) Remedy ● Check if power is switched on and One or more No power to the fixture cables are plugged in fixtures do not function at all Primary fuse blown ● Replace the fuse...
  • Page 22: Product Specifications

    Stage Blinder 4 LED Product Specifications Model: Showtec Stage Blinder 4 LED Input voltage: 100-240 V AC, 50/60Hz Power consumption: 320 W Fuse: T3A, 250 V Dimensions: 385 x 385 x 322 mm (L x W x H) (including bracket)
  • Page 23: Dimensions

    Stage Blinder 4 LED Dimensions Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.com Order code: 30783...
  • Page 24 ©2019 Showtec...
