Summary of Contents for SHOWTEC 41370 Micro Spot

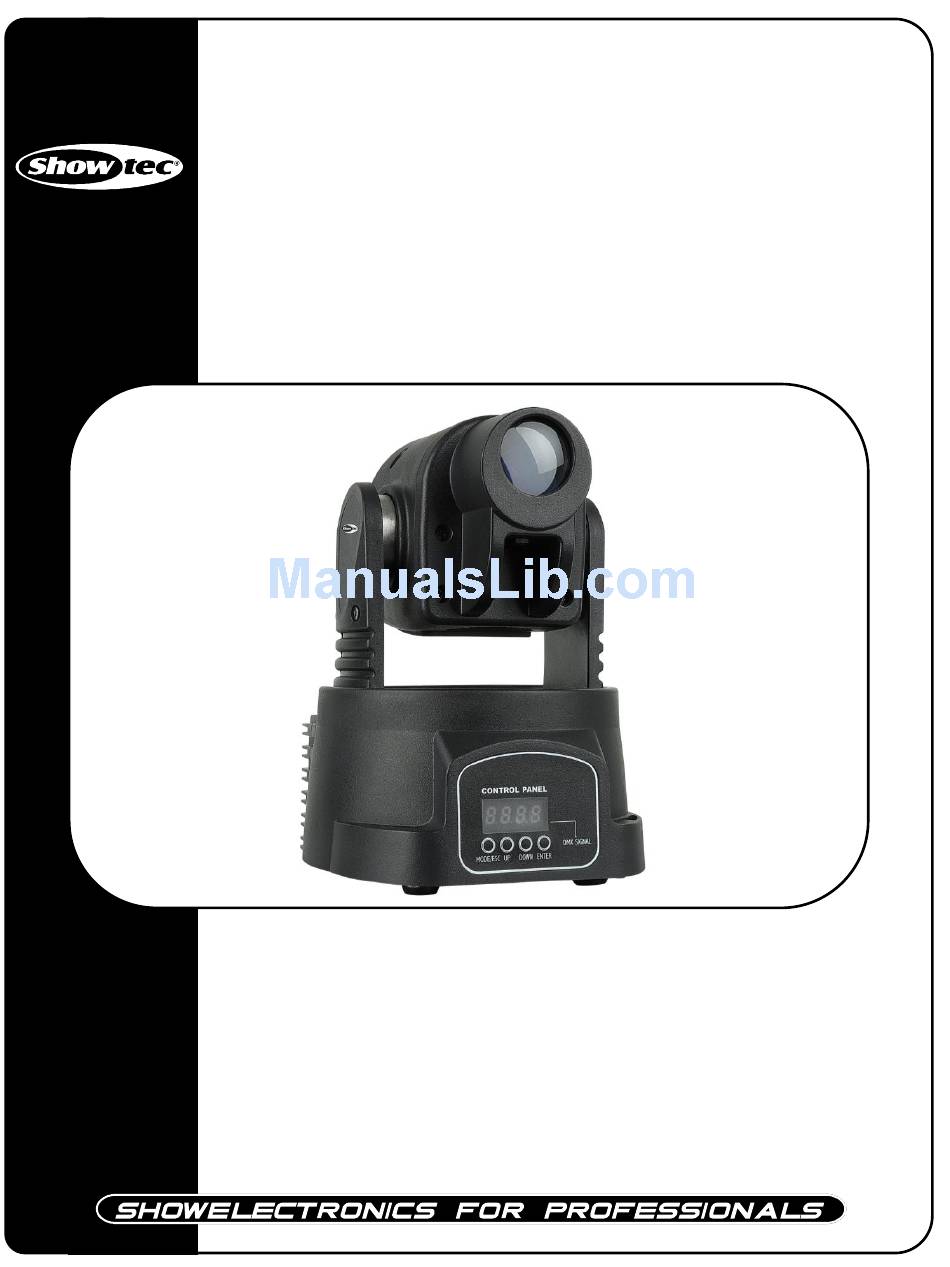

  • Page 1 Micro Spot ORDERCODE 41370...
  • Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Micro Spot brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.

  • Page 3: Table Of Contents

    Showtec Showtec Micro Spot Product Guide ™ Warning..…...................……………………………………….……………….. Safety-instructions…………………………………………………………………………………………………………. Operating Determinations………………………………………………………………………………………………. Rigging………………………………………………………………………………………………………………………. Description..…................……….………………………………………….……. Features and Overview ………………………………...….……………….………….………………….…………….. Backside…………………………………………………...…...….……………….…………………...….………………. Set Up and Operation..............……..……………………………….……………… One Micro Spot..............………………………………………………………….…. Multiple Micro Spots..............……………………………………………………… DMX-Protocol…...........………………………………………………………………....5 Channel Mode………………………………………………………………………………………………………….. 13 Channel Mode………………………………………………………………………………………………………… Control Panel….....……........…………………………………………………………………... Control Mode........………………………………………………………………………………… addressing........………………………………………………………………………………….

  • Page 4: Warning

    WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 5: Operating Determinations

    The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 6: Rigging

    Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
  • Page 7 Mounting a clamp to the underside of the Micro Spot Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable...

  • Page 8: Description

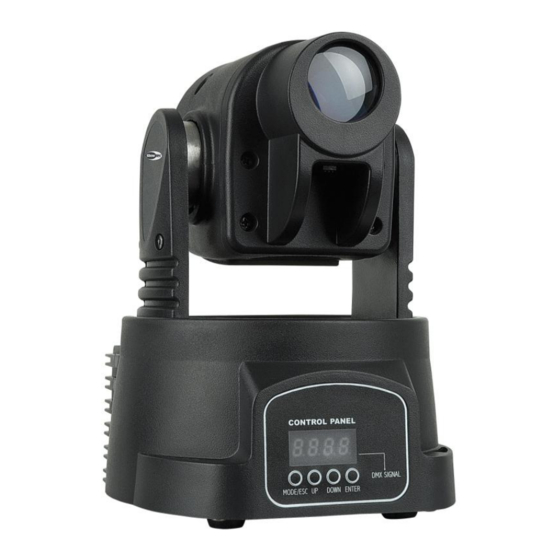

    Description of the device Features The Showtec Micro Spot is a moving-head with high output and great effects. • Gobo wheel with 9 gobo’s and rainbow function • 15X 1 watt LED (5x Red, 5x Green, 5x Blue) • RGB Colour mixing system •16 bit pan/tilt resolution...

  • Page 9: Backside

    Backside Fig. 2 3 4 5 IEC Connector + Fuse 1A/250V DMX signal connector (IN) 4) Remote control DMX signal connector (OUT)

  • Page 10: Set Up And Operation

    Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One Micro Spot 1.

  • Page 11: Dmx-Protocol

    DMX Protocol 5 Channel Mode Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT).

  • Page 12: 13 Channel Mode

    13 Channel Mode Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 - Pan fine 16 bit Channel 3 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT).
  • Page 13 Channel 11 – LED Speed 0-255 Color change with from fast to slow Channel 12 – Auto Program No Function 8-22 Auto Program 1 23-37 Auto Program 2 38-52 Auto Program 3 53-67 Auto Program 4 68-82 Auto Program 5 83-97 Auto Program 6 98-112...

  • Page 14: Control Panel

    The Micro Spot can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel When the indicator light is on, means the Micro Spot is working. Fig. 4 Control Mode The fixtures are individually addressed on a data-link and connected to the controller.

  • Page 15: Functions Control Panel

    MODE 1: as default mode. Receive DMX512 signal, set the desired address via the UP/DOWN buttons. DMX mode: select channel 1 - channel 512 MODE 2: press the MODE/ESC button until the display shows and set the desired function via UP/DOWN buttons, as master auto mode.
  • Page 16 MODE 7: Select the scan angle for PAN. (just for Master/Slave and sound control) Press the MODE/ESC button until the display shows Select the desired function using the UP/DOWN buttons. Press the ENTER button confirm the function and the display will shows “DMX” or “MASTER/SLAVE” mode that you selected before.

  • Page 17: Stand-Alone Mode

    Static gobo-wheel This static gobo-wheel has 9 gobos and open. Shutter/Dimmer/Strobe The dimming (0-100%) is provided by a simple mechanical shutter unit. This unit may also be used for strobe effect (1-10 flashes per second). Stand-alone Mode The fixtures on a data-link are not connected to the controller, but can execute pre-set programs, which can be different for every fixture.

  • Page 18: Static Gobowheel

    3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Micro Spot requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced.

  • Page 19: Replacing The Fuse

    Response: Suspect three potential problem areas: the power supply, the lamp, the fuse. 1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The LEDs. Return the device to your Showtec dealers. 3. The fuse. Replace the fuse. See page 17 for replacing the fuse.
  • Page 20 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more And cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...

  • Page 21: Product Specifications

    Product Specification Model: Showtec Micro Spot Voltage: 240V-50Hz (CE) Power: 50W Fuse: 1A / 250V Dimensions: 175x175x225mm (LxWxH) Weight: 3,74 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel...
