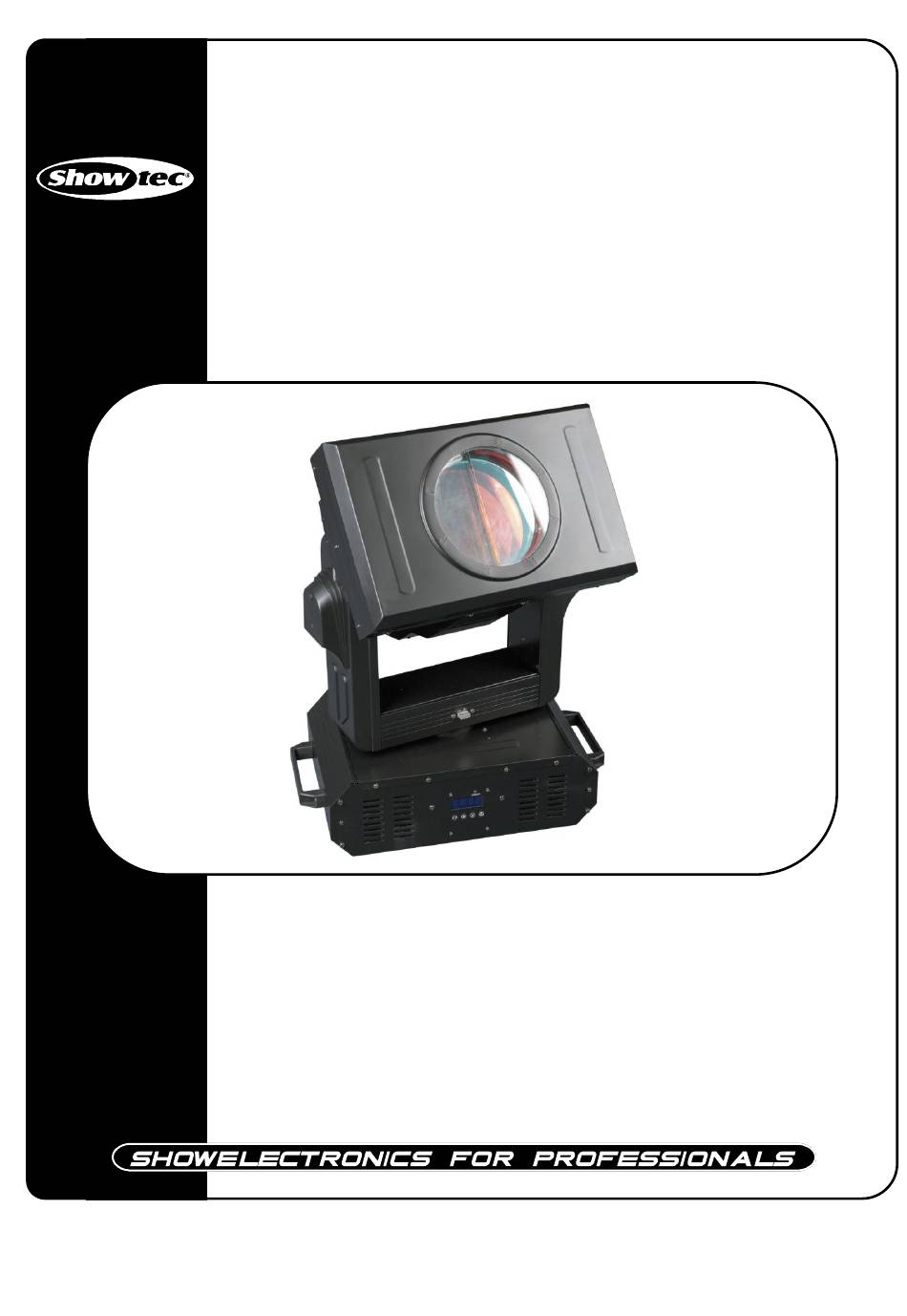

- Page 1 SpaceTracer 2000 CMY ORDERCODE 40961...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec SpaceTracer 2000 CMY brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec SpaceTracer 2000 CMY Product Guide ™ Warning.................…...……………..…………………………….………..….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.……………………………………………………………………………………………… Rigging.……………………………………………………………………………………………………………………… Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….……….……….……………… Installation................…...…………………………………………………...…. Installing the Lamp ............…………………………………………………………..Lamp Adjustment.…............………………………………………..…….……………… Locking the Head and Base..........………………………………………..…….…………… Set Up and Operation..............……..……………………………………………… One SpaceTracer................………………………………………..………….. Multiple SpaceTracers................…………………………….………………... DMX Protocol………...........…………………………………………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Description
Description of the device Features The Showtec SpaceTracer 2000 CMY is an immensely powerful SpaceTracer. • Power consumption: 2300 Watt • Master-slave • DMX-512 • DMX connector: 3 pole XLR male, female • Channels: 14 • CMY colour changer frame •... -
Page 8: Installation
Installation Installing the Lamp The Showtec SpaceTracer 2000 CMY uses the XOB 2000W Xenon (ordercode 82640) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. - Page 9 3. Open up all glass frost lenses. 4. Open up all color filters. 5. Remove the small spring. 6. Now go to the bottom of the head. 7. Remove the small socket screw bolt on the 8. Pull the lamp out of the socket. bottom of the lamp.
- Page 10 The broken lamp must be placed in a safe spot, so it cannot fall or break, because of danger of explosion. The lamp is chemical waste and may not be thrown away. Bring this lamp to a designated collect point for chemical waste. When installing the new lamp, pay attention to the polarity of the lamp.
-
Page 11: Lamp Adjustment
Lamp Adjustment You can adjust the lamp’s position by turning the screw on the backside of the Sky Spot. The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light does not seem to be evenly distributed within the ray of light. -
Page 12: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One SpaceTracer 1. -
Page 13: Dmx Protocol
DMX Protocol Channel 1 – Reset - Dimmer intensity Reset after 5 seconds 4-255 Gradual adjustment dimmer intensity from 0-100% Channel 2 – Shutter, strobe Shutter open 5-253 Strobe effect from slow to fast 254-255 Shutter open Channel 3 – Zoom 0-255 Continuous adjustment from small to big Channel 4 –... -
Page 14: Control Panel
Control Panel When the indicator light is on, means the SpaceTracer is working. Fig. 4 A. Display D. Down Button B. LED E. Up Button C. [EXIT] Button F. [M/ENTER] Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. -
Page 15: Control Panel
Overview Control Panel Functions Press Exit to return to the main menu... -
Page 16: Menu Functions Explained
Menu Functions Explained DMX Address selection Reset unit, the display will show for 30 seconds Working Speed selection 80% of the working speed Maximum working speed Channel selection 16-bit available for Pan (X) and Tilt (Y) 16-bit not available for Pan (X) and Tilt (Y) Channel Test selection. -
Page 17: Addressing
4. The electric power supply cables must not show any damages or material fatigue. The Showtec SpaceTracer 2000 CMY requires almost no maintenance. However, to keep luminous flux rate at a high level, you must clean the lamp with a soft cloth or cotton stick to wipe the mirrors. -
Page 18: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. -
Page 19: Product Specifications
Product Specification Model: Showtec SpaceTracer 2000 CMY Voltage: 240V-50Hz (CE) Power consumption: 2300 Watt Master-slave, standalone control DMX-512 DMX connector: 3 pole XLR male, female Channels: 14 CMY colour changer frame Automatic mechanic dimmer Electronic shutter Automatic Frost filter Electronic beam adjustment 30%- 100% Pan: 360°...
