Summary of Contents for ETS-Lindgren 3167

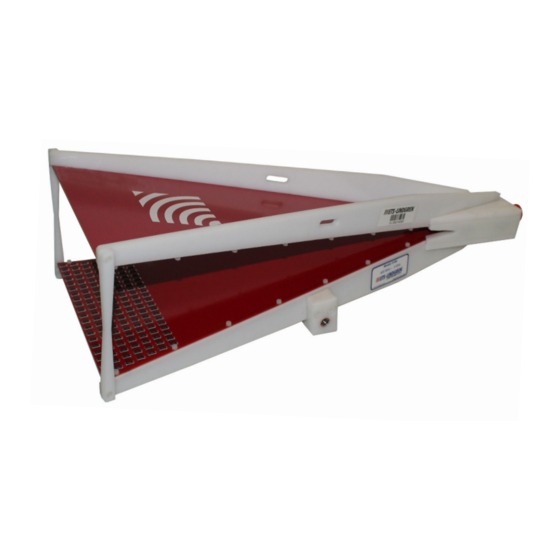

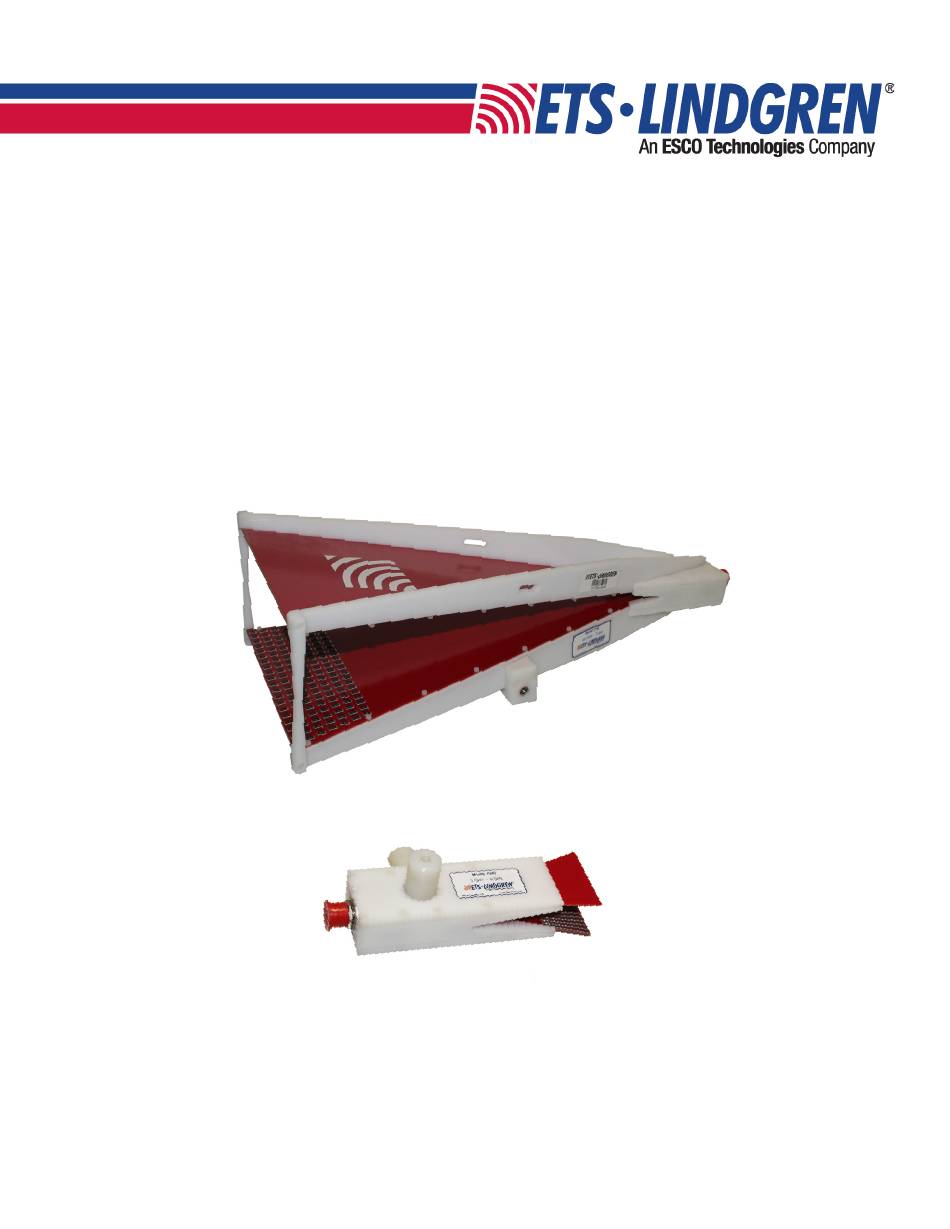

- Page 1 TEM Horn Antennas Models 3166 and 3167 User Manual October 2018 399387 Rev A...
- Page 3 All trademarks are the property of their respective owners. © Copyright 2018 by ETS-Lindgren Inc. All Rights Reserved. No part of this document may be copied by any means without written permission from ETS-Lindgren Inc.
-
Page 5: Table Of Contents
3166 VSWR ....... . 11 3167 VSWR ....... . 11 3166 Forward Power . -
Page 6: General Safety Considerations
You should provide uninterruptible safety earth ground from the main power source to the product input wiring terminals, power cord, or supplied power cord set. See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information. GENERAL SAFETY CONSIDERATIONS... -
Page 7: Introduction
3166 model operates from 380 MHz to 3 GHz with less than 7:1 VSWR from 400 MHz to 700 MHz and 3:1 VSWR from 700 MHz and above. The 3167 operates from 3 GHz to 6 GHz with less than 2:1 VSWR. -
Page 8: Maintenance
Following are the part numbers for ordering replacement or optional parts for the Model 3167. Part Description Part Number 4-TR Tripod 4-TR Post Mount 121268 Service Procedures For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment. -
Page 9: Specifications
21.6 cm (8.5 in) Depth 47.6 cm (18.75 in) Height 13.2 cm (5.2 in) Approximate Weight 3.6 kg (8 lb) 3167 Electrical Specifications Application IEC / EN 61000-4-39 Frequency Range 3 GHz to 6 GHz VSWR Maximum Continuous Power 250 W Impedance (Nominal) 50 Ω... -
Page 10: Mounting Instructions
1/4 - 20 receptacle, insert the 1/4 - 20 thread insert into the polarizing adapter. Attach the 4-TR Mount, 3166 Retro to tripod. 3167 Mounting Adapters The Model 3167 TEM Horn Antenna ships with 2 post mount adapters attached to the antenna: • 121268 Post Mount with... -
Page 11: Typical Data
TYPICAL DATA 3166 VSWR 3167 VSWR... -
Page 12: 3166 Forward Power
3166 Forward Power 3167 Forward Power... -
Page 13: Field Uniformity
FIeld Uniformity... -
Page 16: Minimum Field Uniformity Grid Dimensions
Minimum Field Uniformity Grid Dimensions The following table lays out the minimum grid dimensions in x and y directions that will satisfy the -4 dB Field Uniformity requirement as per IEC / EN 61000-4-39 standard. Measured Dimensions Freq (MHz) Min x (cm) Min y (cm) 1000 1500... -
Page 17: Appendix A: Warranty
Appendix A: Warranty See the Product Information Bulletin included with your shipment for the complete ETS Lindgren warranty for your Model 3166 or Model 3167 TEM Horn Antenna. DURATION OF WARRANTIES FOR MODELS 3166 AND 3167 TEM HORN ANTENNAS All product warranties, except the warranty of title, and all remedies for warranty failures are limited to one year.
