Rear vent installation:

For venting into a masonry or a back standing steel chimney through the top vent the top horizontal
portion of a single wall connector pipe can be located not closer than 18" below a combustible ceiling.
From the factory the stove is prepared for top mounting of the flue collar, but all SCAN stoves have an
optional flue outlet, therefore the flue collar can be fitted either on the top or at the rear as required.
Mounting the flue collar for rear outlet
Remove the cover plate on the rear of the stove
Remove the inner cover plate (cooking ring) by means of the hexagon spanner.
The flue collar is fitted from the outside into the discharge hole of the firebox in such a way that the
bracket is located on the inside.
Place the cooking ring on top so that this is level with the top plate.

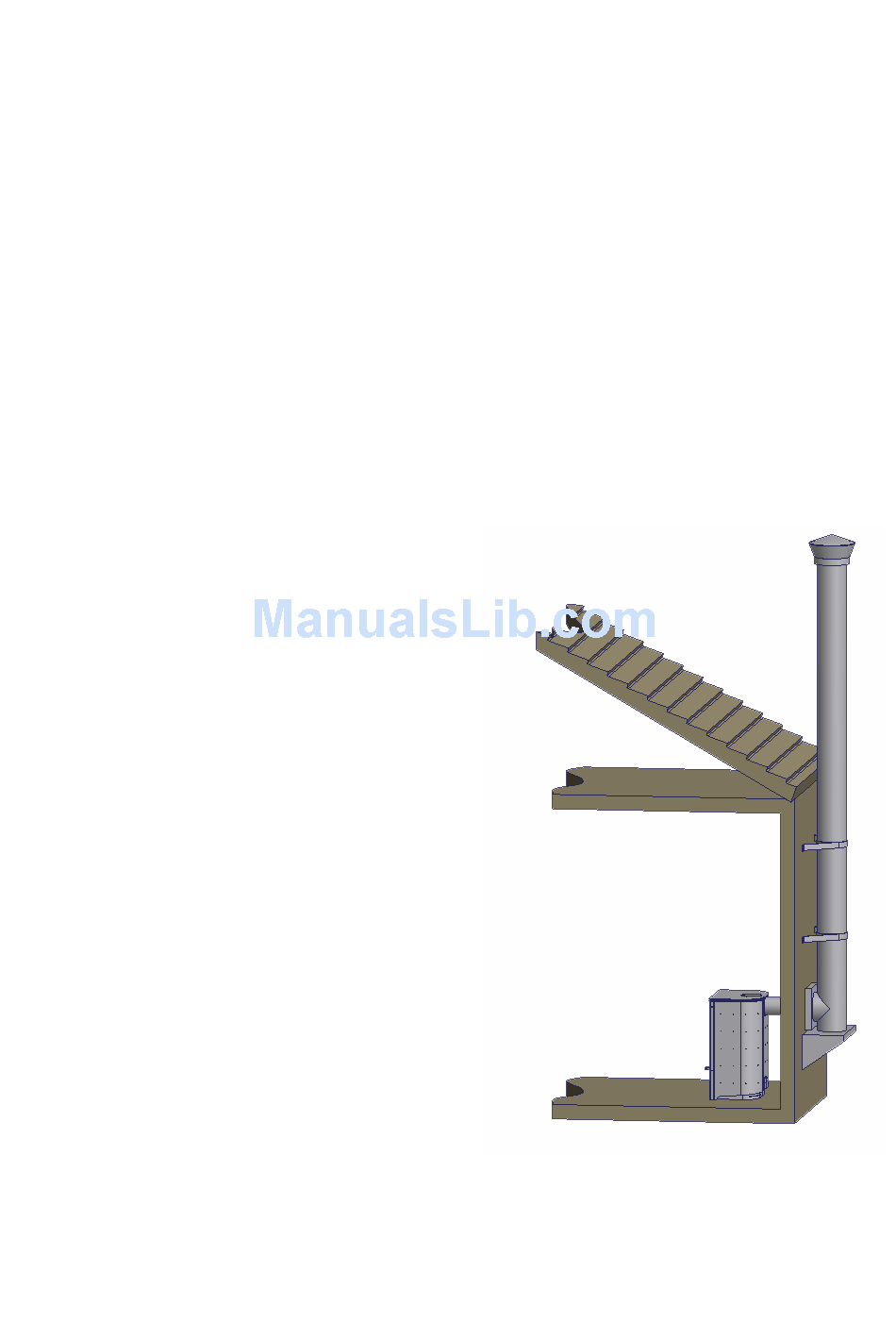

Rear venting into a masonry or steel chimney through a thimble or other vent configuration than
descript here must follow local codes or NFPA 211 or CAN/CSA-B365 guidelines and
Required installation components:
•
Chimney cap
•
Insulated chimney
•
Tee section
•
Tee support bracket
•
Chimney connector pipe
•
Wall thimble
•
Wall strap
11
methods.
