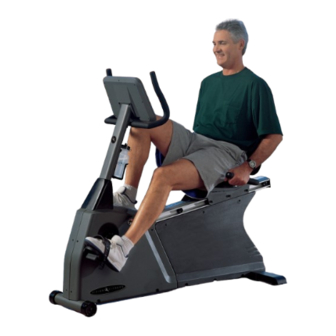

Vision Fitness R2600HRT Assembly Manual
Semi-recumbent fitness cycle
Hide thumbs
Also See for R2600HRT:
- Assembly manual (9 pages) ,
- Owner's manual (68 pages) ,
- Owner's manual (60 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vision Fitness R2600HRT
Summary of Contents for Vision Fitness R2600HRT

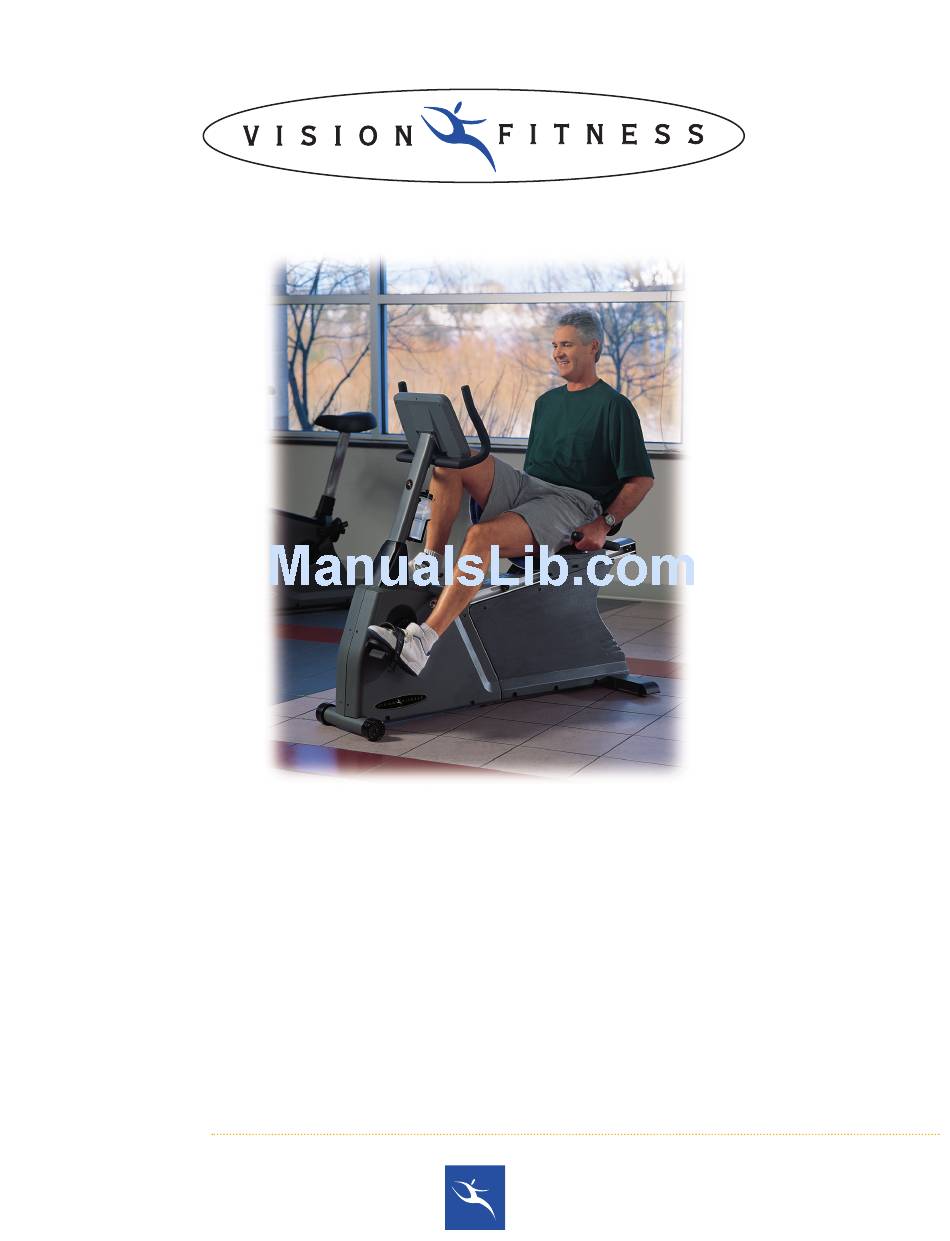

- Page 1 A s s e m b l y G u i d e R 2 6 0 0 H R T S E M I - R E C U M B E N T F I T N E S S C Y C L E...
- Page 2 R 2 6 0 0 H R T semi-recumbent fitness cycle To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding though, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
- Page 3 TOOLS & PARTS INCLUDED Allen Wrench Allen Wrench Screwdriver L-Shaped Wrench L-Shaped Wrench PARTS BOX Power Supply, Qty: 1 Water Bottle & Bracket, Qty: 1 Heart Rate Chest Strap, Qty: 1 Console Mast Rubber Cover, Qty: 1 Parts Bags Owners Manual Assembly Guide Warranty Card...
- Page 4 HARDWARE INCLUDED BLUE BAG GREEN BAG M8 Lock Washer M8 Lock Washer M8 x 15 Bolt Quantity: 2 Quantity: 4 Quantity: 4 M8 x 20L Cap Screw Quantity: 4 ORANGE BAG M8 x 60 Bolt Quantity: 2 BLACK BAG M8 x 20 Bolt Quantity: 4 PINK BAG...
- Page 5 ORANGE BAG STEP • Install the rear foot with the four bolts (M8 X 20 ), using the Blue Allen wrench. STEP BLUE BAG STEP STEP • Slide the rubber cover onto the console mast. • Unfold the wire and attach it to the string located inside the mast.
- Page 6 PINK BAG STEP STEP • Mount the upper handlebars to the console mast using the four bolts (M8 X 15 ) and four washers (M8) using the 5 Allen wrench. CONSOLE STEP • Remove the four screws from STEP the back of the console. Plug the wire connector from inside the mast into the console.
- Page 7 GREEN BAG STEP • Attach the seat frame onto the seat bracket, using 4 cap screws (M8x20L). Tighten with the 6 Allen Wrench. • Connect Wires A on the seat handlebar to Wires B on the seat bracket. Attach the seat handlebar to the seat bracket using 4 bolts (M8x15L) and 4 lock washers (M8).
- Page 8 621-D East Lake Street • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2001 Vision Fitness. All Rights Reserved. 5.01 Part #Z26RB49-AG1802PRD AG18.02PRD REV2...
