A s s e m b l y
G u i d e
R2600iNetTV
COMMERCIAL FITNESS BIKE

Advertisement

loading
Need help?

Need help?

Do you have a question about the R2600iNetTV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vision Fitness R2600iNetTV

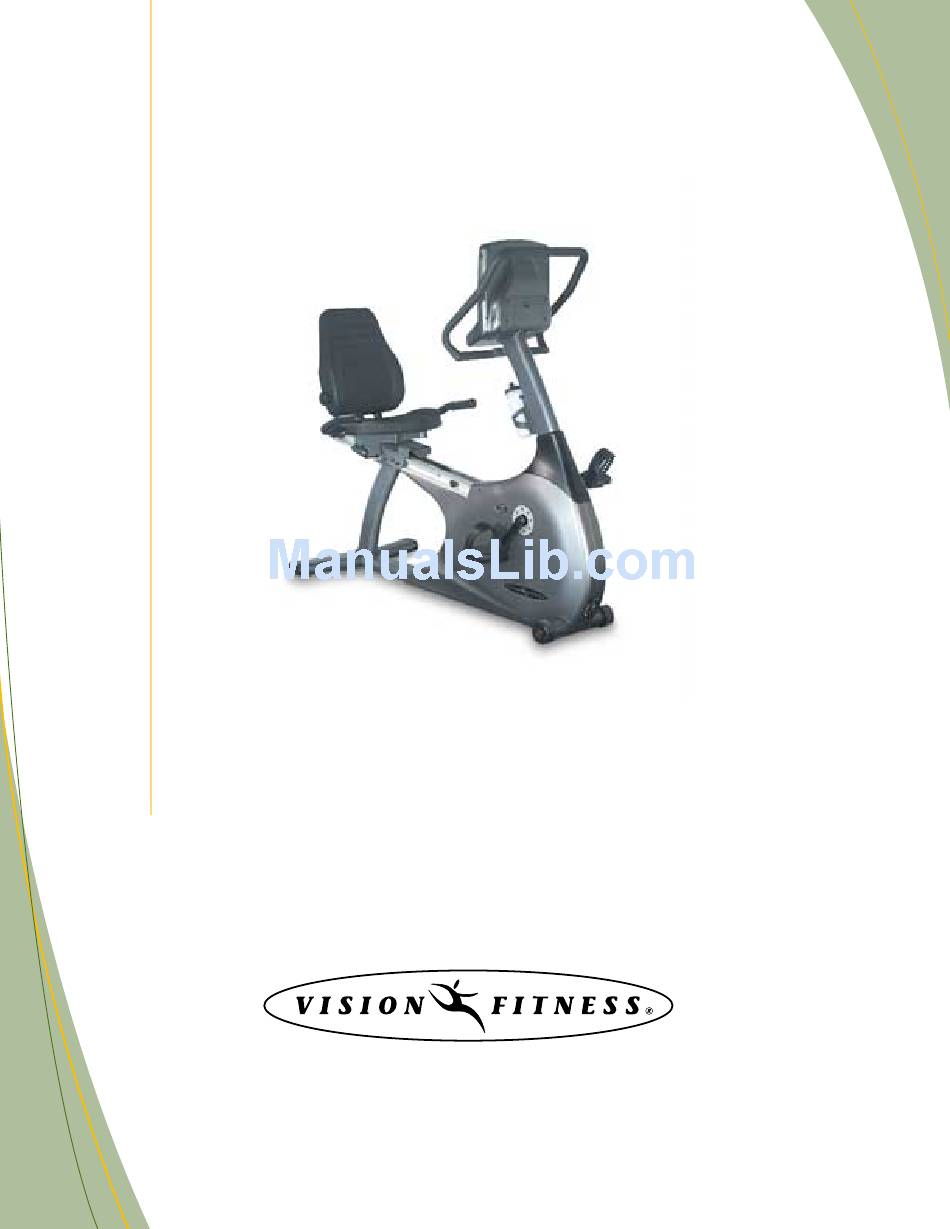

  • Page 1 A s s e m b l y G u i d e R2600iNetTV COMMERCIAL FITNESS BIKE...
  • Page 2 Also, during each assembly step, ensure that ALL screws are in place and partially threaded in before completely tightening any ONE screw. STEP STEP STEP A s s e m b l y G u i d e R2600iNetTV COMMERCIAL FITNESS BIKE STEP STEP STEP...
  • Page 3 TOOLS & PARTS INCLUDED Allen Wrench Allen Wrench L-Shaped Wrench Screwdriver L-Shaped Wrench PARTS BOX Console Mast Cover, Qty: 1 CONSOLE BOX Water Bottle & Cage, Qty: 1 Heart Rate Chest Strap, Qty: 1 Color-coded Hardware Bags iNetTV Console Assembly Guide Owner’s Guide Warranty Card...
  • Page 4 ORANGE BAG M8x65L Screw Quantity: 2 M8 x 20L Screw Quantity: 2 BLUE BAG M8 Lock Washer M8 x 15L Screw Quantity: 7 PINK BAG M8 Lock Washer M8 x 20L Screw Quantity: 2 HARDWARE INCLUDED M8 Lock Washer Quantity: 4 Quantity: 6 Quantity: 4 GREEN BAG...
  • Page 5 ORANGE BAG STEP • Install the rear foot with the four lock washers (M8), two inside screws (M8x65L), and two outside screws (M8x20L). Tighten with the 5 wrench. STEP STEP Allen STEP BLUE BAG • Slide the rubber boot onto the console mast.
  • Page 6 PINK BAG STEP • Mount the upper handlebars to the console mast using two lock washers (M8) and two screws (M8x20L). Tighten with the 5 Allen wrench. STEP 1 - Co-Axial Cable TV 2 - USB - B 3 - USB - A 4 - VGA (PC Video) 5 - Video IN 6 - Audio - R...
  • Page 7 Wires A STEP Wires B GREEN BAG STEP • Attach the seat frame to the sliding seat bracket using four socket head cap screws (M8x20L) and the 6 Allen wrench. • Connect Wires A on the seat handlebar to Wires B on the sliding seat bracket.
  • Page 8 Lumbar controlled seat. 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2002 Vision Fitness. All Rights Reserved. 8.02 Part #Z26RB60-AG1825PRD AG18.25PRD REV1 Allen wrench.
