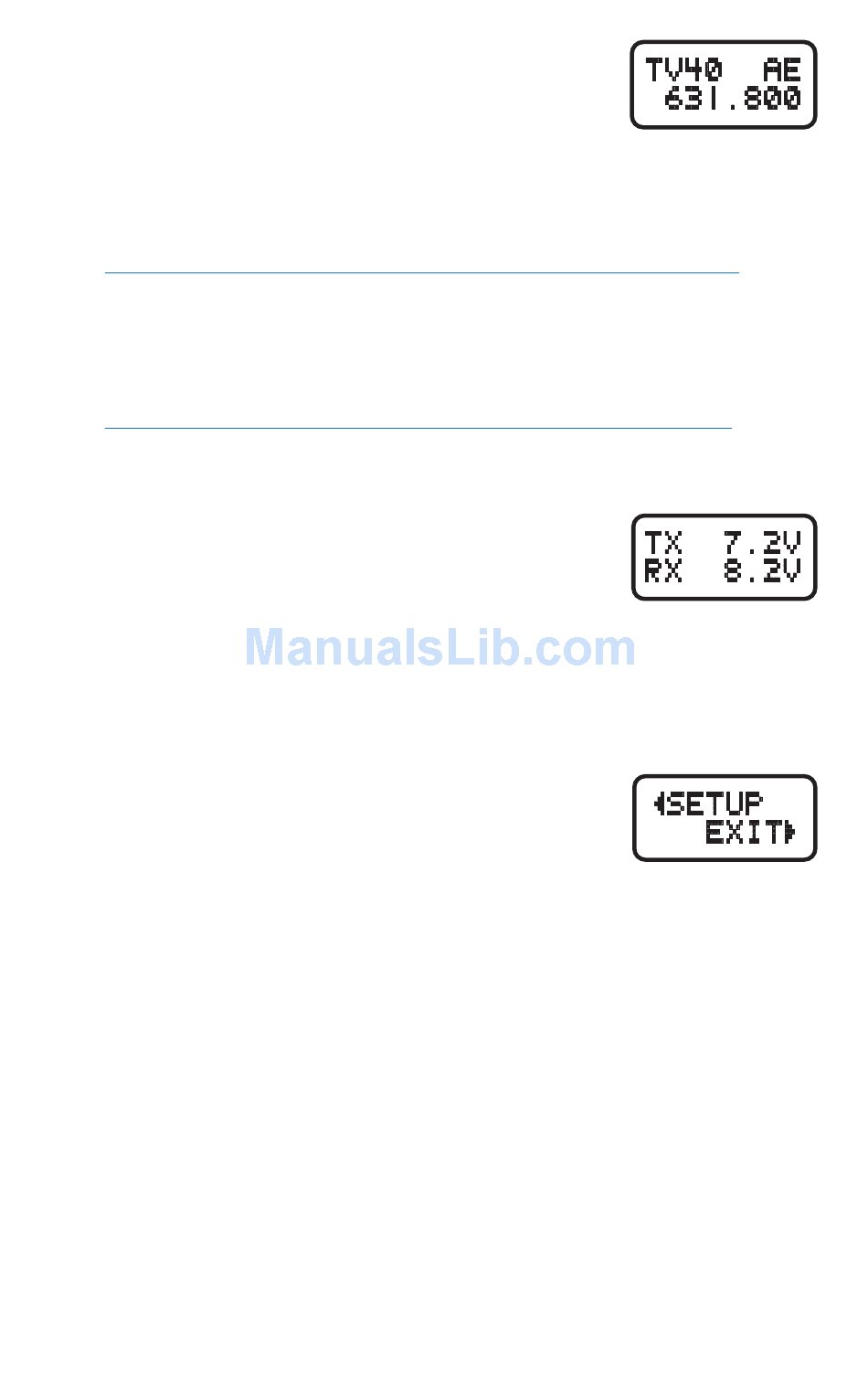

Frequency Window

TV40 - The television broadcast channel the frequency
falls within.
AE - These are the correct settings for the frequency switches on your trans-
mitter - see your transmitter instructions.
631.800 - Press the SEL Up and Down buttons to change the frequency of
the receiver.
Note: Be certain to change the transmitter frequency to match the
settings shown in the Frequency window.
When the TUNING mode is set to NORMAL, the SEL Up and Down buttons
tune in single channel increments. In the GRP (group) tuning modes, the SEL
Up and Down buttons move among the pre-selected set of frequencies.
Note: See page 6 and the Instruction Manual for details on group
tuning modes.

Battery Level Window

This window shows the transmitter (TX) and receiver
(RX) battery voltage. These levels will flash when the volt-
ages drop below optimum working levels.
With dry cell batteries, 30 to 60 minutes of operating time will remain after the
display begins to blink. Rechargeable batteries on the other hand will give little
to no warning before the unit stops operating. RX changes to EX when the
receiver is operating from an external power supply.

Setup Window

In the Setup window, the SEL Up and Down buttons scroll
through the following eight possible setup screens: EXIT,
LEVEL, TONE, TXBAT, PHASE, SmtNR (in 400 Series
mode only), TUNING and COMPAT.
