Menu Selections from Main Window

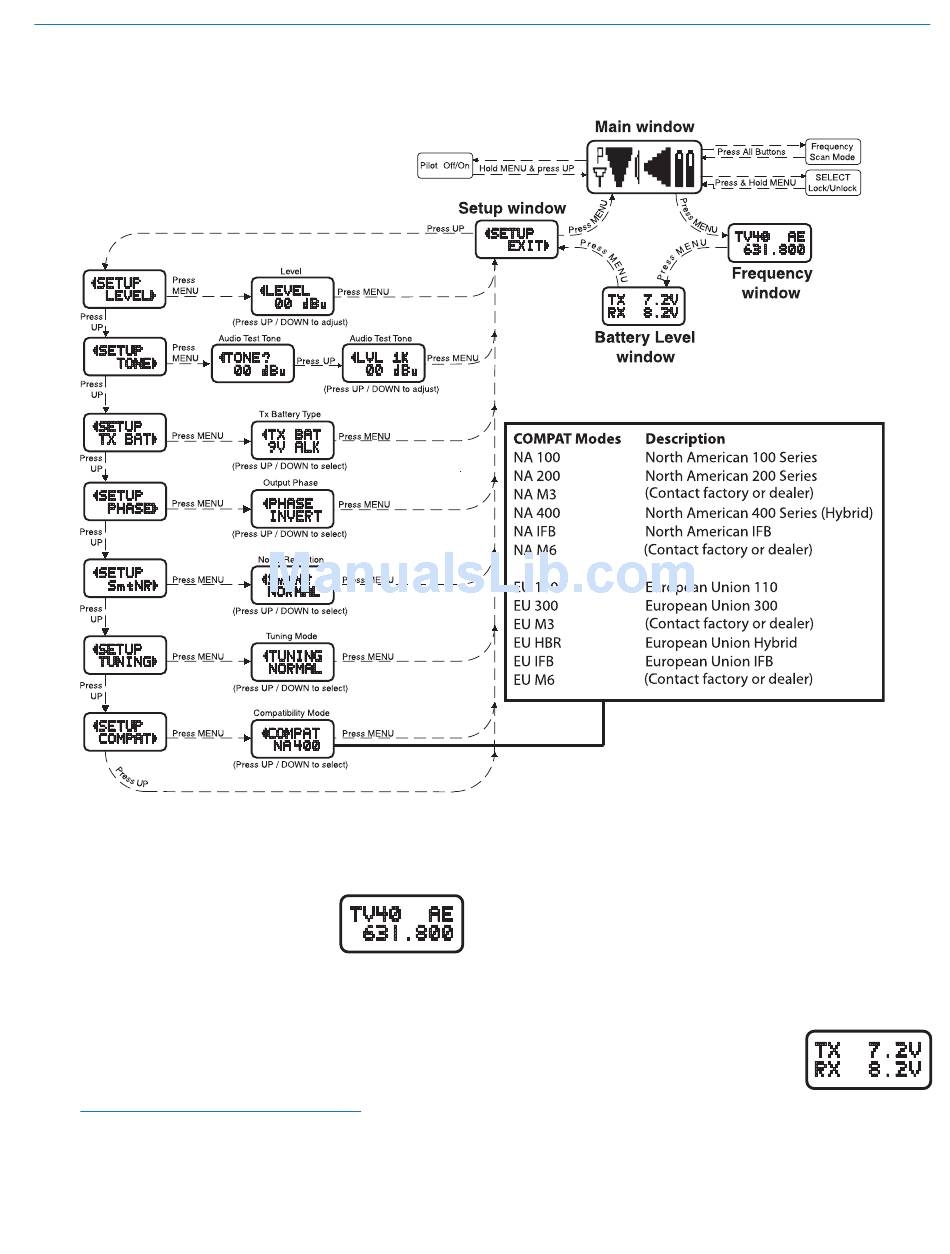

From the Main window, you can navigate to the Fre-
quency, Battery Level and Setup windows in a circular
sequence by pressing the MENU button.

Frequency Window

TVxx - Indicates the television broad-
cast channel (xx) this frequency falls
within.
Transmitter switch settings (AE in the illustration)
-These are the correct switch settings for the frequency
switches on your transmitter - see your transmitter
instructions.
Frequency - Press the SEL Up and Down buttons to
change the frequency of the receiver.
Note: Be certain to change the transmitter
frequency switches to match the settings shown
in the upper left hand corner of the Frequency
window.
Rio Rancho, NM
UHF Digital Hybrid Wireless™ Receiver
When the TUNING mode is set to NORMAL, the SEL
Up and Down buttons tune in single channel incre-
ments. In the group tuning modes, the SEL Up and
Down buttons move among the selected intermod-free
frequencies.
Tuning shortcuts: In NORMAL tuning mode, MENU+UP
and MENU+DOWN tune in 16 channel increments for
faster tuning. In the group tuning modes, MENU+UP
jumps to the first frequency in the group and
MENU+DOWN jumps to the last one in the group.

Battery Level Window

This window shows the transmit-
ter (TX) and receiver (RX) battery
voltage. These levels will flash when
there will be about one hour operating time remain-
ing. The RX voltage changes to EX when operating on
external power and displays the external power source
voltage. (Disclaimer: We cannot guarantee 0.1 Volt ac-
curacy.)
