Getting Started
This section explains how to connect audio/video components and speakers to the receiver, and how to connect the
power supply.
Before Installation
General
• Be sure your hands are dry.
• Turn the power off on all components.
• Read the manuals supplied with the components you are going to
connect.
Location
• Install the receiver in a location that is level, well-ventilated and
free from moisture.
• The temperature around the receiver must be between –5˚C and
35˚C (23˚F and 95˚F).
• Make sure there is good ventilation around the receiver. Poor
ventilation could overheat and damage the receiver.
Handling the receiver
• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or
cabinet.
• Do not expose the receiver to rain or moisture.
Checking the Supplied Accessories
Check to be sure you have all of the following items, which are
supplied for the receiver.
The number in the parentheses indicates quantity of the pieces
supplied.
• Remote Control (1)
• Batteries (2)
• AM Loop Antenna (1)
• FM Antenna (1)
If any item is missing, contact your dealer immediately.

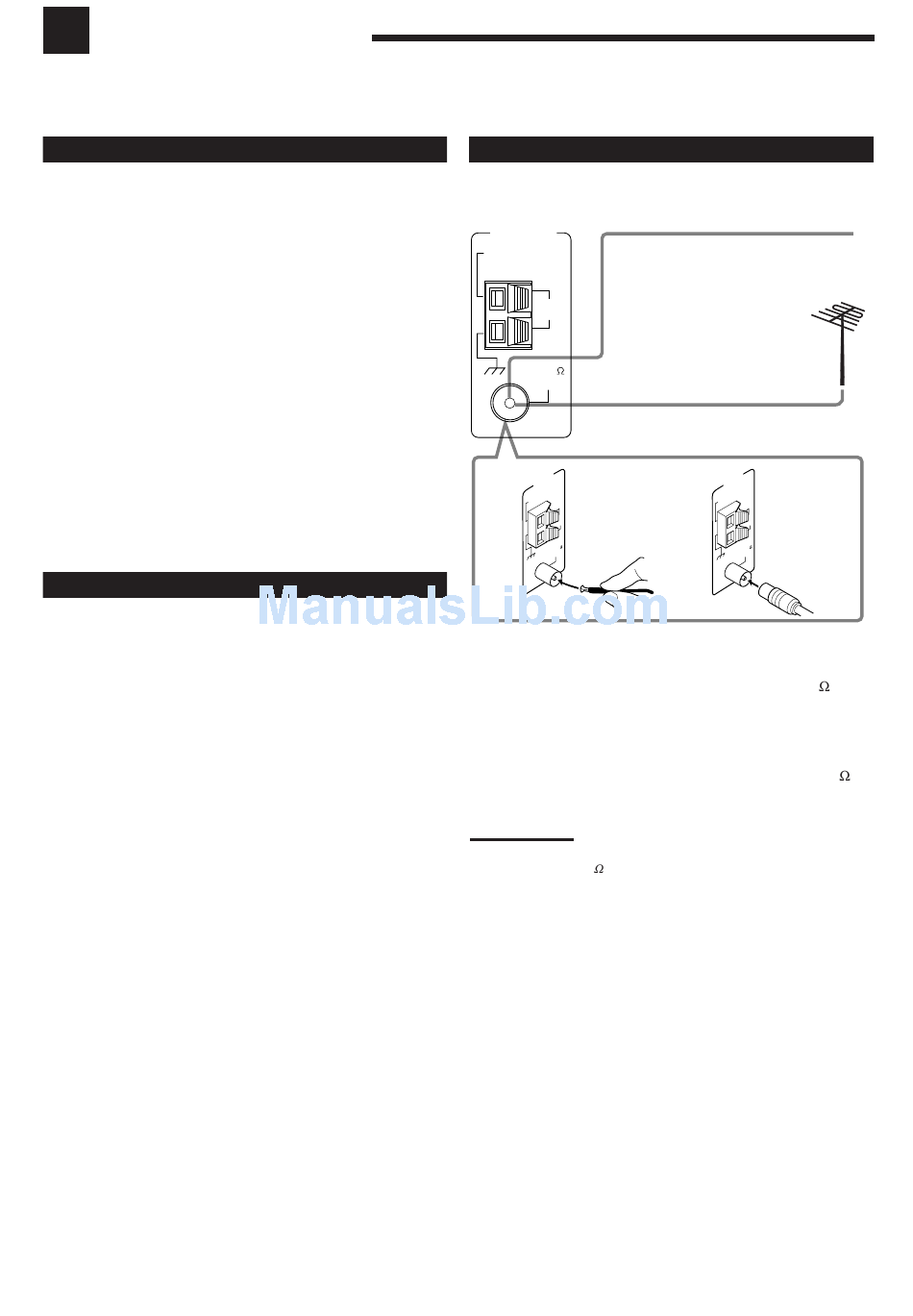

Connecting the FM and AM Antennas
FM Antenna Connections
Extend the supplied FM antenna horizontally.
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
A
A
N N
T E
A N
A M
T
E X
A M
O P
L O
7 5
IA L
F M
A X
C O
A. Using the Supplied FM Antenna
The FM antenna provided can be connected to the FM 75
COAXIAL terminal as a temporary measure.
B. Using the Standard Type Connector with Outdoor FM
Antenna (Not Supplied)
A standard type connector should be connected to the FM 75
COAXIAL terminal.
Note:
If reception is poor, connect the outdoor antenna.
Before attaching a 75 coaxial cable (the kind with a round wire going
to an outdoor antenna), disconnect the supplied FM antenna.
FM Antenna
Outdoor FM Antenna Cable
(not supplied)
B
A
N N
T E
A N
A M
T
E X
A M
O P
L O
7 5
IA L
F M
A X
C O
6
