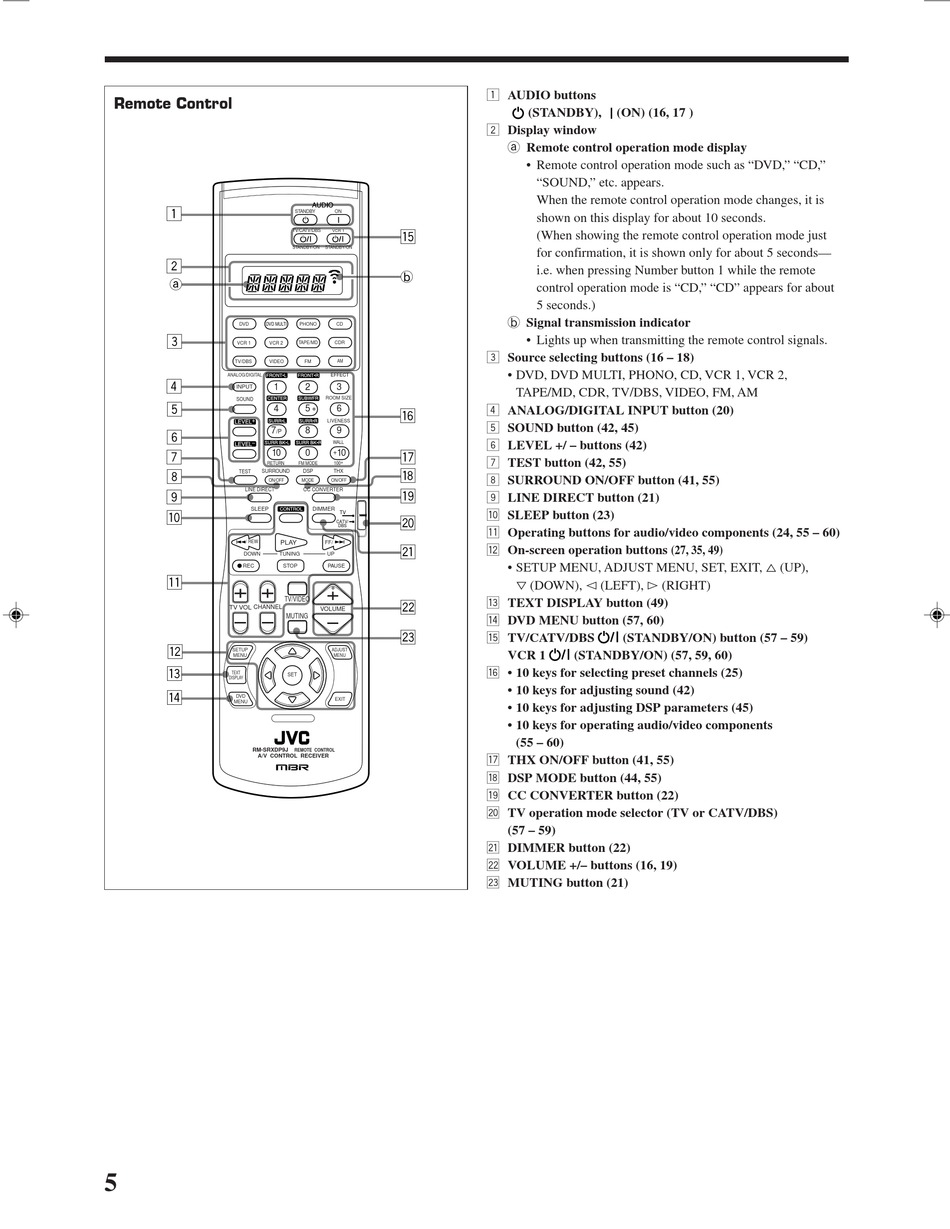

REMOTE CONTROL
1 AUDIO buttons
(STANDBY), (ON) (16, 17 )
2 Display window
a Remote control operation mode display
• Remote control operation mode such as "DVD," "CD,"
"SOUND," etc. appears.
When the remote control operation mode changes, it is
shown on this display for about 10 seconds.
(When showing the remote control operation mode just
for confirmation, it is shown only for about 5 seconds—
i.e. when pressing Number button 1 while the remote
control operation mode is "CD," "CD" appears for about
5 seconds.)
b Signal transmission indicator
• Lights up when transmitting the remote control signals.
3 Source selecting buttons (16 – 18)
• DVD, DVD MULTI, PHONO, CD, VCR 1, VCR 2,
TAPE/MD, CDR, TV/DBS, VIDEO, FM, AM
4 ANALOG/DIGITAL INPUT button (20)
5 SOUND button (42, 45)
6 LEVEL +/ – buttons (42)
7 TEST button (42, 55)
8 SURROUND ON/OFF button (41, 55)
9 LINE DIRECT button (21)
p SLEEP button (23)
q Operating buttons for audio/video components (24, 55 – 60)
w On-screen operation buttons (27, 35, 49)
• SETUP MENU, ADJUST MENU, SET, EXIT, % (UP),
fi (DOWN), @ (LEFT), # (RIGHT)
e TEXT DISPLAY button (49)
r DVD MENU button (57, 60)
t TV/CATV/DBS
(STANDBY/ON) button (57 – 59)
VCR 1 (STANDBY/ON) (57, 59, 60)
y • 10 keys for selecting preset channels (25)
• 10 keys for adjusting sound (42)
• 10 keys for adjusting DSP parameters (45)
• 10 keys for operating audio/video components
(55 – 60)
u THX ON/OFF button (41, 55)
i DSP MODE button (44, 55)
o CC CONVERTER button (22)
; TV operation mode selector (TV or CATV/DBS)
(57 – 59)
a DIMMER button (22)
s VOLUME +/– buttons (16, 19)
d MUTING button (21)
