Replacing a Gobo

Gobo-wheel with rotating gobo's
1. Disconnect mains power supply and set the switch to OFF.
2. Make sure that the gobo you want to insert has the same size. For the right size, see below.
3. Remove the maintenance cap.
4. Turn the gobo wheel, with the gobo you want to remove, to the upside.
5. Very carefully take the pinchcock (fig 13 and 14) out of the gobo wheel, but pay attention that the
pinchcock does not fall in the device. Then push the gobo out.
6. Place the new gobo in the gobo wheel. Carefully put the pinchcock back, gently press the pinchcock
a little bit together. Possibly use a pair of pliers to press the pinchcock a little bit together.
7. Replace the maintenance cap and fasten all screws.

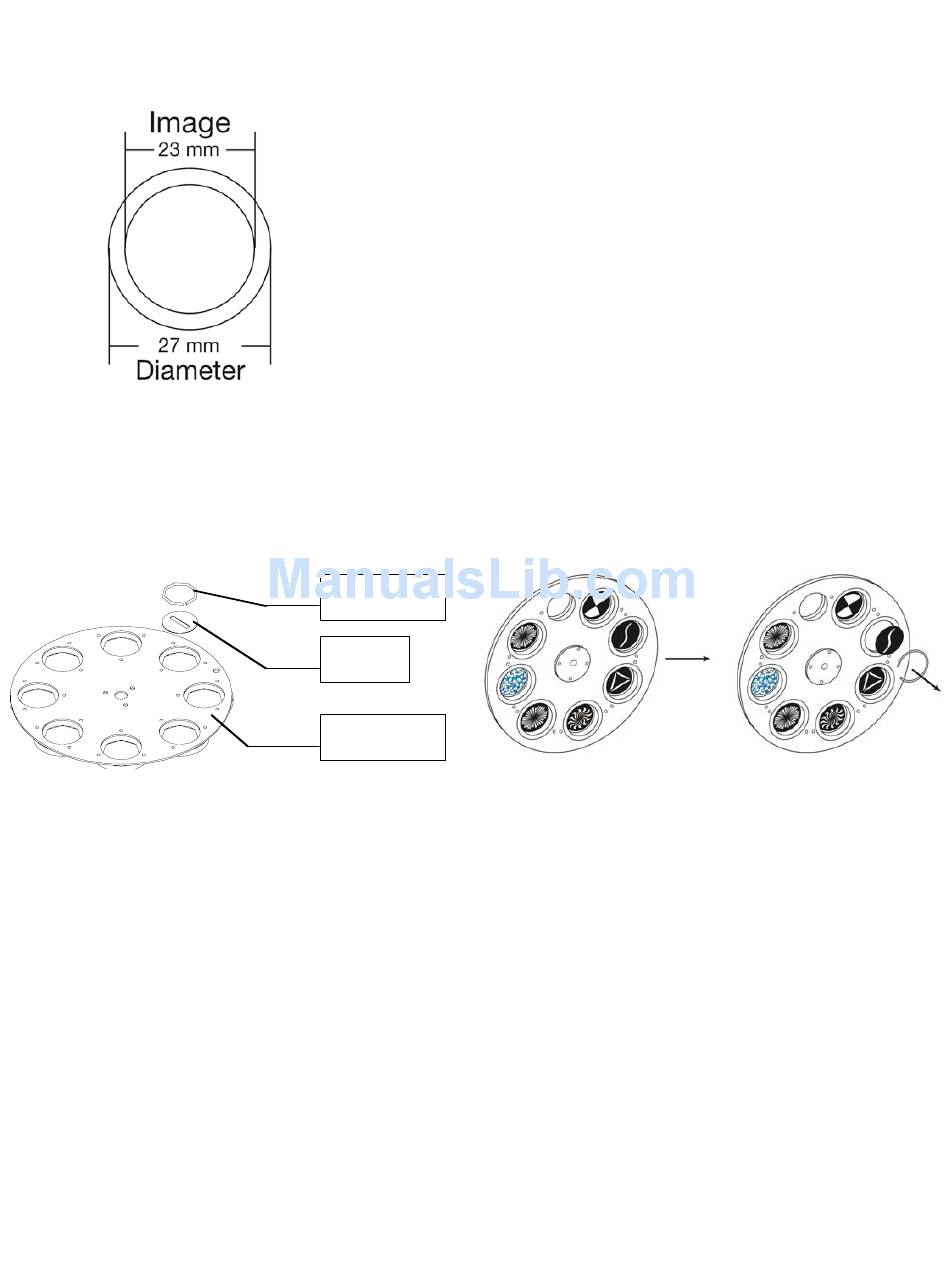

Fig. 12
Fig. 11
pinchcock
gobo
