Summary of Contents for SHOWTEC Galactic GBC-120

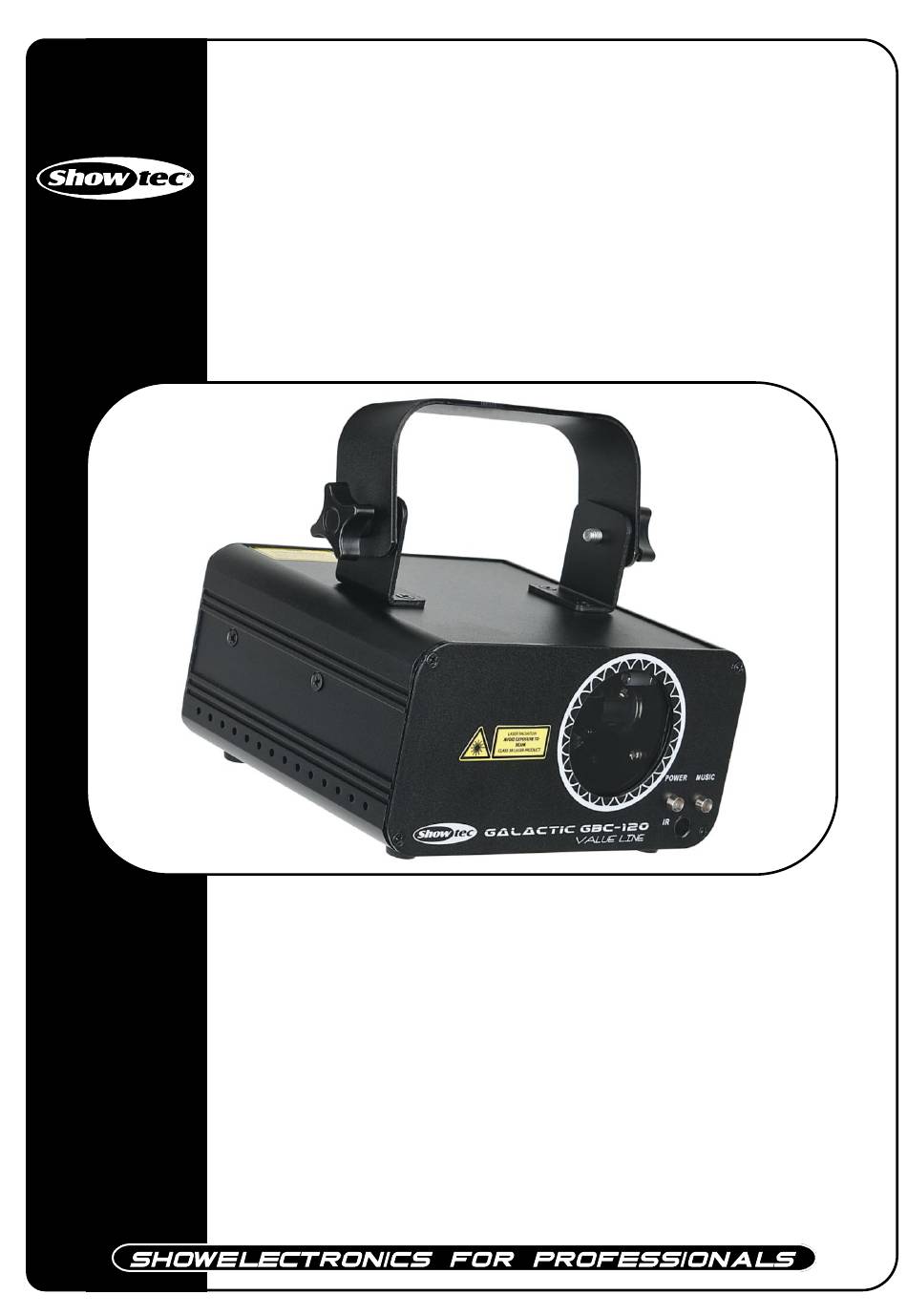

- Page 1 Galactic GBC-120 ORDERCODE 51336 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Galactic GBC-120 Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................5 Rigging .................................... 5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Backside ..................................8 Remote Control Operation ............................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Galactic GBC-120 with IEC powercable 1,75m • Infrared Remote Control • Remote plug and 2 keys •... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
- Page 6 The Galactic GBC-120 is a Class IIIB laser product. Laser Safety and Compliance Information The Galactic GBC-120 is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser notices.
-
Page 7: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the Galactic GBC-120 is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the Galactic GBC-120, with the mounting-bracket, to the trussing system. -
Page 8: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 9: Description Of The Device
Description of the device Features The Showtec Galactic GBC-120 is a light effect with high output and great effects. • When using multiple units together, you can make a great and cost effective beam-show • Power Input: AC 100-240V, 50/60Hz •... -
Page 10: Backside
Backside Fig. 2 4 5 6 7 8 9 10 1) Mountingbracket with adjustment screw 7) Earth connection 2) 3-pin DMX Out 8) Remote Control 3) ON/OFF 9) Lock On/Off 4) Fuse 1A/250V 10) Safety Eye 5) IEC Powerconnector 11) LCD Display + Menu Buttons 6) 3-pin DMX In 12) Built-in Microphone... -
Page 11: Remote Control Operation
Remote Control Operation ON/OFF: mode, use this button to turn the laser ON/OFF. In every mode, excepted SLA mode, press 2 seconds to activate REM mode. AUTO: Automatic running show SOUND activated show. The blue music LED indicator is flashing when sound signal is detected During a sound-controlled Show, press MUSIC+B+1~9 to set the sensitivity. -
Page 12: Installation
Installation Remove all packing materials from the Galactic GBC-120. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 13: Control Modes
Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Turn on the music. If the device is set to sound, then the Galactic GBC-120 will react to the beat of the music. -
Page 14: Multiple Galactic Rgy-140 (Dmx Control)
2. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the Galactic GBC-120 lasers. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"... -
Page 15: Control Panel
When using multiple Galactic’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Galactic GBC-120 should be 1(001); the DMX address of the second Galactic GBC-120 should be 1+10=11; the DMX address of the third Galactic GBC-120 should be 11+10=21, etc. -
Page 16: Menu Overview
Menu Overview The Galactic GBC-120 will only show its version number at start-up ! -
Page 17: Main Menu Options
Main Menu Options 1. DMX address 2. Master/Slave 3. Remote Control 4. Test 5. Automatic 6. Sensitivity You can only change a certain setting when the display is blinking. If you can’t change a certain value, please press the Function-button once and then change the value. 1. -
Page 18: Built-In Programs Mode / Sound Mode
5. Built-in Programs Mode / Sound Mode 1) Press the FUNC button, until the display shows . This is the Auto Mode. 2) You can choose 8 different modes, 4 Auto Modes and 4 Sound Modes. 3) Use the Up / Down buttons to select: 4) Use the ENTER button to store your setting. -
Page 19: Dmx Channels
DMX Channels 10 Channels Channel 1 – Control Modes 0-29 Auto show with original pre-programmed color 30-59 Auto show with Green 60-89 Auto show with Red 90-119 Auto show with Yellow Sound-activated show with original pre-programmed color 120-149 150-179 Sound-activated show with Green 180-209 Sound-activated show with Red 210-239... -
Page 20: Patterns
Channel 9 – X-axis Rolling 0-127 0-359 degree fixed X Axis rolling 128-191 Counterclockwise rolling from slow to fast 192-255 Clockwise rolling from slow to fast Channel 10 – Z-axis Rolling 0-127 0-359 degree fixed X Axis rolling 128-191 Counterclockwise rotation from slow to fast 192-255 Clockwise rotation from slow to fast Patterns... -
Page 21: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the Galactic GBC-120, as this may damage the unit and the warranty will become void. - Page 22 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 23: Product Specification
Product Specification Model: Showtec Galactic GBC-120 • When using multiple units together, you can make a great and cost effective beam-show • Power Input: AC 100-240V, 50/60Hz • Power Consumption: 15 Watt • Beam Diameter <5mm at aperture • Pulse Data All pulses < 4Hz (>0.25sec) •...
