Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One Explorer

1. Fasten the moving head onto firm trussing (Use a clamp (ordercode 70302 / 70351 / 70354 / 70356 /
70359) fastened onto the Explorer ). Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable (ordercode 70140 / 70141).
3. Plug one end of the electric mains power cord into the IEC socket on the
Then plug the other end of the cord into a proper electric power supply socket.
4. Use the Mode-button to set the fixture to RUN and choose PR6.1. The Explorer will now play its built-in
program.

Multiple Explorers

1. Fasten the moving head onto firm trussing (Use a clamp (ordercode 70302 / 70351 / 70354 / 70356 /
70359) fastened onto the Explorer ). Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable (ordercode 70140 / 70141).
3. Use a 3-p XLR cable to connect the Explorers and other devices.

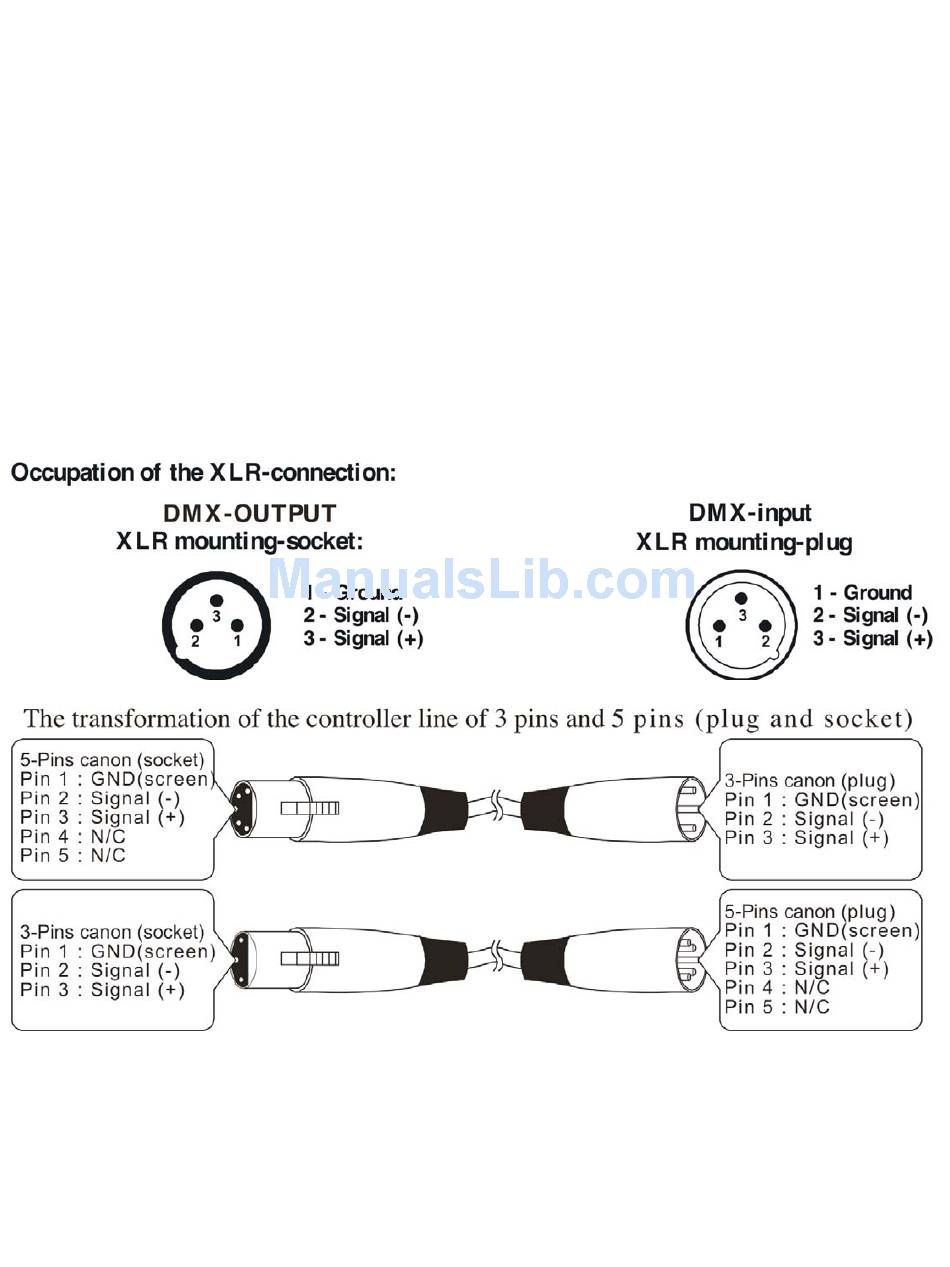

4. Link the units as shown (Fig. 6). Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other
end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not
supply power before the whole system is set up and connected properly.
10
unit.
