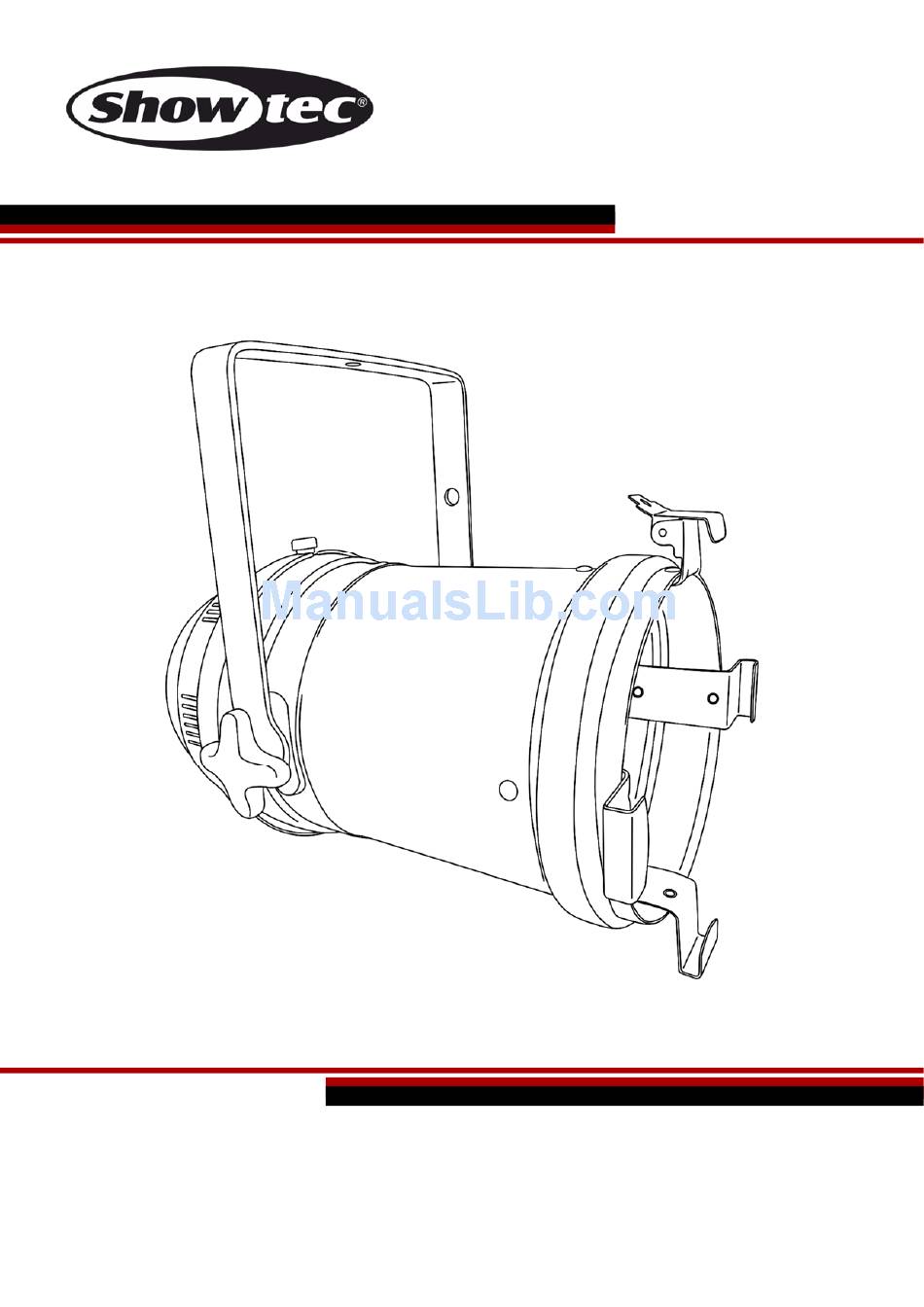

- Page 1 MANUAL ENGLISH Parcan 56 Long, incl. terminal and socket V1 Ordercode: 30317/30318 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Parcan 56 Long, incl. terminal and socket Table of contents Warning ................................... 2 Safety Instructions ..............................2 Operating Determinations ............................4 Rigging ..................................4 Return Procedure ..............................6 Claims ..................................6 Description of the device ............................. 7 ... -
Page 3: Warning
Your shipment includes: Showtec Parcan 56 Long, incl. terminal and socket with a Schuko power cable (0,8 m) User manual... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Parcan 56 Long, incl. terminal and socket Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. - Page 6 Parcan 56 Long, incl. terminal and socket The Parcan can be mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug.
-
Page 7: Return Procedure
Parcan 56 Long, incl. terminal and socket Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. -
Page 8: Description Of The Device
Parcan 56 Long, incl. terminal and socket Description of the device Features The Parcan 56 Long is a theatre spotlight fixture with high output. Input voltage: 240V, 50Hz Power consumption: 300W Lamp socket: GX16D Light source: 1 x Par 56 GX16d (not included) ... -
Page 9: Lamp Housing
06) Lamp socket GX16D Installation Remove all packing materials from the Parcan 56 Long. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Installing The Lamp
Parcan 56 Long, incl. terminal and socket Installing the Lamp The Showtec Parcan 56 Long uses the Par 56 GX16d NSP GE lamp, 300W (ordercode 80102), the GE Par 56 GX16d MFL GE, 300W (ordercode 80103), the Philips Par 56 GX16d Philips, 300W (ordercode 80103P), the GE Par 56 GX16d WFL GE, 300W (ordercode 80104), the Philips Par 56 GX16d Philips, 300W (ordercode 80104P). -
Page 11: Set Up And Operation
04) The electric power supply cables must not show any damages or material fatigue. The Parcan 56 Long requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 12: Troubleshooting
Parcan 56 Long, incl. terminal and socket Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 13: Product Specifications
Parcan 56 Long, incl. terminal and socket Product Specifications Model: Showtec Parcan 56 Long Input voltage: 240V AC, 50Hz Power consumption: 300W Dimensions: 360 x 238 x 325 mm (LxWxH) Weight: 1,4 kg Allowed lamp models* 80102 – Par 56 GX16d NSP GE 80103 –... -
Page 14: Dimensions
Parcan 56 Long, incl. terminal and socket Dimensions Ordercode: 30317/30318... - Page 15 Parcan 56 Long, incl. terminal and socket Ordercode: 30317/30318...
