User Manual

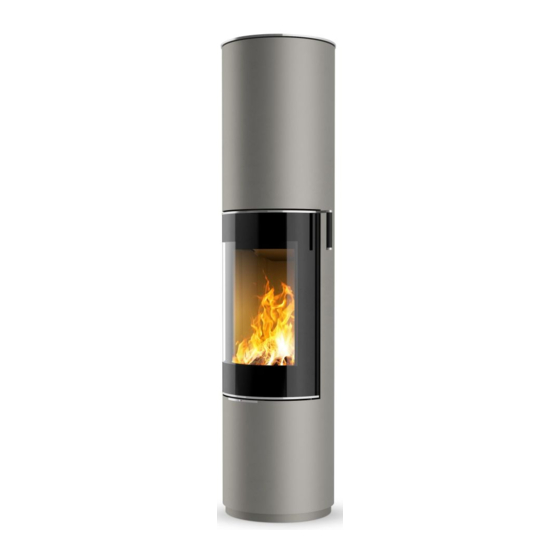

Manual for Rais Pilar 13 L & Pilar 13 H
INSTRUCTIONS FOR INSTALLATION,
USE AND MAINTENANCE
RAIS PILAR 13 L & PILAR 13 H
IMPORTANT INFORMATION
On first lighting the stove you must be careful not to touch the painted
surfaces and it is MOST IMPORTANT that the door is kept slightly 'ajar' in
order for the door seal and sealant to cure.
This will prevent the door seal sticking to the painted body and becoming
damaged.
March 2014
1
Advertisement
Related Manuals for RAIS PILAR 13 L
Summary of Contents for RAIS PILAR 13 L
- Page 1 Manual for Rais Pilar 13 L & Pilar 13 H INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE RAIS PILAR 13 L & PILAR 13 H IMPORTANT INFORMATION On first lighting the stove you must be careful not to touch the painted surfaces and it is MOST IMPORTANT that the door is kept slightly ‘ajar’...
- Page 2 Manual for Rais Pilar 13 L & Pilar 13 H 1. Effective lighting. Use brushwood, kindling and possibly a piece of newspaper. 2. Light the fire with only little wood at a time - this gives the best combustion. 3. Use only dry wood - i.e. wood with a moisture content of 15 to 22 percent.
- Page 3 Manual for Rais Pilar 13 L & Pilar 13 H Date : 2014 March HETAS SUPPLEMENT ……………………………………………………. INTRODUCTION ………………………………………………………….. WARRANTY …………………………………………………….………….. SPECIFICATIONS ………………………………………………………….. INSTALLATION INSTRUCTIONS ………………………………….……… CONVETION ………………………………………………………………… CHIMNEY ……………………………………….……………….…………... INSTALLATION …………………………….……………………..………. INSTALLATION OF STOVE WITH SWIVEL BASE …………………….. SWIVEL BASE FOR 66° TURNING ……………………………………….
- Page 4 Manual for Rais Pilar 13 L & Pilar 13 H SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY...
- Page 5 Manual for Rais Pilar 13 L & Pilar 13 H Chimney For the stove to perform satisfactorily the chimney height must be sufficient to ensure an adequate draught of approximately 15 Pa so as to clear the products of combustion and prevent smoke problems into the room.
- Page 6 Manual for Rais Pilar 13 L & Pilar 13 H Approved Document J, to a distance of 30 cm in front of the stove and 15 cm to each side measuring from the door of the combustion chamber Combustion air supply In order for the stove to perform efficiently and safely there should be an adequate air supply into the room in which the stove is installed to provide combustion air.
- Page 7 Manual for Rais Pilar 13 L & Pilar 13 H SUPPLEMENTARY OPERATING INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET READ THE INSTRUCTION BOOKLET AND THESE INSTRUCTIONS READ THE INSTRUCTION BOOKLET AND THESE INSTRUCTIONS...
- Page 8 Manual for Rais Pilar 13 L & Pilar 13 H smokeless fuels or exempt appliances for use in smoke control areas in England. In Scotland and Wales this power rests with Ministers in the devolved administrations for those countries. Separate legislation, the Clean Air (Northern Ireland) Order 1981, applies in Northern Ireland.
- Page 9 Manual for Rais Pilar 13 L & Pilar 13 H USER OPERATING INSTRUCTIONS - WOOD Please read the important notices given above before referring to the main instruction book for detailed operating instructions. HETAS Ltd Approval These appliances have been approved by HETAS Ltd as intermittent operating appliances for burning wood logs only.
- Page 10 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 11 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 12 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 13 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 14 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 15 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 16 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 17 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 18 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 19 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 20 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 21 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 22 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 23 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 24 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 25 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 26 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 27 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 28 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 29 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 30 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 31 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 32 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 33 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 34 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 35 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 36 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 37 - dirty smoke channels - leaking chimney - leakage between chimney and flue If your stove continues to malfunction, we recommend that you contact your RAIS distributor or chimney sweep. IMPORTANT!! To ensure safe burning there must be clear yellow flames or clear embers at all times. The firewood should not be smouldering.
- Page 38 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 39 Manual for Rais Pilar 13 L & Pilar 13 H March 2014...
- Page 40 Manual for Rais Pilar 13 L & Pilar 13 H U K Distributor. Robeys Ltd. Riverside, Goods Road, Belper, Derbyshire, England. DE56 1UU Tel: 01773 820940 Fax: 01773 820477 E Mail: info@robeys.co.uk www.robeys.co.uk March 2014...
