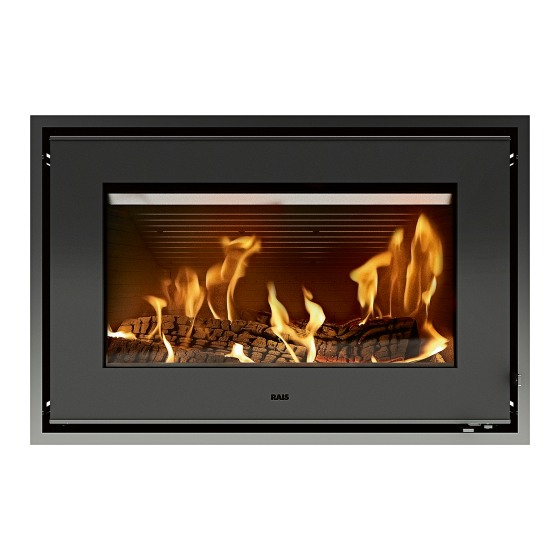

Rais 700
Hide thumbs Also See for 700 :

Advertisement

Quick Links

ENGLISH
RAIS ­ manual for Rais 700
INSTRUCTIONS FOR INSTALLATION,
USE AND MAINTENANCE
RAIS 700
IMPORTANT INFORMATION
On first lighting the stove you must be careful not to touch the painted
surfaces and it is MOST IMPORTANT that the door is kept slightly 'ajar' in
order for the door seal and sealant to cure.
This will prevent the door seal sticking to the painted body and becoming
damaged.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700  and is the answer not in the manual?

Questions and answers

Summary of Contents for RAIS 700

  • Page 1 ENGLISH  RAIS ­ manual for Rais 700  INSTRUCTIONS FOR INSTALLATION,  USE AND MAINTENANCE  RAIS 700  IMPORTANT INFORMATION  On first lighting the stove you must be careful not to touch the painted  surfaces and it is MOST IMPORTANT that the door is kept slightly ‘ajar’ in  order for the door seal and sealant to cure.  This will prevent the door seal sticking to the painted body and becoming  damaged. 1 ...
  • Page 2 ENGLISH  RAIS ­ manual for Rais 700 ...
  • Page 3: Table Of Contents

    ENGLISH  RAIS ­ manual for Rais 700  Rais 700 Revision  Date  : 2011  INTRODUCTION  …………………………………………………………..  4  WARRANTY  …………………………………………………….…………..  4  SPECIFICATIONS …………………………………………………………..  5  INSTALLATION INSTRUCTIONS ………………………………….………  6  CONVECTION  ……………………………………..……….………...  7  CHIMNEY ……………………..…………………………….………….  7­8  FLUE OUTLET POSITIONS ………………………………………….  9  HEARTH ……...…………………………………………………………  10  QUICK GUIDE DRAWINGS  …...…………………………………….  11­12  VENTILATION ………………………………………………………….  13  COMBUSTION AIR SUPPLY …………………………………………  14  INSTALLATION ………………………………………………………..  14­15  INSTALLATION DISTANCE ………………………………………….  16­21  COMMISSIONING AND HANDOVER ……………………………….  21  OPERATING INSTRUCTIONS  FUEL ……………………………………………………………………. ...
  • Page 4: Introduction

    ENGLISH  RAIS ­ manual for Rais 700  NTRODUCTION  Thank you for purchasing a Rais wood burning stove.  These appliances have been approved by HETAS as  intermittent operating appliances for burning wood logs only.  These appliances have been approved for use in Smokeless  Zones. A Rais wood burning stove is more than just a heat source: it also shows that you  care about design and quality in your home.  To make the most of your wood burning stove it is important that you read the manual  thoroughly before installing and using it.  In the case of warranty coverage, and for general queries regarding your wood  burning stove, it is important that you know the stove’s production number.  We therefore recommend that you note down the number in the table below.  The production number is located in the top of the convection box.  WARRANTY  Your Rais wood burning stove comes with a 5 year warranty.  The warranty, however, does not cover heat­insulating materials, glass and seals.  These are available to order from your local Rais dealer / stockist.  Any alterations made to the stove will void the warranty.  4 ...
  • Page 5: Specifications

    ENGLISH  RAIS ­ manual for Rais 700  SPECIFICATIONS Rais 700  RAIS 700  Nominal output (kW):  5.2  Nominal output (kW):  5.2  Min. / Max. output (kW):  3 ­ 7  Min. / Max. output (kW):  3  ­  7  2  Heating area (m  ):  Ca. 60 ­ 105  2  Heating area (m  ):  ca. 60  ­  105  Size, width/depth/height (mm):  825 / 485 / 535  Size, width/depth/height (mm):  Combustion chamber  width/depth/height (mm).  562 / 289 / 300  Combustion chamber  width/depth/height (mm).  Recommended amount of wood when fuelling (kg)  1.8  Recommended amount of wood when fuelling (kg)  1.8  (Based on 2  ­  3 logs of wood approx. 25cm)  (Based on 2  ­  3 logs of wood approx. 25cm) ...
  • Page 6: Installation Instructions

    ENGLISH  RAIS ­ manual for Rais 700  INSTALLATION INSTRUCTIONS  The following pages give instructions for the safe and proper installation of this heating  appliance in the UK. These instructions cover the basic principles of installation,  although some details may need slight modification to suit particular local site conditions.  In all cases the installation must comply with current UK Building Regulations, Local  Authority Byelaws and other specifications or regulations as they affect the installation of  the stove.  Please note that it is a legal requirement under England and Wales Building Regulations  that the installation of the stove is either carried out under local Authority Building  Control approval or is installed by a Competent Person registered with a Government  approved Competent Persons Scheme. HETAS operate such a scheme and a listing of  their registered Competent Persons can be found on their website at www.hetas.co.uk.  It should be noted that the current Building Regulations requirements are given in  Approved Document J. These requirements may also be met by adopting the relevant  recommendations given in British Standards BS 8303, BS EN15287­1:2007.  WARNING.  Health and Safety Advice Notice.  The installation of this heating appliance is governed by the Health and Safety at Work  Act 1974. it is the responsibility of the installer to ensure that all requirements of this Act  are met during the installation works. Attention is drawn in particular to the following:  Handling:  The appliance is a heavy item and adequate facilities must be available  for loading, unloading and site handling.  Fire Cement:  Some types of fire cement are caustic and should not be allowed to come  into contact with the skin. Protective gloves should be worn when  handling fire cement. In case of contact with the skin, wash immediately  with plenty of water.  Asbestos:  This stove contains no asbestos. If there is a possibility of disturbing any  asbestos in the course of the installation, then please seek specialist  guidance and use appropriate protective equipment.  Metal Parts:  When installing or servicing this stove care should be taken to avoid the  possibility of personal injury.  Important Warning  ­  Preparatory Work and safety Checks: This stove must not be installed into a chimney which serves any other heating ...
  • Page 7: Convection

    ENGLISH  RAIS ­ manual for Rais 700  Convection  Rais stoves are convection stoves. This means that the stove’s back and side panels are  not over­heated. Convection means that there is a circulation of air, which ensures that  the heat is distributed more evenly throughout the entire room. The cold air is sucked in at  the base of the stove and up through the convection channel, which runs along the  stove’s combustion chamber. The heated air comes out at the top of the stove, which  ensures a circulation of warm air throughout the room.  The stoves are equipped with cool door handles  ­  a Rais special feature  ­ which means  you could almost do away with gloves.  Be aware, however, that all exterior surfaces  become hot during use  ­  so take extreme care.  Chimney  In order for the stove to perform satisfactorily the chimney height must be sufficient to  ensure an adequate draught of approximately 15 Pa so as to clear the products of  combustion and prevent smoke problems into the room.  NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet of  the stove to the top of the chimney should be satisfactory. Alternatively the calculation  procedure given in EN 13384­1 may be used as the basis for deciding whether a  particular chimney design will provide sufficient draught.  The outlet from the chimney should be above the roof of the building in accordance with  the provisions of Building Regulations Approved Document J.  If installation is into an existing chimney then it must be sound and have no cracks or  other faults which might allow fumes into the house. Older properties, especially, may  have chimney faults or the cross section may be too large i.e. more than 230 mm x 230  mm. Remedial action should be taken, if required, seeking expert advice, if necessary. If it  is found necessary to line the chimney then a flue liner suitable for solid fuel must be used  in accordance with Building Regulations Approved Document J.  Any existing chimney must be clear of obstruction and have been swept clean  immediately before installation of the stove. If the stove is fitted in place of an open fire  then the chimney should be swept one month after installation to clear any soot falls  which may have occurred due to the difference in combustion between the stove and the  open fire.  If there is no existing chimney then any new system must be to the designation  described above and in accordance with Building Regulations Approved Document J. ...
  • Page 8 ENGLISH  RAIS ­ manual for Rais 700  Any bend in the chimney or connecting fluepipe should not exceed 45°.  90° bends should not be used.  Combustible material should not be located where the heat dissipating through the  walls of fireplaces or flues could ignite it. Therefore when installing the stove in the  presence of combustible materials due account must be taken of the guidance on the  separation of combustible material given in Building Regulations Approved Document  J and also in these stove instructions.  If it is found that there is excessive draught in the chimney then a draught stabiliser  should be fitted. Fitting of a draught stabiliser will affect the requirement for the  permanent air supply into the room in which the stove is fitted in accordance with  Approved Document J (see also combustion air supply).  Adequate provision e.g. easily accessible soot door or doors must be provided for  sweeping the chimney and connecting fluepipe where it is not intended for the  chimney to be swept through the appliance.  Chimney Fires  If the chimney is thoroughly and regularly swept, chimney fires should not occur.  However, if a chimney fire does occur turn off the stove immediately and isolate the  mains electricity supply (if applicable), and tightly close the doors of the stove.  This  should cause the chimney fire to go out. If the chimney fire does not go out when the  above action is taken then the fire brigade should be called immediately. Do not relight  the stove until the chimney and flue ways have been cleaned and examined by a  professional. 8 ...
  • Page 9: Flue Outlet Positions

    ENGLISH  RAIS ­ manual for Rais 700  Flue Outlet Positions 9 ...
  • Page 10: Hearth

    ENGLISH  RAIS ­ manual for Rais 700  Hearth  The hearth should be able to accommodate the weight of the stove and its  chimney if the chimney is not independently supported. The weight of the stove is  indicated in the brochure.  The stove should preferably be installed on a non­combustible hearth of a size and  construction that is in accordance with the provisions of the current Building  Regulations Approved Document J.  The clearance distances to combustible material beneath, surrounding or upon the  hearth and walls adjacent to the hearth should comply with the guidance on the  separation of combustible material given in Building Regulations Approved  Document J and also in these stove instructions.  If  the  stove  is  to  be  installed  on  a  combustible  floor  surface,  it  must  be  covered  with a non­combustible material at least 12mm thick, in accordance with Building  Regulations Approved Document J, to a distance of 30 cm in front of the stove and  15 cm to each side measuring from the door of the combustion chamber. 10 ...
  • Page 11 ENGLISH  RAIS ­ manual for Rais 700 ...
  • Page 12 ENGLISH  RAIS ­ manual for Rais 700 ...
  • Page 13: Ventilation

    ENGLISH  RAIS ­ manual for Rais 700  Ventilation  ­  make the best possible use of the inserts.  The stove is equipped with four convection air outlets, which can be connected with  suitable air ducts to other rooms.  Note, this is NOT a working drawing. 13 ...
  • Page 14: Combustion Air Supply

    ENGLISH  RAIS ­ manual for Rais 700  Combustion air supply  In order for the stove to perform efficiently and safely there must be an adequate air  supply into the room in which the stove is installed to provide combustion air. The  provision of air supply to the stove must be in accordance with current Building  Regulations Approved Document J. An opening window is not appropriate for this  purpose.  Installation  It is prohibited to carry out unauthorised alterations to the stove.  There must be plenty of fresh air in the room where the stove is being installed, in order to  ensure proper combustion. Note that any mechanical exhaust ventilation ­ e.g. an  extraction hood ­ is not permitted. Any air grilles must be placed in such a    manner, that  the air supply is not blocked.  The stove is equipped with four convection air outlets, which may be connected with  suit­able air ducts to other rooms.  Building Regulations Approved Document J gives specific guidance on the required  permanent ventilation into the room for combustion air of solid fuel appliances.  The floor structure must be able to carry the weight of the wood burning stove, as well as  the weight of a chimney, if necessary.  When you choose where to set up your RAIS wood burning stove, you should consider the  heat distribution to the other rooms. This will enable you to get the best use out of your  stove.  The stove should be set up at a safe distance from inflammable materials.  See the manufacturer's plate on the wood burning stove.  Installation of stove:  NOTE !  A decision must be made concerning the positioning of the inlets and outlets of  the convection system. Discolouration of the wall above the doors and the  convection air outlets may occur due to convected hot air.  RAIS cannot take responsibility for any building work or consequential damage.  The stove should be inspected for defects at receipt. 14 ...
  • Page 15 ENGLISH  RAIS ­ manual for Rais 700  Lift the stove from the pallet to the place of installation on to a suitably protected floor.  The stove can be mounted on the optional adjustable stand ( see page 29 ).  These are available to order from your local Rais dealer / stockist.  Using a spirit level against the door and body of the stove, ensure that the stove is  perfectly level and make adjustments using the levelling bolts in the base.  Remove the frame and door from the stove. Be careful not to damage the glass or  paint.  Seal the flue pipe on to the flue outlet using fire cement and self tapping screws and  connect to the chimney.  Connect the convection air ducts, if required.  Install air system manifold kit ( A ) to the pipe stub, if required ( optional ).  The stove is now ready to be built in using either stud walls or solid walls.  When the walls have been finished and decorated, the frame and door can be  re­fitted. Remove all protective plastic and tape prior to commissioning. A  A  It is possible to order ‘made to measure’ frames.  Contact your Rais dealer.  15 ...
  • Page 16 ENGLISH  RAIS ­ manual for Rais 700  Insulation ability such as Aqua panel ( coefficient of thermal conductivity 0.36 W/mk )  or better.  Please use metal stud.  Insulate ceiling if  necessary 16 ...
  • Page 17 ENGLISH  RAIS ­ manual for Rais 700  Insulate ceiling if  necessary 17 ...
  • Page 18 ENGLISH  RAIS ­ manual for Rais 700  Insulate ceiling if  necessary Distance to non  combustible material  Distance to non  50mm min  combustible material  50mm min  18 ...
  • Page 19 ENGLISH  RAIS ­ manual for Rais 700 ...
  • Page 20 ENGLISH  RAIS ­ manual for Rais 700 ...
  • Page 21: Commissioning And Handover

    ENGLISH  RAIS ­ manual for Rais 700  Installation distance in case of combustible wall  To find out whether the wall next to where the stove is going to be installed is flammable,  you should contact your building contractor or the local building authorities.  The hearth should be able to accommodate the weight of the stove. The chimney must  be independently supported by wall brackets or a ceiling support plate. The weight of the  stove is indicated in the brochure.  The stove should always be installed on a non­combustible hearth of a size and  construction that is in accordance with the provisions of the current UK Building  Regulations Approved Document J.  If the stove is to be installed on a wooden floor, it must be covered with a  non­combustible material at least 12mm thick, in accordance with UK Building  Regulations Approved Document J, to a distance of 300 mm in front of the stove and  150 mm to each side measuring from the door of the combustion chamber.  The clearance distances to combustible material beneath, surrounding or upon the  hearth and walls adjacent to the hearth should comply with the guidance on the  separation of combustible material given in UK Building Regulations Approved  Document J and also in these stove instructions.  Commissioning and handover  Ensure all parts are fitted in accordance with the instructions.  On completion of the installation allow a suitable period of time for any fire cement and  mortar to dry out, before lighting the stove. Once the stove is under fire check all seals  for soundness and check that the flue is functioning correctly and that all products of  combustion are vented safely to atmosphere via the chimney terminal.  On completion of the installation and commissioning ensure that the operating  instructions for the stove are left with the customer. Ensure to advise the customer on  the correct use of the appliance and warn them to use only the recommended fuel for the  stove.  Advise the user what to do should smoke or fumes be emitted from the stove. The  customer should be warned to use a fireguard to BS 8423:2002 (Replaces BS 6539) in  the presence of children, aged and/or infirm persons.  CO Alarm  Building regulations require that when ever a new or replacement fixed solid fuel or  wood/biomass appliance is installed in a dwelling a carbon monoxide alarm must be  fitted in the same room as the appliance. Further guidance on the installation of the  carbon monoxide alarm is available in BS EN 50292:2002 and from the alarm  manufacturer’s instructions.  Provision of an alarm must not be considered a substitute for either installing the  appliance correctly or ensuring regular servicing and maintenance of the appliance and ...
  • Page 22: Operating Instructions

    ENGLISH  RAIS ­ manual for Rais 700  OPERATING INSTRUCTIONS  Please note that HETAS Appliance Approval only covers the use of dry seasoned wood  logs on this appliance. HETAS Approval does not cover the use of other fuels either  alone or mixed with the wood logs, nor does it cover instructions for the use of other  fuels.  Fuel  The stove is designed and approved in accordance with EN 13240 and NS 3058 for  burning split, dried firewood. The firewood must have a water content of 15­22% and its  max. length should be the length of the combustion chamber minus 50­60 mm.  Stoking with wet firewood causes both soot, environmental pollution and bad fuel  economy. Freshly cut wood contains approx. 50­70% water and is thoroughly unsuitable  for stoking. Allow at least 1 year of storage time for newly cut wood before using. Wood  with a diameter of more than 100 mm should be split. Regardless of wood size, it should  always have at least one surface area free of bark.  We do not recommend stoking with painted, laminated or impregnated wood, wood with  a synthetic surface, painted refuse wood, chipboard, plywood, domestic waste, paper  bri­quettes and pit coal, as this will produce malodorous smoke, which could be  poisonous.  When firing with the above­mentioned items and amounts larger than those  recommended, the stove is subjected to a larger amount of heat, which results in a  higher chimney temperature and lower efficiency. This can result in the stove and  chimney becoming damaged and would void the warranty.  The calorific value of the firewood is closely connected to the moisture level.  Moist firewood has a low heat value. The more water the wood contains, the more  energy it takes for this water to vaporise, resulting in this energy being lost. ONLY USE RECOMMENDED FUELS  The following table shows the calorific value of different types of wood, which have been  stored for 2 years and which have a residual moisture of 15 ­  17%.  3  Wood  Kg dry wood pr m  compared to beech/oak  Hornbeam  640  110%  Beech and oak  580 ...
  • Page 23: Regulation Of Combustion Air

    ENGLISH  RAIS ­ manual for Rais 700  Drying and storage  Drying wood takes time: proper air drying takes approximately 2 years.  Here are some tips:  Store the wood sawn, split and stacked in an airy, sunny place, which is protected against  rain (the south side of the house is particularly suitable).  Store the firewood stacks at a hand's breadth apart, as this ensures that the air flowing  through takes the moisture with it. Avoid covering the firewood stacks with plastic, as this  prevents the moisture from escaping. It is a good idea to bring the firewood into the house  2­3 days before you need it.  Regulating the combustion air  All RAIS stoves are equipped with a one­handed operating lever for regulating the damper.  The stove­specific regulating mechanisms can be seen on the diagrams.  Primary air is the combustion air added to the primary combustion zone, i.e. the bed of  glowing embers. This air, which is cold, is only used in the lighting stage. Secondary air is  the air which is added in the gas combustion zone, i.e. air which contributes to the  combustion of the pyrolysis gasses (preheated air, which is used for the cleaner glass  system and combustion). This air is sucked through the damper under the combustion  chamber and is pre­heated through the side channels and then emitted as hot scavenging  air onto the glass. The hot air rinses the glass and keeps it soot­free.  The tertiary channel, which can be seen at the top of the combustion chamber towards the  back, serves to combust the final gas residues.  By setting the interval between position 1 and 2, the energy content in the firewood is used  optimally, as there is oxygen for combustion and for the burning of the pyrolysis gasses.  When the flames are a clear yellow the damper has been set correctly. Finding the correct  position comes with time after you have used for stove for a while.  It is not recommended that you turn it down completely. A mistake commonly made is  shutting the damper too early because it feels too hot. This results in dark smoke emanating  from the chimney and in the calorific value of the firewood not being used to its fullest.  Room ventilation and stoves  There must not be an extractor fan fitted in the same room as the stove as this can cause  the stove to emit smoke and fumes into the room.  The stove requires a permanent and adequate air supply in order for it to operate safely and  efficiently.  In accordance with current Building Regulations the installer may have fitted a permanent air  supply vent into the room in which the stove is installed to provide combustion air. This air  vent should not under any circumstances be shut off or sealed.  CO Alarm  Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm ...
  • Page 24: Using The Wood Burning Stove

    ENGLISH  RAIS ­ manual for Rais 700  Using the wood burning stove  Adjustment of the air damper ­ the damper has 3 settings  Position 1  The damper is almost closed meaning that there is a minimal air  intake.  Position 2  Pull the lever until the first click. This position gives full secondary  air.  During normal use the lever is set between position 1 and 2.  When the flames are clear and yellow, the damper is set  correctly, i.e. resulting in a slow / optimal burning.  Position 3  Pull the lever until the next click.  The air damper is completely open and gives full primary and secondary air. This  position is for the lighting stage and is not used under normal operation.  Control  If the ash is white and the walls in the combustion chamber are soot free after the stove  has been used, the air regulation was set correctly and the wood was sufficiently dry.  First usage  A careful start pays off. Start with a small fire, so that the wood burning stove can get  accustomed to the high temperature. This gives the best start and any damage is  avoided.  Be aware that a strange but harmless odour and smoke concoction may emanate from  the surface of the stove, the first time you fire up. This is because the paint and  materials need to harden. The odour disappears quickly, but you should check the  ventilation and draught, if possible. See also, the IMPORTANT warning notice below  about persistent fumes.  During this process you must be careful not to touch the painted surfaces, it is  recommended that you regularly open and close the door to prevent the door seal from  sticking.  The stove may also produce "clicking noises" during heating and cooling, caused by the  large temperature differences which the material is subjected to.  Never use any type of liquid fuel for kindling or maintaining the fire. You could be at risk  of explosion.  The stove gets very hot when in use, always wear protective gloves when tending the  stove.  If the stove has not been used for a while, follow the steps as if you were using it for the  first time.
  • Page 25 ENGLISH  RAIS ­ manual for Rais 700  Before lighting the stove check with the installer that the installation work and  commissioning checks described above have been carried out correctly and that the  chimney has been swept clean, is sound and free from any obstructions. As part of the  stoves’ commissioning and handover the installer should have shown you how to  operate the stove correctly.  IMPORTANT ­ Warning Note!  Properly installed, operated and maintained this appliance will not emit fumes into the  dwelling. Occasional fumes from de­ashing and re­fuelling may occur.  However, persistent fume emission is potentially dangerous and must not be tolerated.  If fume emission does persist, the following immediate actions should be taken:  (a)  Open doors and windows to ventilate the room and then leave the premises.  (b)  Let the fire go out.  (c)  Check for flue or chimney blockage, and clean if required.  (d)  Do not attempt to relight the fire until the cause of the fume emission has been  identified and corrected. If necessary seek expert advice.  The most common cause of flue emission is flue way or chimney blockage.  For your own safety these must be kept clean at all times.  IMPORTANT ­ Warning Note!  Do not use an aerosol spray on or near the stove when it is alight.  IMPORTANT ­ Safety advice!  When using the stove in situations where children, aged and/or infirm persons are  present a fireguard must be used to prevent accidental contact with the stove. The  fireguard should be manufactured in accordance with BS 8423:2002 (Replaces BS  6539). 25 ...
  • Page 26: Lighting And Fuelling

    ENGLISH  RAIS ­ manual for Rais 700  Lighting and fuelling To light the stove, use alcohol briquettes or  similar, as well as approximately 2kg of  firewood, split into kindling sticks. Set the air  damper to the fully open position.  Tips before firing up:  Open a door or window close to the wood  burning stove.  If there is ‘storm’ in the stove coming from the  chimney it is advisable to place a screwed up  piece of newspaper between the upper baffle  plate and the chimney. Light the paper and  wait until you hear a ‘rumbling’ noise in the  chimney. This means that there is definitely a  draught in the chimney and you should avoid  smoke coming back into the room.  Light the fire and shut the  door, leave the door ajar  approximately 10­15mm.  26 ...
  • Page 27 ENGLISH  RAIS ­ manual for Rais 700  When the flames are clear, after approximately 5­10  minutes, close the door.  Damper  ­  see adjustment of the damper.  After approximately 10­20 minutes, when you have a  good bed of glowing embers, add 2­3 pieces of wood.  Leave the door ajar until the fire has caught properly,  then close the door.  Damper  ­  see adjustment of the damper.  After approximately 5 minutes, or when the flames are  clear and stable, close the damper gradually.  It is recommended to have a layer of approximately  20mm, as it has an insulating effect.  NOTE!  During operation the  door should always  remain closed. 27 ...
  • Page 28: Maintenance

    ENGLISH  RAIS ­ manual for Rais 700  MAINTENANCE  Cleaning and care  The wood burning stove and the chimney must be serviced by a chimney sweep twice a  year.  During cleaning and care, the stove must be cold.  If the glass is sooty:  ­  Moisten a piece of paper or newspaper, dip it in the ash, and rub the sooty glass with it.  ­  Now rub with a dry piece of paper and the glass will become clean.  ­  As an alternative you can use glass cleaner, which you can buy from you RAIS  distributor.  Clean the exterior with a dry sponge or a soft brush.  Cleaning the combustion chamber:  Scrape/shovel the ash out and store it in a non­flammable container until it has cooled  down. You can dispose of ash with your normal household waste or recycle on the  garden.  REMEMBER!!  Never remove all the ashes from the combustion chamber ­ the wood will burn at its best  with a layer of ashes of approx. 20 mm.  Prolonged periods of non­use:  If the stove is to be left unused for a prolonged period of time then it should be given a  thorough clean to remove ash and unburned fuel residues. To enable a good flow of air  through the appliance to reduce condensation and subsequent damage, leave the air  controls fully open.  Prior to a new heating season, it should be checked that the chimney and flue pipe  connector are not blocked.  Chimney cleaning  The chimney should be swept at least twice a year. It is important that the flue connection  and chimney are swept prior to lighting up after a prolonged shutdown period.  If the stove is fitted in place of an open fire then the chimney will require sweeping after a  month of continuous operation. This is a precaution to ensure that any “softer” deposits left  from the open fire usage have not been loosened by the higher flue temperatures gener­  ated by the closed stove.  In situations where it is not possible to sweep through the stove the installer will have pro­  vided alternative means, such as a soot door.  After sweeping the chimney the stove flue  outlet and the flue pipe connecting the stove to the chimney must be cleaned with a flue ...
  • Page 29: Cleaning The Flue Ways

    ENGLISH  RAIS ­ manual for Rais 700  Cleaning the flue ways The flue ways consist of a baffle plate and a smoke  conductor above. These parts are screwed together.  Both parts are made of Vermiculite.  Handle these parts carefully.  Lift the baffle plate a little and push towards one of the  sides.  Remove the baffle plate by lifting it upwards and tilting on  it’s end.  Gently take out the baffle plate.  Now there is a clear view of the smoke exit.  Remove any dirt / dust and put the parts back in, in  reverse order.  NB  Make sure that the baffle plates are level with the  hole in the back of the stove.  29 ...
  • Page 30: Problem Solving

    ENGLISH  RAIS ­ manual for Rais 700  Problem solving  Smoke spillage around door:  ­ could be due to too low draught in the chimney <12Pa  ­  check if the flue or chimney is blocked  Soot on glass:  ­  could be because the firewood is too wet.  ­  make sure that the stove is heated properly when firing up, prior to closing the door  ­  could be because the damper regulation is too low.  A stove burning too strong could be caused by:  ­  a leak around the door seal  ­  chimney draught too large >22 Pa, draught control regulator should be installed.  A stove burning too weakly could be caused by:  ­  too little firewood  ­  too little air supply for the room ventilation  ­  dirty smoke channels  ­  leaking chimney  ­  leakage between chimney and flue  If your stove continues to malfunction, we recommend that you contact your RAIS  distributor or chimney sweep.  IMPORTANT!!  To ensure safe burning there must be clear yellow flames or clear embers at all times. The  firewood should not be smouldering. Therefore, you should never completely cut off the air  supply.  WARNING!!  In case of chimney fire:  ­  shut off all air supply on the wood burning stove ...
  • Page 31: Do's And Don'ts

    ENGLISH  RAIS ­ manual for Rais 700  DO’S AND DON’TS  Do’s Sweep the chimney / flue twice a year. · Service the appliance at least once a year · Dry, burn dry wood only. Use a moisture meter if unsure. · Spares, only use genuine Rais spare parts · Contact your dealer if you are unsure about the operation of your stove. · Line and insulate the chimney. · Use a qualified installer ( HETAS ) or building control. · Spend time with your stove ­ get to know how your stove and chimney  · works.  Don’ts Overload your stove with wood. · Overfire, allow your stove to get too hot. Use a stove thermometer. · Burn poor quality fuel ­ painted / treated wood. · Slowburn ­ this can damage your stove and / or chimney ­ please take  · advice from an expert first. Closedown too soon ­ never load your stove and close down the air supply ­  · always burn off the gasses first ­ seek advice if in doubt. 31 ...
  • Page 32: Accessories And Spare Parts

    ENGLISH  RAIS ­ manual for Rais 700  ACCESSORIES AND SPARE PARTS  If spare parts other than those recommended by Rais are used, the warranty is voided. 7090501MON  Stand  7090506  Telescopic support  7091790  Air system manifold kit  7091301SV  Special adaptor  70914Spec  Special frame  Spare parts are available to order from your Rais dealer / stockist.  7091401SORT  Complete cover  7092090  Steel door  7091090  Glass door  7092200  Fire brick set  7090990  Air damper  7090101MON  Convection box  7095500  Seal set  32 ...
  • Page 33 ENGLISH  RAIS ­ manual for Rais 700 ...
  • Page 34 ENGLISH  RAIS ­ manual for Rais 700  U K Distributor.  Robeys Ltd.  Riverside, Goods Road, Belper,  Derbyshire, England.  DE56 1UU  Tel: 01773 820940  Fax: 01773 820477  E Mail: info@robeys.co.uk  www.robeys.co.uk  34  June 2011...
