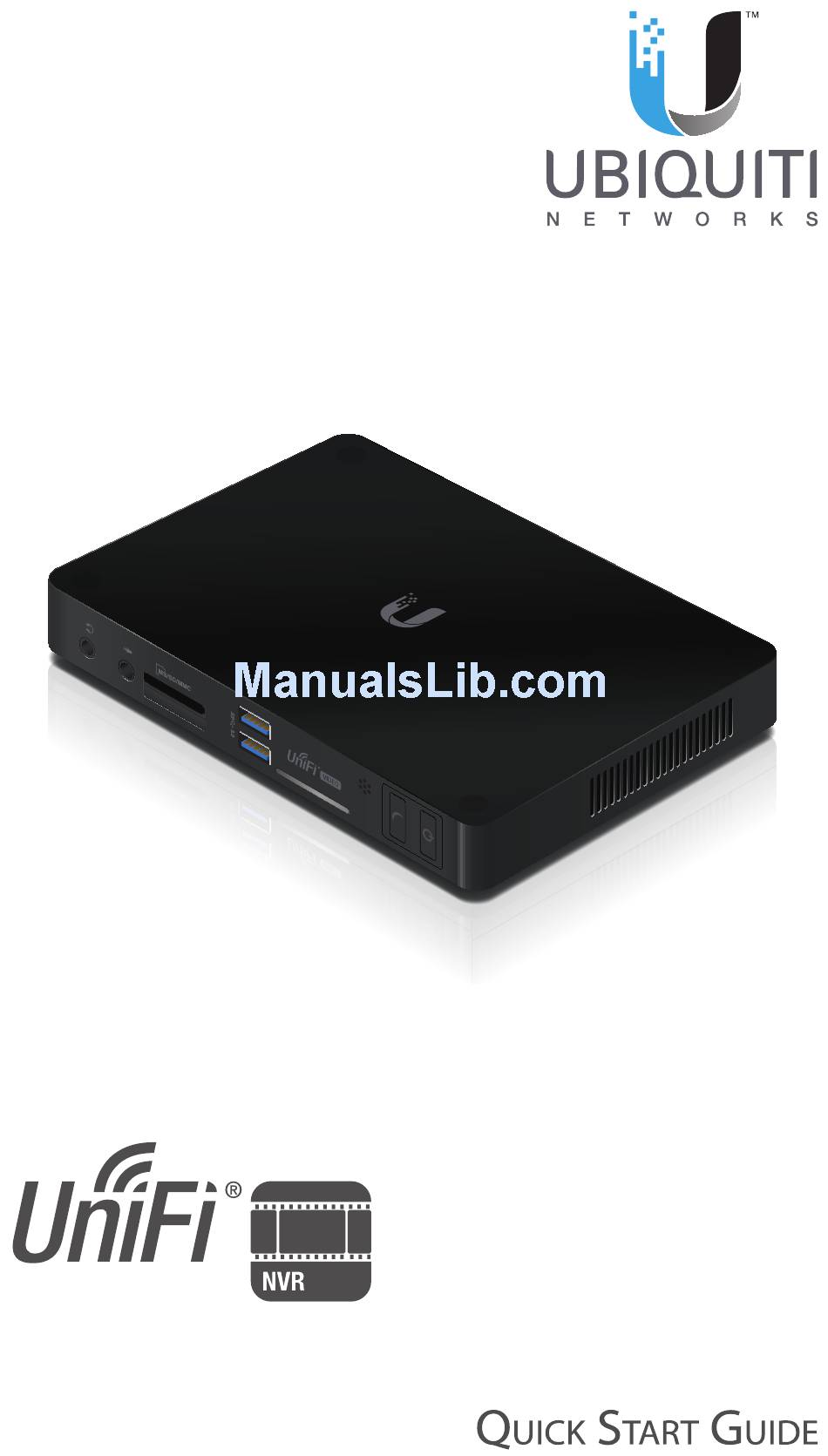

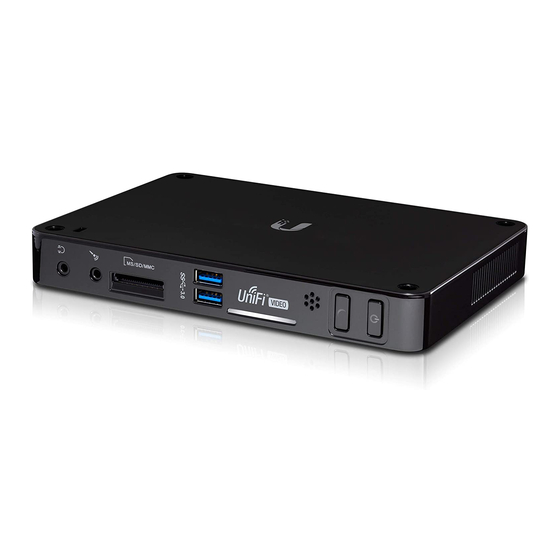

  • Page 1 Video Camera Network Video Recorder with 500 GB Hard Drive Model: UVC-NVR...
  • Page 2: Package Contents

    UniFi Video Controller using the UniFi Video Setup Wizard. This Quick Start Guide also includes the warranty terms. The UniFi Video User Guide is available for download at downloads.ubnt.com/unifivideo Package Contents UniFi NVR Vertical Support Stand Power Adapter Power Cord (19V, 3.42A)
  • Page 3: Hardware Overview

    Interface Description Powers ON or OFF the UniFi NVR. • Power ON Press the Power button to turn on the UniFi NVR and start all services. • Soft Power OFF Briefly press the Power Power Button button to stop all services and safely shut down the UniFi NVR.
  • Page 4: Hardware Installation

    Hardware Installation The small form factor of the UniFi NVR allows it to be placed vertically or horizontally on any flat surface. Vertical Placement Place the UniFi NVR in the narrow opening of the Vertical Support Stand.
  • Page 5: Horizontal Placement

    Horizontal Placement Place the four Magnetic Rubber Feet on the bottom of the UniFi NVR case.
  • Page 6 Connecting the UniFi NVR 1. Connect an Ethernet cable from your LAN to the Ethernet port. 2. Connect the Power Adapter to the Power port. *640-00069-03* 640-00069-03...
  • Page 7 If it is not already installed, download the Ubiquiti Device Discovery Tool (v2.3.1) at www.ubnt.com/download#app 1. Press the Power button on the UniFi NVR, and wait about one minute for it to fully boot up and start all services. 2. Launch the Ubiquiti Device Discovery Tool.
  • Page 8 3. A list of Ubiquiti devices on the network will appear. Locate UVC-NVR under Product Name and double‑click it. 4. Click Web UI on the right. 5. Go to Configuring the UniFi Video Controller.
  • Page 9 1. Connect the Ethernet cable from the UniFi NVR directly to your computer. 2. Press the Power button on the UniFi NVR, and wait about one minute for it to fully boot up and start all services. 3. Configure the Ethernet adapter on your computer with a static IP address on the 192.168.1.x subnet.
  • Page 10 Configuring the UniFi Video Controller 1. The UniFi Video Configuration Portal will appear in your browser. Click UniFi Video Controller. Note: Advanced configuration options, such as network settings, may be accessed in Device Configuration. 2. The UniFi Video license agreement appears on initial launch.
  • Page 11 3. The UniFi Video Setup Wizard will appear: a. Enter a system name for the NVR. b. Select your preferred language. c. Specify your time zone. d. Click Next. 4. Enter an administrator email address, name, and password to use when accessing the UniFi Video Controller Interface. Confirm your password.
  • Page 12 5. Choose one of the following: • To set up this UniFi NVR as a new controller, select Create as new Controller. Click Next. • To link this UniFi NVR to an existing UniFi Video Controller, click Detect Controllers and select the Controller from the drop‑down list.
  • Page 13 7. The UniFi Video login screen will appear. Enter the email address and password that you created, and click Login. For detailed information on using the UniFi Video software, download the UniFi Video User Guide at: documentation.ubnt.com/unifivideo...
  • Page 14: Specifications

    Specifications UniFi NVR Dimensions 135 x 190 x 25 mm (5.31 x 7.48 x 0.98") Weight 483 g (17 oz) Processor Intel D2550 Memory 4 GB Hard Drive Capacity 500 GB Networking Interface (1) 10/100/1000 Ethernet Port Power Supply 65W, 19V, 3.42A...
  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 16: Limited Warranty

    Limited Warranty UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s) furnished hereunder (the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’...
  • Page 17: Limitation Of Liability

    Disclaimer EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS...
  • Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
  • Page 19: Industry Canada

    Industry Canada This Class B digital apparatus complies with Canadian CAN ICES‑3(B). This device complies with Industry Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 22: Declaration Of Conformity

    Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi [Czech] ustanoveními sm rnice 1999/5/ES. Dansk Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav [Danish] og øvrige relevante krav i direktiv 1999/5/EF.
  • Page 23: Online Resources

    Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB [Lithuanian] Direktyvos nuostatas. Malti Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma [Maltese] provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Norsk UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI NETWORKS device, er i samsvar med de grunnleggende krav og...
  • Page 24 w w w . u b n t . c o m ©2013‑2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, TOUGHSwitch, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
