Summary of Contents for Ubiquiti UniFi ULED-AT-2

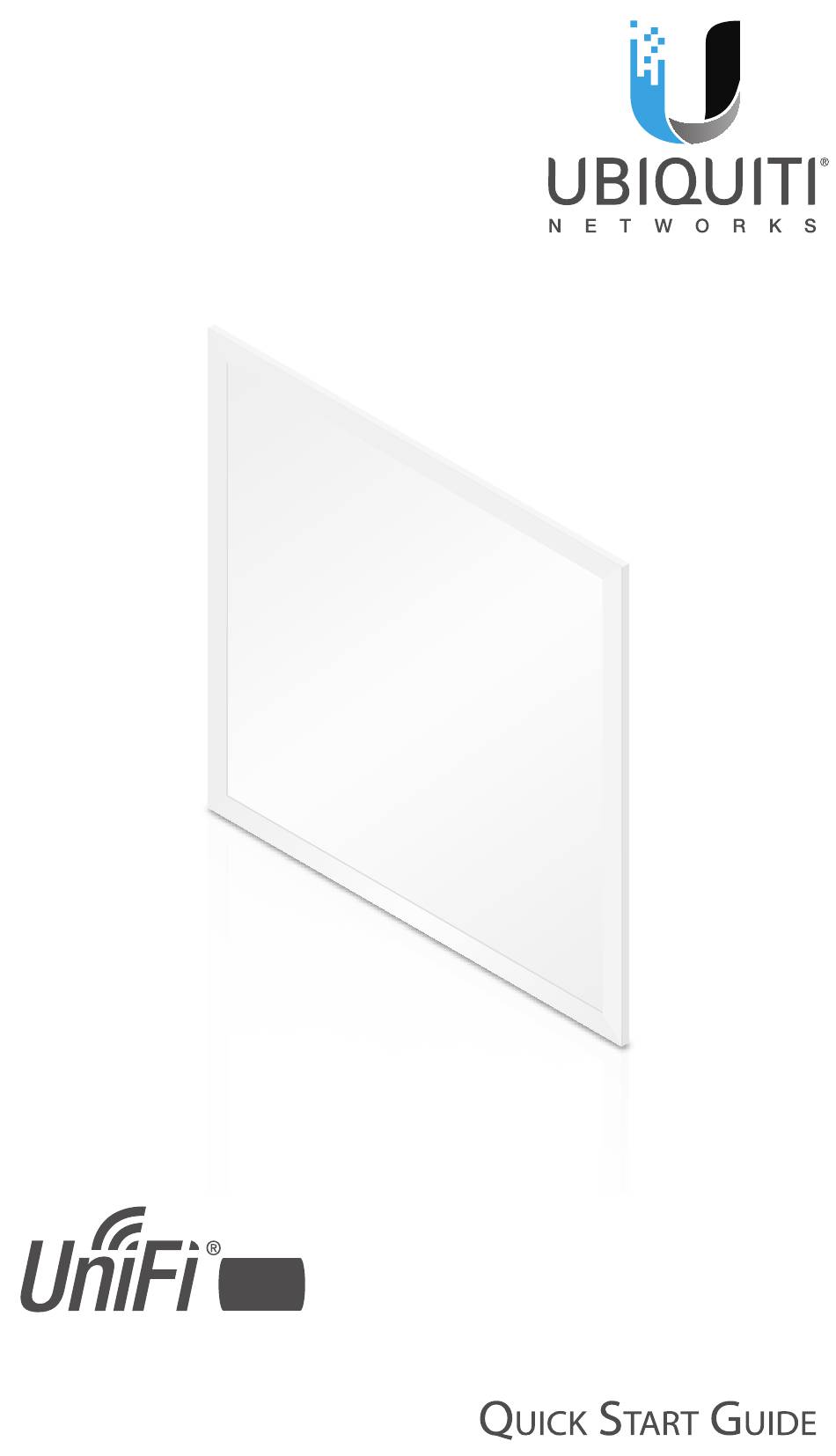

- Page 1 Network-Managed LED Panel Powered by PoE+ Model: ULED-AT...
- Page 2 • Web browser: Google Chrome (Other browsers may have limited functionality.) • UniFi Dimmer Switch, model UDIM-AT or UDIM-AC TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™...
- Page 3 Network Topology Requirements There are three ways to control the UniFi LED Panel: UniFi Dimmer Switch Users in the immediate vicinity control the UniFi LED Panel using the UniFi Dimmer Switch. UniFi LED App over Layer 2 Network A local user runs the app to connect to a UniFi AP on the same Layer 2 network as the UniFi LED Panel.
- Page 4 Network topology requirements are as follows: • DHCP-enabled network (for the UniFi LED Panel to obtain an IP address) • For UniFi Dimmer Switch only: A UniFi Dimmer Switch connected to the same Layer 2 network as the UniFi LED Panel •...
- Page 5 Hardware Overview Status LED LED Color Status Flashing White Initializing. Steady White System ready. Steady Blue Adopted by LED Controller. Alternating Firmware upgrade is taking place. White/Blue...
- Page 6 PoE+ Reset Port PoE+ The PoE+ port is a 10/100 Ethernet port used to connect the power and should be connected to the LAN. Power is provided by a UniFi Switch with 802.3at PoE+. Note: The PoE+ port requires 25W of power, which can be supplied by an 802.3at-compliant UniFi Switch.
- Page 7 Installation To install and configure the UniFi LED Panel: 1. Connect one end of an Ethernet cable to the PoE+ port on the back of the UniFi LED Panel. 2. Connect the other end of the cable to an 802.3at-compliant switch port that can provide 25W PoE+.
- Page 8 Configuring the UniFi LED Panel Follow the instructions for the software you wish to use: UniFi LED App 1. Install the UniFi LED app on your smartphone or mobile device. The app is available from the App Store® or Google Play Store.
- Page 9 UniFi LED Controller Software 1. Install the latest version of the UniFi LED Controller software on a computer on the same Layer 2 network as the UniFi LED Panel: • Ubuntu users Download the software from www.ubnt.com/download/unifi-led • UAS users Install the software using the UAS management console.
- Page 10 Specifications ULED-AT Dimensions 602 x 602 x 56.7 mm (23.7 x 23.7 x 2.23") Weight 4.5 kg (9.92 lb) Networking Interface 10/100 Mbps Ethernet Port Connectivity Bluetooth 4.1 Buttons Reset LEDs Status Power Method 802.3at PoE+ Supported Voltage Range Standard PoE+ 42.5-57.0V Max.
- Page 11 Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
- Page 12 Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
- Page 13 FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products...
- Page 14 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
- Page 15 ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A-ULEDAT) has been approved by ISED Canada.
- Page 16 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 17 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
- Page 18 EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: www.ubnt.com/compliance English Hereby, UBIQUITI NETWORKS declares that the radio equipment type ULED-AT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance Eesti keel [Estonian] Käesolevaga deklareerib UBIQUITI NETWORKS, et käesolev raadioseadme...
- Page 19 Malti [Maltese] B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju ULED-AT huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn www.ubnt.com/compliance Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at utstyret ULED-AT er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på...
- Page 20 . u b n t . c o m ©2017-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc.
