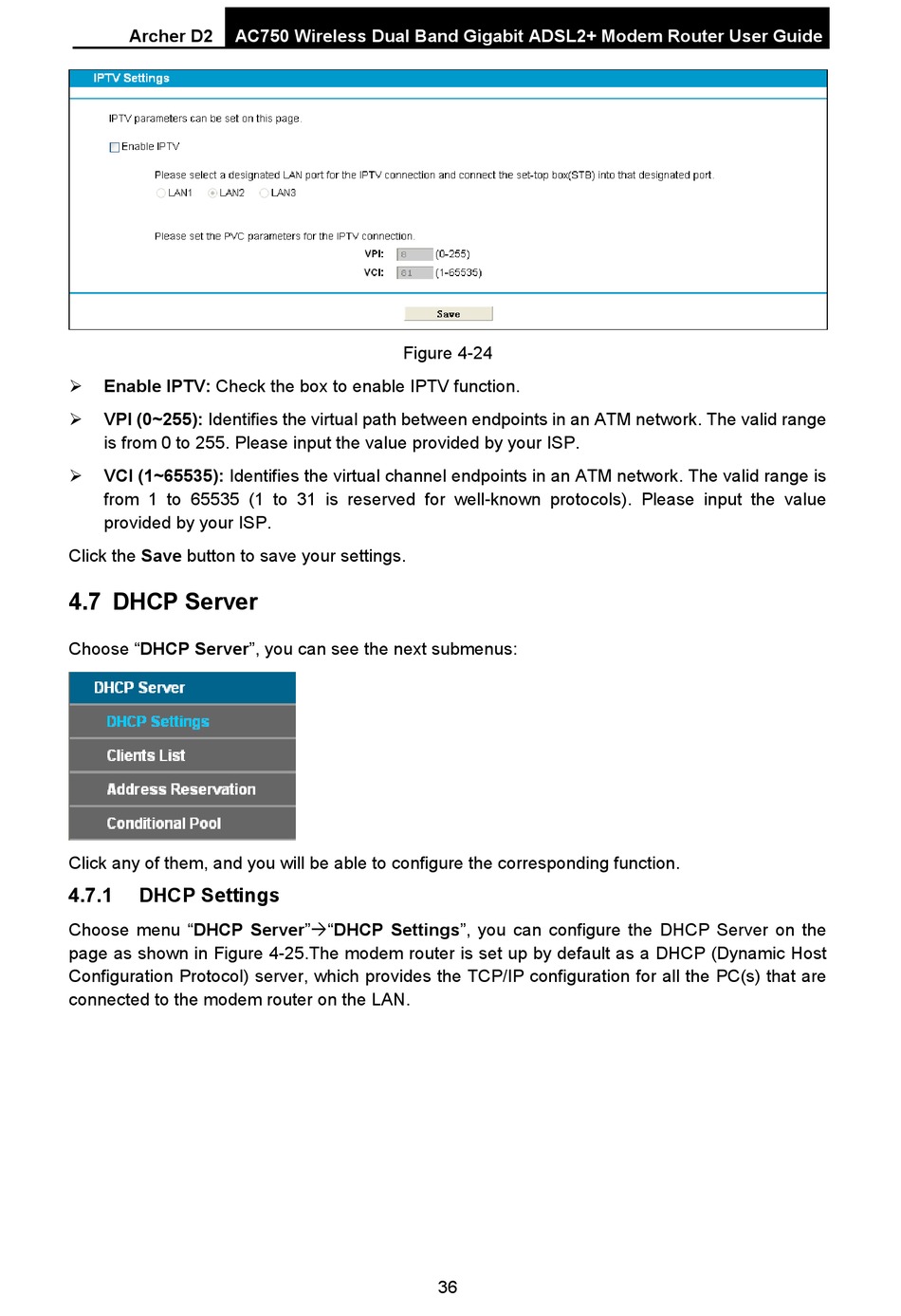

Archer D2 AC750 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
Enable IPTV: Check the box to enable IPTV function.

VPI (0~255): Identifies the virtual path between endpoints in an ATM network. The valid range

is from 0 to 255. Please input the value provided by your ISP.
VCI (1~65535): Identifies the virtual channel endpoints in an ATM network. The valid range is

from 1 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value
provided by your ISP.
Click the Save button to save your settings.

4.7 DHCP Server

Choose "DHCP Server", you can see the next submenus:
Click any of them, and you will be able to configure the corresponding function.
4.7.1

DHCP Settings

Choose menu "DHCP Server""DHCP Settings", you can configure the DHCP Server on the
page as shown in Figure 4-25.The modem router is set up by default as a DHCP (Dynamic Host
Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are
connected to the modem router on the LAN.
Figure 4-24
36
