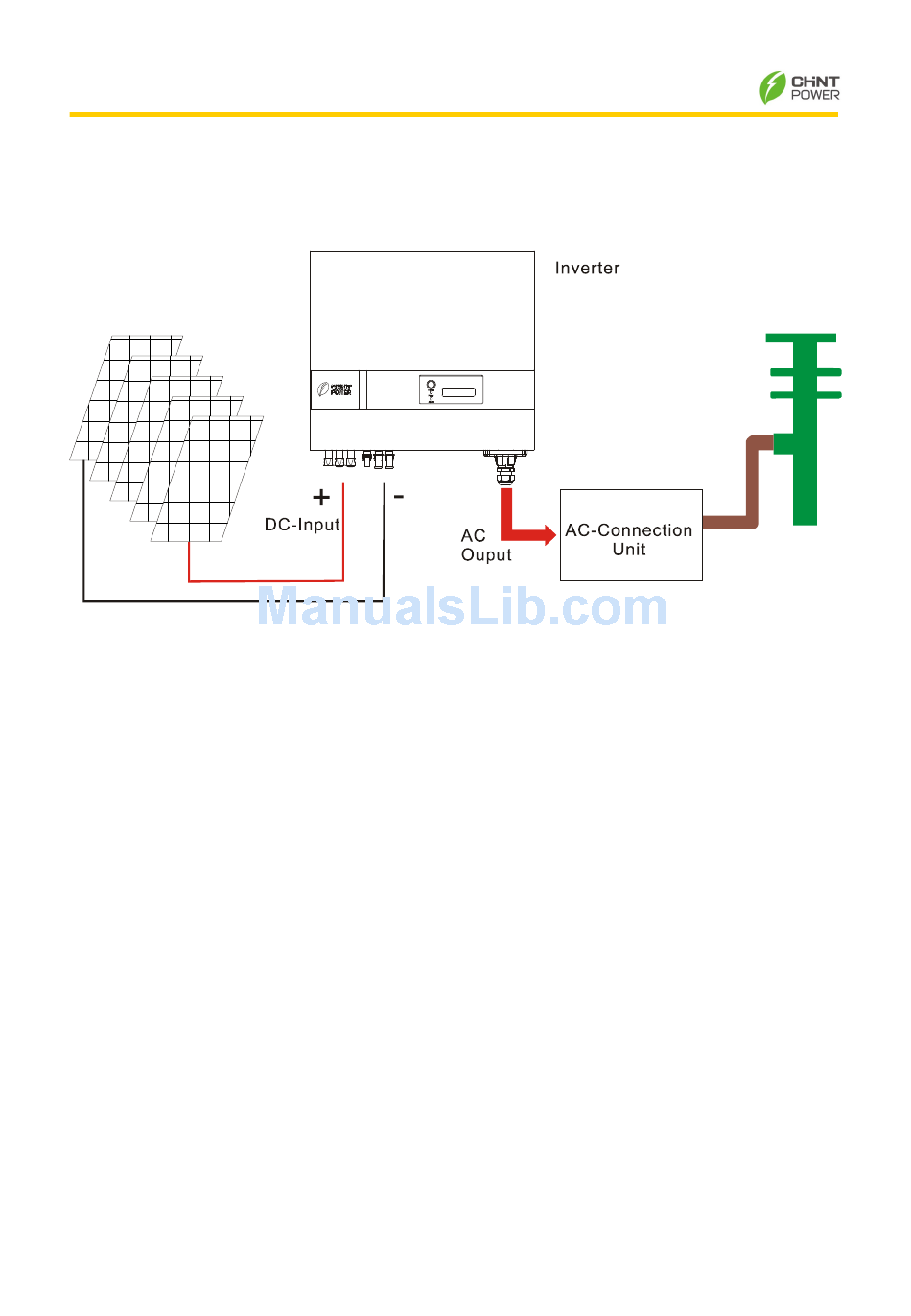

4. System Diagram
The typical connection diagram for the entire PV system is shown in the
following figure.
1.
PV Panel: Provide DC power to inverter
2.
PV-Inverter: Converts DC (Direct Current) power from PV panel(s) to
AC (Alternating Current) power. Because the PV-Inverter is
grid-connected it controls the current amplitude according to the PV
Panel power supply. The inverter always tries to convert the maximum
power from your PV panel(s).
3.
Connection system: This "interface" between Utility and PV-Inverter
may consist of electrical breaker, fuse and connecting terminals. To
comply with local safety standards and codes, the connection system
should be designed and implemented by a qualified technician.
4.
Utility: Referred to as "grid" in this manual, is the way your electric
power company provides power to your place. Please note that the
PV-Inverter can only connect to low-voltage systems (namely,
230VAC/50Hz).
Edition 3.0E, 2010/07
18
