Elo TouchSystems ETXX87C-4SWA-1 Series User Manual

15"/17"/19" crt open frame touchmonitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETXX87C-4SWA-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elo TouchSystems ETXX87C-4SWA-1 Series

Summary of Contents for Elo TouchSystems ETXX87C-4SWA-1 Series

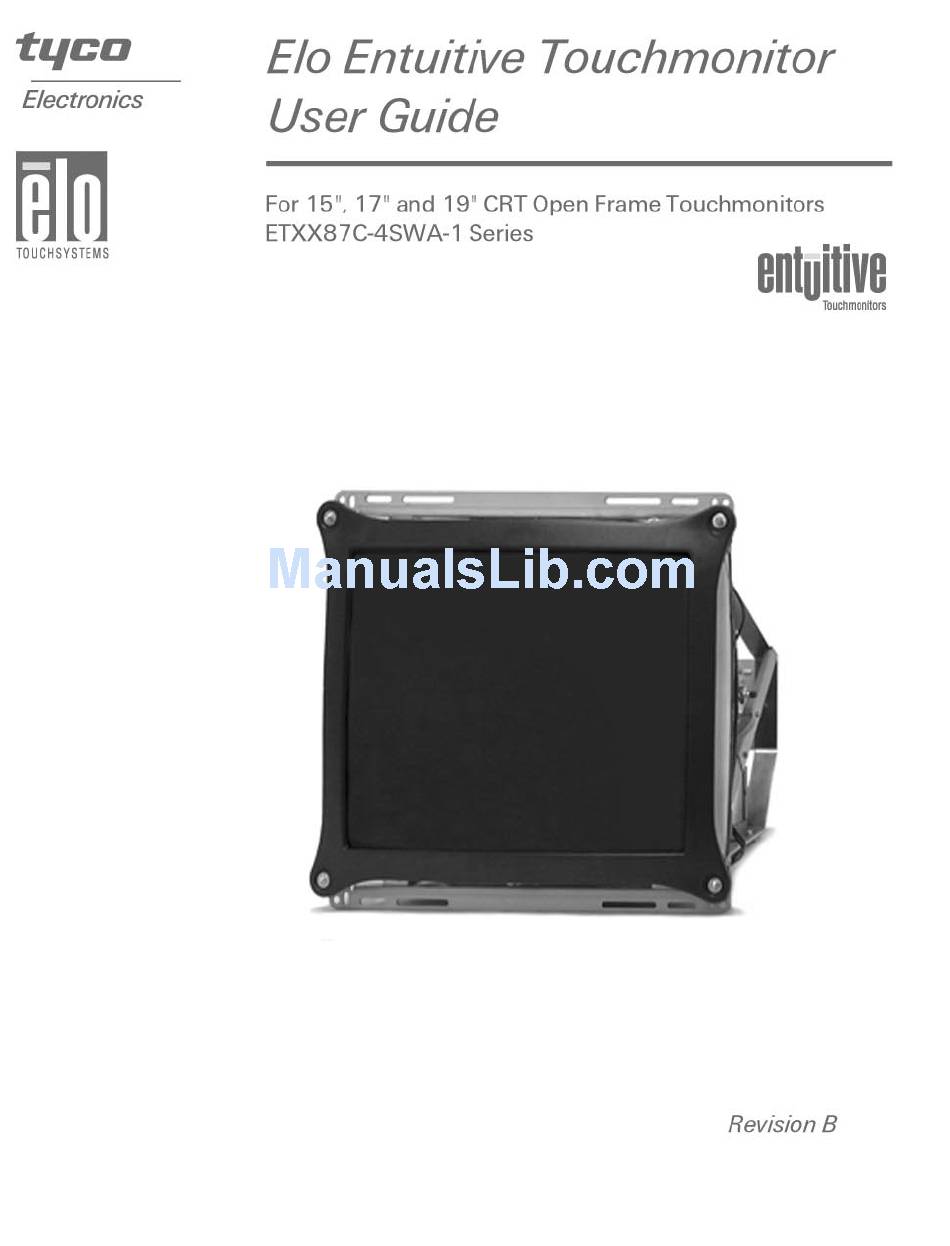

  • Page 2 Elo Entuitive Touchmonitor User Guide For 15", 17" and 19" CRT Open Frame Series Touchmonitors ETXX87C-4SWA-1 Series Models Revision B P/N 008551 Elo TouchSystems, Inc. 1-800-ELOTOUCH www.elotouch.com www.elogaming.com...
  • Page 4 Copyright © 2002 Elo TouchSystems Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSystems.

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 Warranty Introduction Index Precautions ....1 About the Product ....1 Chapter 2 Installation and Setup Unpacking Your Touchmonitor.

  • Page 8: Introduction

    H A P T E R NTRODUCTION HAPTER Congratulations on your purchase of an Elo TouchSystems Entuitive touchmonitor. Your new high-resolution touchmonitor combines the reliable performance of Elo’s touch technology with the latest advances in CRT display design. This combination of features creates a natural flow of information between a user and the touchmonitor.
  • Page 9 • RS-232 touch interface. E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...

  • Page 10: Installation And Setup

    H A P T E R NSTALLATION AND ETUP HAPTER This chapter discusses how to install your CRT touchmonitor and how to install Elo TouchSystems driver software. Unpacking Your Touchmonitor Check that the following 5 items are present and in good condition: Power cord is not included.

  • Page 11: Connecting Your Touchmonitor

    Connecting Your Touchmonitor Before connecting the cables to your touchmonitor and PC, be sure that the computer MPORTANT and touchmonitor are turned off. Female 9-pin serial Video cable touchscreen connector Female 15-pin Power video connector Serial touchscreen cable Connect the Video Cable Connections on underside Female 15-pin video...

  • Page 12: Connect The Serial Touchscreen Cable

    Connect the Serial Touchscreen Cable Connections on underside Female 9-pin cable connector Video Video port cable Serial cable Ferrite bead • Connect the touchscreen cable. Connect one end to the appropriate port on the back of your computer. Connect the other end of the cable to the touchscreen connector on your touchmonitor.

  • Page 13: Connect The Power Cable

    Connect the Power Cable Connections on underside Power cable Power cable • Your monitor does not include a power cable. You may either purchase a country specific power cable from Elo (www.elogaming.com), or construct your own custom power cable (see Appendix B for details). Connect the power cable to the AC connector on your touchmonitor.

  • Page 14: Installing The Driver Software

    Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows XP • Windows 2000 • Windows Me • Windows 98 •...
  • Page 15 Installing the Touch Driver for Windows XP, Windows 2000 , Me, 95/98 and NT 4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver. Insert the Elo CD-ROM in your computer’s CD-ROM drive. If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program.

  • Page 16: Installing The Touch Driver For Ms-Dos And Windows 3.1

    Installing the Touch Driver for MS-DOS and Windows 3.1 You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: Insert the Elo CD-ROM in your computer’s CD-ROM drive.
  • Page 17 2-10 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...

  • Page 18: Operation

    H A P T E R PERATION HAPTER About Touchmonitor Adjustments By design, your Elo Entuitive touchmonitor should not require any adjustments. The factory settings will give you optimum video results with most standard PC video display adapters. However, after connecting your touchmonitor you can further optimize the settings to meet your requirements by following the directions in this chapter.

  • Page 19: Touchmonitor Controls

    Touchmonitor Controls You can adjust the screen display by using the plastic knob labeled OSD located on the right-hand side of the touch controller bracket. Using the On Screen Display (OSD) Push the OSD knob to access the OSD. Turn the OSD knob to choose the item you want to adjust. The selected item is highlighted.

  • Page 20: Osd Adjustments

    OSD Adjustments Symbol Function Process H. Size Adjusts the horizontal size of the entire screen image. H. Position Adjusts the horizontal position of the entire screen image. V. Size Adjusts the vertical size of the entire screen image. V. Position Adjusts the vertical position of the entire screen image.
  • Page 21 S. Correct Corrects vertical center linearity. C. Correct Corrects vertical top and bottom linearity. Clears vertical moire if a series of concentric circles or arcs appear on your screen. Note: Moire is an interface pattern that makes the screen seem V.
  • Page 22 If you have moved the display unit, you should perform demagnetization. Demagnetizing takes place automatically when the display unit is switched on, and the unit normally maintains faultless color purity during operation. If you have tilted, swiveled or moved the display unit, you can Degauss perform demagnetization.
  • Page 23 Figure 3.2 9300 6500 Figure 3.3 Figure 3.4 3-16 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...

  • Page 24: Troubleshooting

    H A P T E R ROUBLESHOOTING HAPTER Problem Suggestion (s) No picture. Your touchmonitor may not be getting power. Make certain that your power strip is plugged into the wall socket and that the PC and touchmonitor are plugged in and powered on. Test the power supply by trying different cables or a different wall outlet, or by plugging another appliance into the outlet.
  • Page 25 Problem Suggestion (s) Picture appears “washed out”. Readjust your brightness and contrast settings. Picture not present or severely Verify that your video display adapter settings are distorted. formatted for the correct resolution and vertical refresh rates. Duplicated images A problem with your graphics adapter or touchmonitor.

  • Page 26: Appendix A Touch Technology

    P P E N D I X OUCH ECHNOLOGY HAPTER Touchscreens: An Overview Typically, users communicate with computers by using a mouse, a keyboard, or a combination of the two. Users who are not keyboard-literate or mouse-savvy can become frustrated with how long human-to-computer interactions take. Computer literacy is learned.

  • Page 27: Itouch Touchscreens

    iTouch Touchscreens Elo built on its IntelliTouch surface wave technology to create its iTouch "touch-on-tube" solution. Elo eliminated the clear glass layer between the viewer and the display. iTouch touchmonitors have been adopted by some of the largest manufacturers in the world in their next generation games. Elo CRT gaming monitors offer consistent features across all sizes: •...
  • Page 28 P P E N D I X OUCHMONITOR AFETY HAPTER As this equipment is received it presents an electrical shock hazard that could DANGER result in serious injury or death. Only qualified persons should work around this equipment when it is energized. This equipment is intended to be used by a manufacturer only for building-in to other equipment which will provide a proper electrical and fire safety enclosure.
  • Page 29 Should you wish to construct your own custom power cable, Elo highly recommends using AMP "Mate-N-Lock" part number 350766-1 and male type contacts, AMP part number 350547-1. After connecting the power cable to the monitor, but before applying power, ensure that the power cable’s black or brown wire connects to the monitor’s brown wire;...

  • Page 30: Technical Specifications

    P P E N D I X ECHNICAL PECIFICATIONS HAPTER All specifications are subject to change. Touchmonitor Specifications 19"Monitor 17" Monitor 15" Monitor Picture Tube 19” (18” diagonal viewable 17” (15.7” diagonal 15” (13.8” diagonal image), 0.25-mm dot pitch. viewable image), 0.27-mm viewable image), 0.28-mm dot pitch.
  • Page 31 19"Monitor 17" Monitor 15" Monitor Typical Power 75 watts 65 watts 60 watts Consumption Power Compliant with EPA/Energy Compliant with EPA/Energy Compliant with EPA/Energy Management Star, VESA DPMS signaling Star, VESA DPMS signaling Star, VESA DPMS signaling method. method. method. Plug and Play Compliant with VESA DDC Compliant with VESA DDC...
  • Page 32 Table C.1 iTouch Touchmonitor Specifications Mechanical Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%. Touchpoint Density More than 100,000 touchpoints/in (15,500 touchpoints/cm Touch Activation Force Typically less than 3 ounces (85 grams). Surface Durability Surface durability is that of glass, Mohs’...

  • Page 33: Signal Pinout For 15",17" And 19" Monitors

    Signal PINOUT for 15",17" and 19" Monitors PIN Number Signal Red video Green video Blue video Ground *VGA card detection (GND) Red return Green return Blue return Sync return Ground SDA (Serial Data) Horizontal Sync Vertical Sync SCL (Serial Clock) *Pin 5, self-test pin shall be grounded when signal connector is plugged in.

  • Page 34: Power Consumption

    Power Consumption The touchmonitor comes with a power-saving feature that controls its power consumption. This feature complies with both the EPA’s Energy Star requirements. It also conforms to the Display Power Management System (DPMS) power-down signaling method approved by the Video Electronics Standard Association (VESA).

  • Page 35: Preset Timing Table

    Preset Timing Table Your Elo Entuitive touchmonitor has 5/4 preset timing modes. The following are modes preset as factory defaults: Horizontal Resolution Frequency Refresh Rate 640x400 31.5 kHz 70 Hz 640x480 31.5 kHz 60 Hz 640x350 31.5 kHz 70 Hz 800x600* 53.7 kHz 85 Hz...

  • Page 36: Regulatory Information

    EGULATORY NFORMATION HAPTER Electrical Safety Information A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation or damage to the equipment, or may pose a fire hazard if the limitations are exceeded.
  • Page 37 1) In order to meet emission and immunity requirements, the user must observe the following: a) Use only the provided I/O cables to connect this digital device with any computer. b) To ensure compliance, use only the provided manufacturer-approved line cord. c) The user is cautioned that changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 38: Chapter 1 Warranty

    ARRANTY HAPTER Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. With the exception of negotiated warranty periods, the warranty for the toouchmonitor and components of the product is 2 years. Seller makes no warranty regarding the model life of components.
  • Page 39 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.

  • Page 40: Index

    Index Installing the Driver Software, 7 Installing the Serial Touch Driver for MS-DOS and About the Product, 1 Windows 3.1, 9 About Touchmonitor Adjustments, 11 Installing the Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT 4.0, 8 IntelliTouch Touchmonitor Specifications, 25 Bottom Corner, 13 iTouch Touchscreens, 20...
  • Page 41 Trapezoid, 13 Troubleshooting, 17 S. Correct, 14 Safety Regulations, 24 Save, 14 Sealing, 25 Unpacking Your Touchmonitor, 3 Signal PINOUT for 15” and 17” Monitors, 26 Using the On Screen Display (OSD), 12 Solutions to Common Problems, 17 Status, 14 Surface Durability, 25 V.
