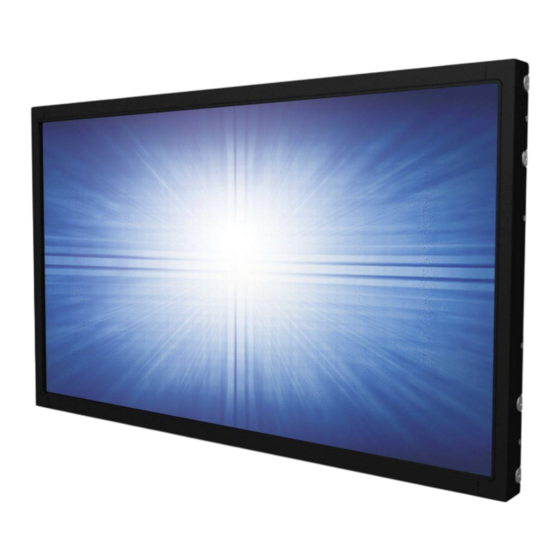

- Page 1 USER MANUAL Elo Touch Solutions ET1598L Frame Touchscreen...
- Page 2 Elo to notify any person of such revisions or changes. Trademark Acknowledgments Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and IntelliTouch are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. User Manual: ET1598L UM60119 Rev A, page 1 of 23...
-
Page 3: Table Of Contents
Section 4: Operation ..............................................9 Section 5: Technical Support ..........................................14 Section 6: Safety & Maintenance ........................................... 16 Section 7: Regulatory Information .......................................... 17 Section 8: Warranty Information ..........................................21 User Manual: ET1598L UM60119 Rev A, page 2 of 23... -
Page 4: Section 1: Introduction
This touchscreen incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The ET1598L offers resolution of 1024x768. The LED backlight significantly reduces power consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that enhance this LCD monitor’s display performance are Plug & Play compatibility, remote on-screen display (OSD) controls and flexible mounting options. -
Page 5: Section 2: Installation
VGA cable • User Manuals CD • USB cable • Japanese language regulatory information pamphlet • Mounting brackets • Quick Install Guide • OSD remote • HDMI cable • EEI label User Manual: ET1598L UM60119 Rev A, page 4 of 23... - Page 6 3. Connect a 12VDC power supply to the monitor’s input power jack. touchscreen display 4. The ships in an ON state, video should be displayed on your monitor already. Installing Power D/C 24V to D/C 12V convertor (Optional kits) User Manual: ET1598L UM60119 Rev A, page 5 of 23...
- Page 7 1. Please follow below install note to fix the kit on the back of the monitor. 2. Please connect the cable from power source to convertor via terminal block for 24V input and plug 12V DC jack to our monitor for 12V output. User Manual: ET1598L UM60119 Rev A, page 6 of 23...
- Page 8 6. Enter your email address, Click on “Next Step”. Your driver download will start automatically. 7. If you are a new user, fill in the required information and click on “Register”. Your driver download will start automatically. User Manual: ET1598L UM60119 Rev A, page 7 of 23...
-
Page 9: Section 3: Mounting
Section 3: Mounting Side Bracket Mount Side-mount Bracket Installation Notes: Bracket shape varies for each model, drawing for illustration purposes only. See dimensional drawing for exact dimensions. User Manual: ET1598L UM60119 Rev A, page 8 of 23... - Page 10 Rear VESA Mount A four-hole (75x75mm, 100x100mm) mounting pattern for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-E,C. User Manual: ET1598L UM60119 Rev A, page 9 of 23...
-
Page 11: Section 4: Operation
Your touchscreen display is factory-calibrated and should not need manual calibration (unless the input video is not fully scaled to the native resolution, or the touch experience needs to be calibrated to a specific user). User Manual: ET1598L UM60119 Rev A, page 10 of 23... - Page 12 Decrease value of selected parameter / select previous menu item Display OSD Brightness submenu Increase value of selected parameter / select next menu item Select Display Video Priority submenu Select parameter for adjustment / select submenu to enter User Manual: ET1598L UM60119 Rev A, page 10 of 23...
- Page 13 R, G, and B gains on a scale from 0 to 100. Default: User Defined Color Temperature with R, G, and B all set to 100. User Manual: ET1598L UM60119 Rev A, page 11 of 23...
- Page 14 Press and hold the “Menu” and “Up” buttons for two seconds to enable/disable the Power Locking feature. When the Power Locking is enabled, pressing the power switch will have no effect on the system. User Manual: ET1598L UM60119 Rev A, page 12 of 23...
-
Page 15: Section 5: Technical Support
Can’t wake on touch Check to see if the OSD touch on sleep function is disabled Only have two touches Check to see if the OSD touch through function is on User Manual: ET1598L UM60119 Rev A, page 13 of 23... - Page 16 See this user manual’s last page for worldwide technical support phone numbers. User Manual: ET1598L UM60119 Rev A, page 14 of 23...
-
Page 17: Section 6: Safety & Maintenance
Monitors are not designed for outdoors. Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: ET1598L UM60119 Rev A, page 15 of 23... -
Page 18: Section 7: Regulatory Information
Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 2014/30/ EU as indicated in European Standard EN 55032 Class B and the Low Voltage Directive 2014/35/EU as indicated in European Standard EN 60950-1. User Manual: ET1598L UM60119 Rev A, page 16 of 23... - Page 19 Australia RCM • • Mexico CoC Canada CUL, IC • • Taiwan BSMI China CCC • • United States FCC, UL Europe CE TUV • • International CB Japan VCCI User Manual: ET1598L UM60119 Rev A, page 17 of 23...
- Page 20 20% to 80% (non-condensing) Altitude 0 to 3,048m Storage Conditions Temperature -20°C - 60°C (Over 40°C, the humidity shall be below 60%) Humidity 10% to 95% (non-condensing) Altitude 0 to 12,192m User Manual: ET1598L UM60119 Rev A, page 18 of 23...
-
Page 21: Section 8: Warranty Information
Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual: ET1598L UM60119 Rev A, page 22 of 23... - Page 22 Notes User Manual: ET1598L UM60119 Rev A, page 23 of 23...
- Page 23 www.elotouch.com Visit our website for the latest • Product Information • Specifications • Upcoming Events • Press Releases • Software Drivers • Touchmonitor Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. North America Europe Asia-Pacific...
