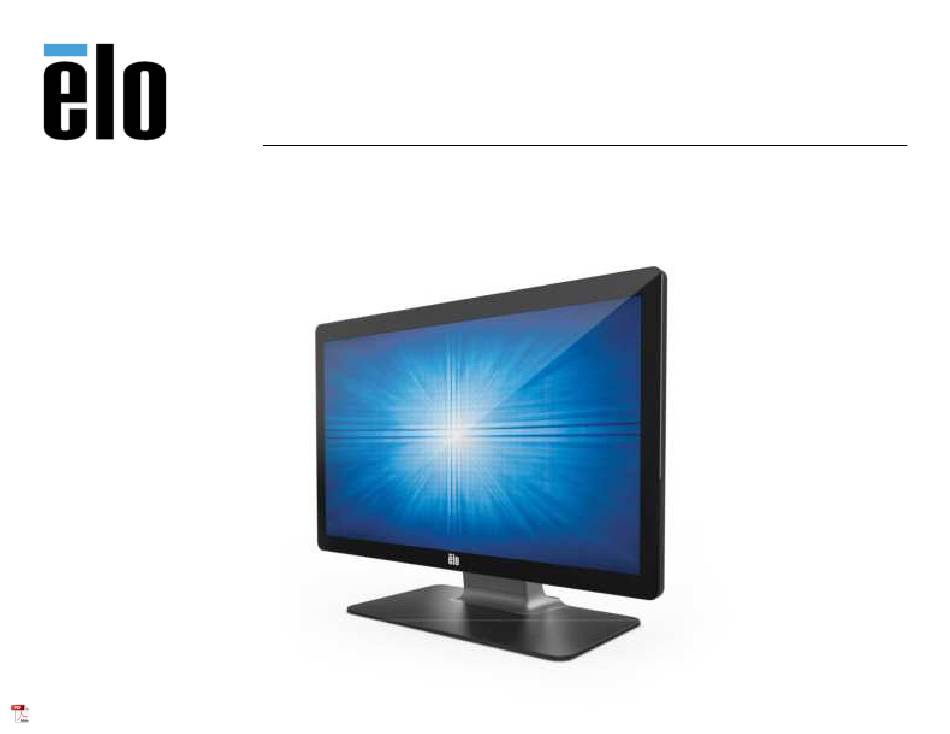

- Page 1 USER MANUAL Elo Touch Solutions ET1902L, ET2202L, ET2402L, ET2702L UM600162 Rev B...
-
Page 2: Section 2: Installation
HDMI cable • USB cable • Audio cable • Power brick • Europe power cord • North America power cord • 3 x tie wraps • EEI Label • 2 x cable cover screws User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 3: Connector Panel
4. Connect the power adaptor’s input connector to the power source. Connect the power adaptor’s DC output connector to the monitor’s input power jack. 5. The touch monitor ships in an OFF state. Press the power button to turn it on. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 4 To download the latest touch drivers: 1. Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx 2. Select the operating system from the Operating System drop-down menu. 3. Select the technology from the Technologies drop-down menu. 4. Download the driver version required for your touch monitor. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 5: Section 3: Mounting
A four-hole 100 x 100 mm mounting interface for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access the mounting interface. The VESA FDMI-compliant counting is coded VESA MIS-B, 75, C and VESA MIS-D, 100, C. User Manual ET1902L, ET2202L, ET2402L, ET2702L... -
Page 6: Base Mount
Base Mount The VESA FDMI-compliant counting is coded VESA MIS-E, C. ET1902L & ET2202L base mounting options are shown below. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 7 ET2402L & ET2702L base mounting options shown below. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
- Page 8 Your monitor comes with four pheripheral ports, located at the top, bottom, left and right sides of the monitor. To mount an MSR, remove one of the pheripheral port covers with your finger tips and install the MSR as shown below. Please refer to the MSR Quick Install Guide (QIG) for set-up details. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
-
Page 9: Wall Mount
Attach the other bracket to the monitor using the four M4 screws included in the kit. Hang the monitor on the wall bracket and secure using two M3 screws included with the kit on the left and right side of the bracket. User Manual ET1902L, ET2202L, ET2402L, ET2702L... - Page 10 Optional handles can be installed on 02 Series monitors, as shown below. Please note that it is not recommended to use handles to carry the touch monitor. Damage to the touch monitor will occur if the touch monitor is lifted by the handles. Use handles only to adjust the tilt angle. User Manual ET1902L, ET2202L, ET2402L, ET2702L...
