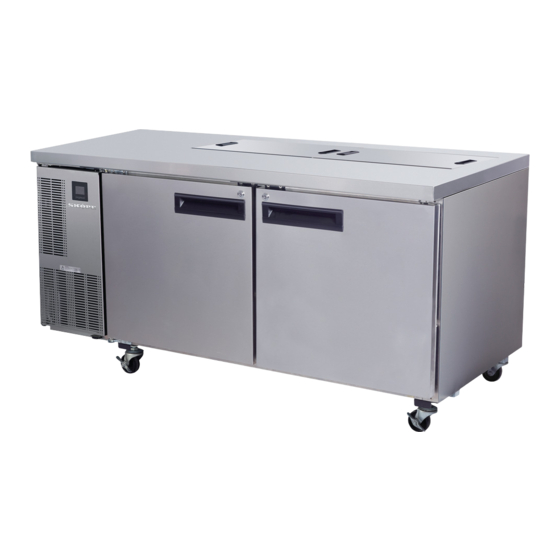

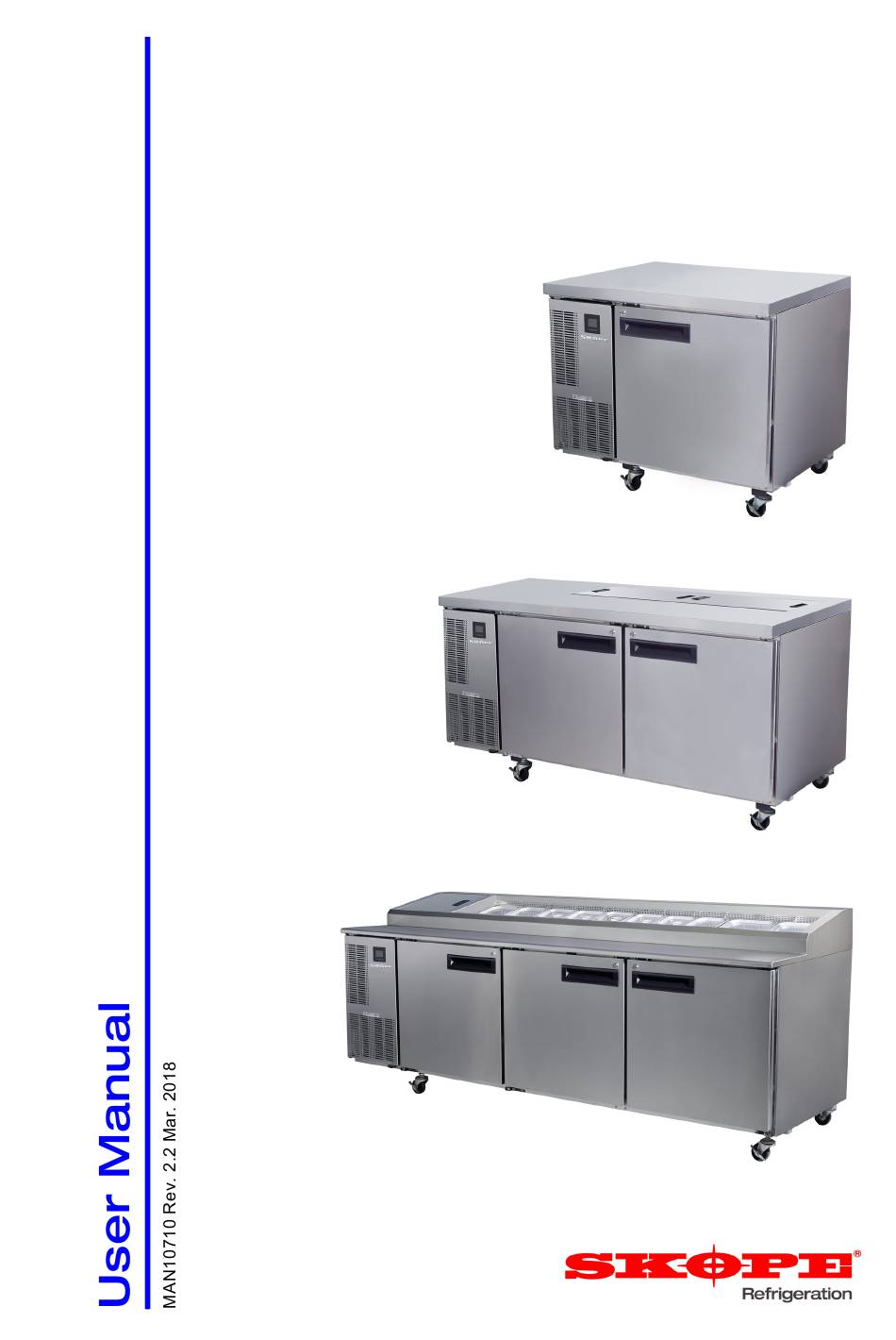

- Page 1 SKOPE PEGASUS PG Horizontal Series 1-1 & 2-1 Chillers & Freezers PG200HC PG500Prep PG800Pizza...
- Page 2 For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines.
-
Page 3: Table Of Contents
CONTENTS Models Undercounter ..........4 Prep. -
Page 4: Models
Model Part No. Config. Doors unit range PG500Pizza JK9302 2-1 chiller Integral PG800Pizza JK9303 2-1 chiller Integral +1°C to +5°C up to 30°C ambient PG500Pizzar JK6302 2-1 chiller Remote PG800Pizzar JK6303 2-1 chiller Remote SKOPE Pegasus Horizontal Series User Manual... -
Page 5: Installation
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Please contact SKOPE customer services for advice regarding disposal of this appliance. CAUTION Never overload the power supply, which could damage the chiller and product. -
Page 6: Locating The Cabinet
Adequate allowance should be made for door opening. Always ensure that the top of the cabinet is shielded from impact and moisture, with either a SKOPE provided bench top, or with a custom or existing bench top. Prep and Pizza chillers have pan openings with lids on the top of the cabinet. -
Page 7: Positioning The Cabinet
2-1 plinth mount cabinets have a flat base and are fitted with a plinth surround, ready for positioning in place. When installing plinth mounted remote refrigeration cabinets, refer to seperate technical installation and specification documentation (SKOPE part number: PRN10712). Legs and... -
Page 8: Shelving
SKOPE Pegasus Horizontal Series Shelving Fitting the The cabinet is supplied with two sets of shelves and shelf support brackets Shelves per door. The shelves can be positioned at different heights to suit various products. To fit the shelves 1. Unpack the shelving items from inside the cabinet. -
Page 9: Pans And Lids
SKOPE Pegasus Horizontal Series Pans and Lids Prep and Pizza chillers are supplied with food preparation pans and sliding lids which fit into openings on top of the cabinet. Refer to the tables below for standard pan and lid quantities:... - Page 10 SKOPE Pegasus Horizontal Series To fit sliding lids 1. Lift the rails from the well, leaving the ends resting on one side of the cabinet top. 2. Configure the lids as required with the notched ends meeting on the inside, and slide the lower lids into the rails.
-
Page 11: Remote Cabinets
SKOPE Pegasus Horizontal Series Remote Cabinets Refrigeration Practice Installation must be performed by a refrigeration tradesperson, to an appropiate standard complying with all local regulations. Performance depends on the overall installation (including condensing unit). Cabinet suitability must always be quantified for the application. The final responsibility for condensing unit performance and component selection rest with the installer. -
Page 12: Electrical
SKOPE Pegasus Horizontal Series Electrical The cabinet is supplied with a 10A flexible power cord and 3-pin plug. The cabinet lighting and centre pillar heater elements are protected by a 3A fuse, located in the unit junction box. Once the chiller has been installed it can be disconnected from the mains... - Page 13 SKOPE Pegasus Horizontal Series Pegasus Horizontal 2-1 installation diagram Refrig. pipes Service port (back of cabinet) Side view Front view Mains isolation box 19mm Service port (bottom drain tube of refrigeration unit Cabinet compartment) front 115 150 Cabinet Bottom view...
-
Page 14: Operation
HACCP If Hazard Analysis Critical Control (HACCP) functions are required, to monitor food storage temperature, please contact SKOPE to arrange for an authorised SKOPE service technician to setup the electronic controller. Pans and Lids For correct operation of Prep and Pizza chillers, the pan lids must stay on the cabinet and should cover the food preparation pans when not in use. -
Page 15: Electronic Controller
SKOPE Pegasus Horizontal Series Electronic Controller Item Icon Function Mute / program: Mutes the audible alarm (buzzer) and deactivates the alarm relay. To initiate program sets, press for 5 seconds. Up: To scroll settings up (in program mode). Set point: If pressed for more than 2 seconds displays and / or enables changing the temperature setpoint. -
Page 16: Controller Overview
The chiller temperature setpoint is factory set and can be adjusted if Setpoint necessary. SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. To view and adjust the temperature setpoint 1. -
Page 17: Controller Alarms
Flashing To reset alarm - unplug the cabinet from the power supply for 1 minute, then reconnect to Defrost over-time None power supply. limit 1. If alarm persists, contact SKOPE. Real-time clock fault Flashing Controller E prom error Flashing Controller E prom... -
Page 18: Servicing
SKOPE Pegasus Horizontal Series Servicing Mains Isolation The chiller can be isolated from the mains power supply by turning off the cabinet isolating switch and unplugging the unit supply plug, located inside the refrigeration unit compartment. To isolate the chiller from the power supply 1. -
Page 19: Cleaning
Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKOPE to arrange for a SKOPE authorised service agent to clean the condenser with compressed air. -
Page 20: Lighting
SKOPE Pegasus Horizontal Series Lighting Cabinet Pegasus 1-1 cabinets are fitted with door activated cabinet interior lights. Interior Lights Depending on the cabinet size, the interior is lit by one or two 5 Watt T8 LED tubes (Ø26 x 360mm), fitted behind the centre pillars. The single door model, without a centre pillar, has the interior interior LED light tube fitted on the ceiling of the cabinet. -
Page 21: Advanced Servicing
Advanced Servicing Advanced servicing should be carried out by an authorised service agent. Detailed service and spares information is available in the SKOPE Pegasus Service Manual (MAN10711) and detailed technical information on the electronic controller can be found in the SKOPE Pegasus Technicians Manual (MAN3224). - Page 22 SKOPE Pegasus Horizontal Series Top clamp mechanism 6. Pull the top clamp mechanism fully forward and to the left so that it sits on the notch on the LH side of the refrigeration unit compartment (this Notch keeps the mechanism up out of the way).
-
Page 23: Troubleshooting
SKOPE Pegasus Horizontal Series Troubleshooting Complaint Possible Cause Repair 1. Cabinet not • Loss of power supply. • Check that the cabinet operating and isolating switch is turned on no controller (see page 18). display: • Check mains power supply. - Page 24 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
