Front And Rear Panel Descriptions; Led Indicator - Control 4 C4-TW7C0-BL Installation Manual

connection is required)
- A 14-gauge electrical wire long enough to pull
between the Touch Screen and the power source

Front and Rear Panel Descriptions

Front View

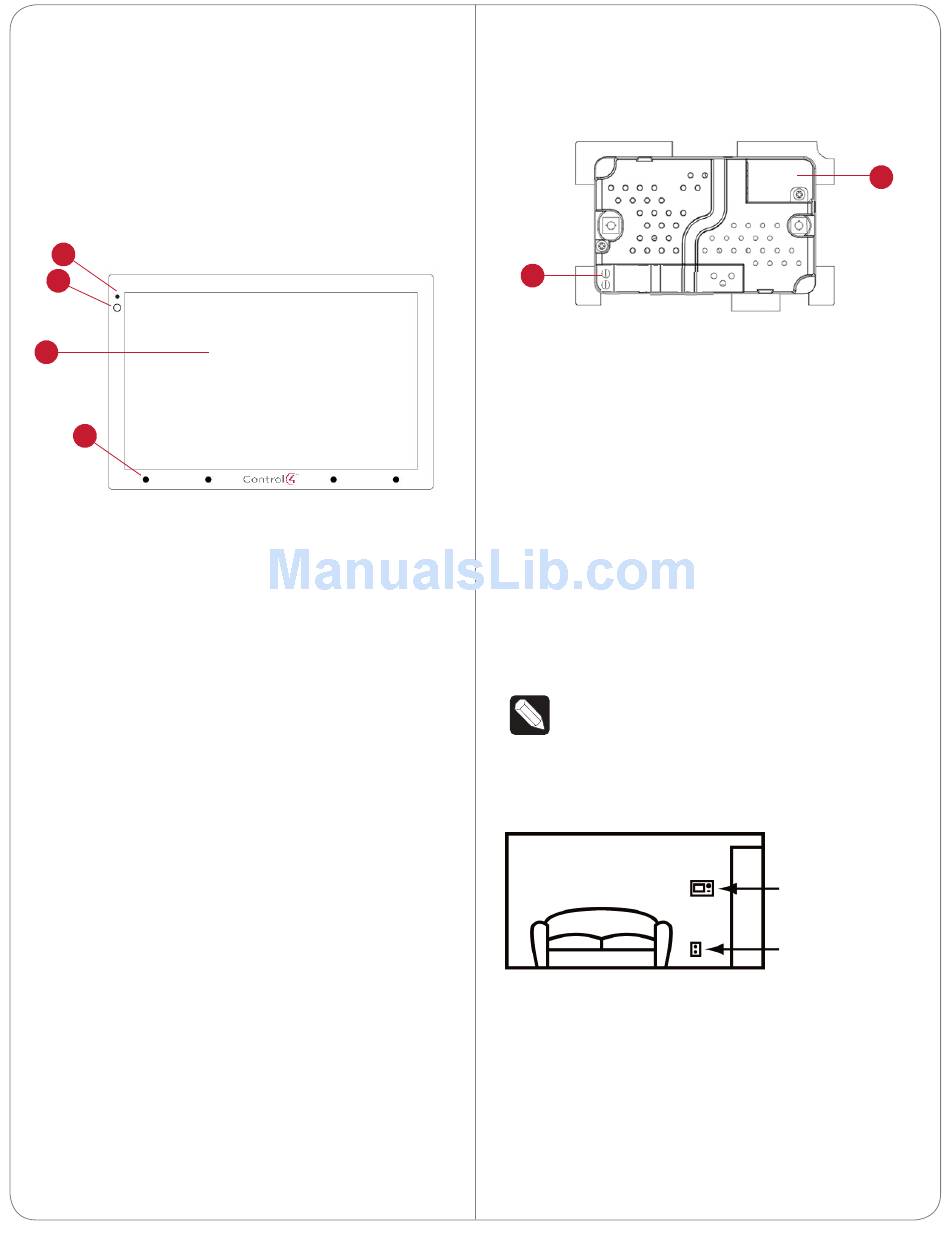

Figure 1. Front View - 7" In-Wall Touch Screen
3
4
1
2
1
Display. 7" viewing area, Touch Screen with 800 x
480 resolution.
2 Shortcut buttons (4). For custom programming;
to initiate an action or sequence of actions. Use
Composer Pro or Composer HE to configure
these buttons.
3
Green LED. Lets you know the camera is on.
4
Camera. For Video Intercom calls.
Dimensions
- Front dimensions. 7" Touch Screen (H x W x D):
4.88" x 7.2" x .60" (124 mm x 183 mm x
15.24 mm)
- Back box dimensions. 7" Touch Screen
(H x W x D): 2.7" x 4.1" x 2.4" (68 mm x 104 mm
x 61 mm)
- Power box dimensions. 7" Touch Screen (H x W
x D): 2.8" x 4.5" x 1.8" (71 mm x 114 mm x 46 mm)
Touch Screen Removal
Use the small hole located under the Touch Screen to
remove the Touch Screen from the wall (for details,
see Figure 10 in "Troubleshooting").
Back View
Figure 2. Back View - 7" In-Wall Touch Screen with
Camera and Power Box
1
1 Wire Connection. Hot (H) uses Black wire; Return
(R) uses White wire.
2 RJ-45 port for Ethernet Connection. Ethernet
port available for either a standard Ethernet
source that provides network communication
only OR a PoE source that provides power to the
device and network communication.
Touch Screen Placement
Place the Touch Screen in a convenient location at
eye level, typically near the entrance of the room,
approximately 57 to 61 inches (145 cm to 155 cm)
from the floor (see Figure 3).
NOTE: Consider the camera on the panel and
the height of the people in the home who will
use the camera for Video Intercom
Figure 3. Touch Screen Placement

LED Indicator

The LED on the Touch Screen indicates the camera
status of the camera and booting information as
described in the next table.
2
.
New Device
AC Power
(unless using PoE)
3
