Control 4 T3 Series Installation Manual

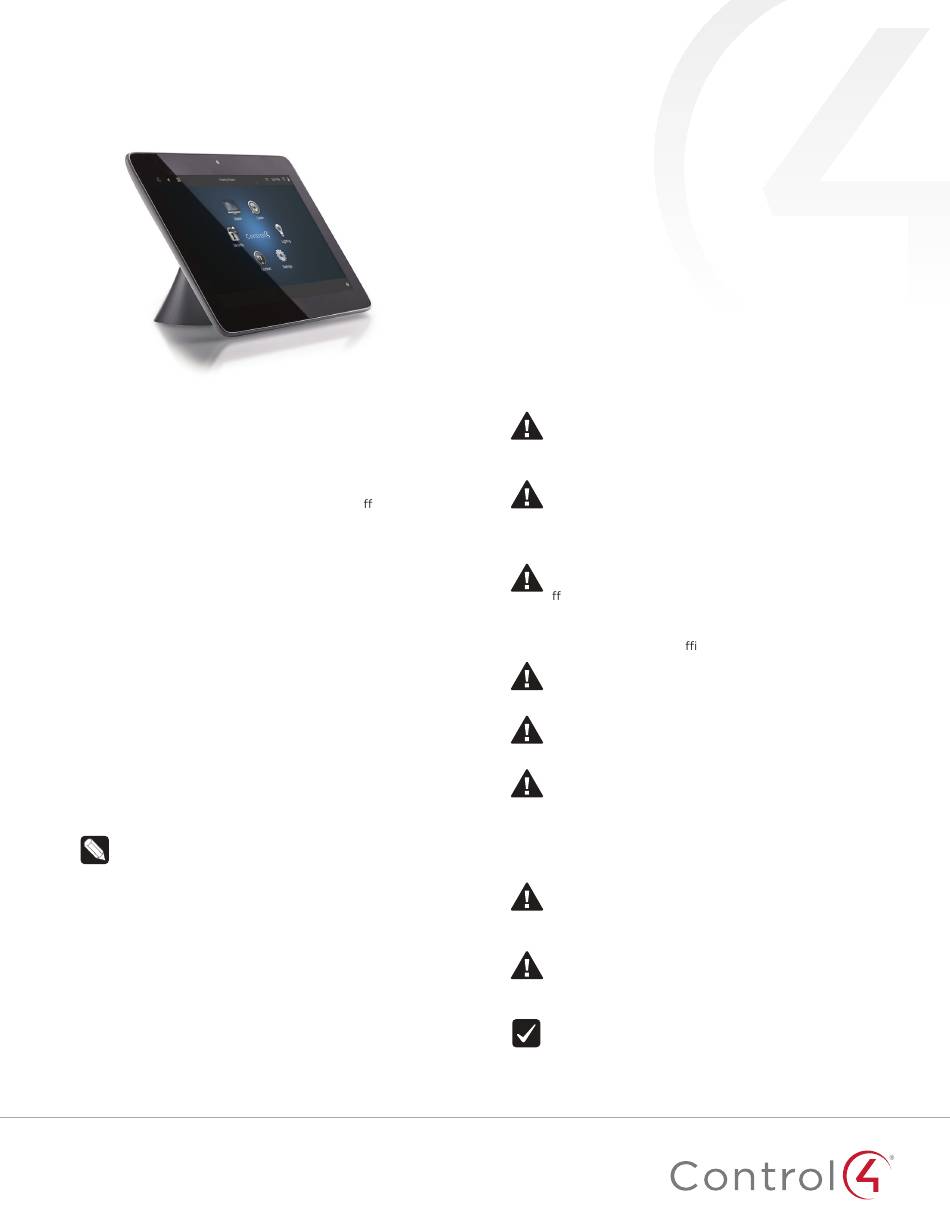

T3 Series Tabletop Touch Screens
Installation Guide
Supported models
• C4-TT7-1-xx 7" Tabletop Touch Screen (black, white, or red)
• C4-TT10-xx 10" Tabletop Touch Screen (black or white)
Introduction
The Control4® T3 Series Tabletop Touch Screens o er complete
system control in an elegant, compact, and portable design. The
touch screens are equipped with a full capacitive screen, audio
and video Intercom (with the built-in camera) using SIP, and
more.
This touch screen can be located anywhere, and the convenient
recharging station enables it to be used as either a tabletop or
portable interface. Choose from four installation options:
• Option 1: PoE data and power. Ethernet network connection
and power are provided through a PoE injector. No
additional wiring is needed.
• Option 2: Ethernet data and AC power. Ethernet network
connection is provided through an Ethernet cable, and
power is provided through the AC power adapter.
• Option 3: WiFi data and AC power. WiFi is used as the
network connection, and power is provided through the
AC power adapter.
• Option 4: WiFi data and PoE power. WiFi is used as the
network connection, and power is provided through a PoE
injector.
Note: 802.11b is not recommended for Video Intercom.
We recommend using Wireless-N. See "Specifi cations"
and "Power and Network Installation Options" for more
information.
Box contents
• Tabletop Touch Screen
• Recharging station
• Warranty card
• Ferrites (10" model only)
Accessories available for purchase
• Control4 PoE Injector, sold separately (AC-POE1-B).
1 1
Warnings
Warning! This product must be grounded in accordance
with the National Electrical Code (NEC) requirements.
Avertissement ! Ce produit doit être fondu selon les
conditions électriques nationales de code (NEC).
Caution! Do not place the touch screen near sources of
heat or expose to direct sunlight for an extended time.
Avertissement ! Ne placez pas l'unité près des sources
de chaleur ou exposition pour diriger la lumière du soleil
pendant une période prolongée.
Caution! This product generates heat. The room must
have adequate ventilation or the ability to dissipate heat
e ectively.
Avertissement ! Ce produit produit de la chaleur. La salle
doit avoir à ventilation proportionnée ou la capacité
d'absorber la chaleur e cacement.
Caution! Use this product only in dry locations.
Avertissement ! Employez ce produit seulement dans
des endroits secs.
Caution! This product is for residential use only.
Avertissement ! Ce produit est pour à l'usage résidentiel
ou commercial seulement.
Caution! Do not use pens or sharp objects to navigate
or make selections on the touch screen. To select an
item or scroll through a list, use your fi ngertip.
Avertissement ! N'employez pas les stylos ou les objets
pointus pour diriger ou pour faire des choix sur l'écran.
Pour choisir un article ou un rouleau par une liste,
employez votre bout du doigt.
Caution! Improper use or installation can cause
DAMAGE OF PROPERTY.
Avertissement ! L'utilisation ou l'installation inexacte
peut causer DAMAGE DE PROPRIÉTÉ.
Caution! Do not use shielded Ethernet cable. Doing so
will void the warranty.
Attention ! Ne pas utiliser de câble Ethernet blindé .
Cela annulera la garantie.
Important! Using this product in a manner other than
outlined in this document voids your warranty. Further,
Control4 is NOT liable for any damage incurred with the
misuse of this product. See "Warranty."
