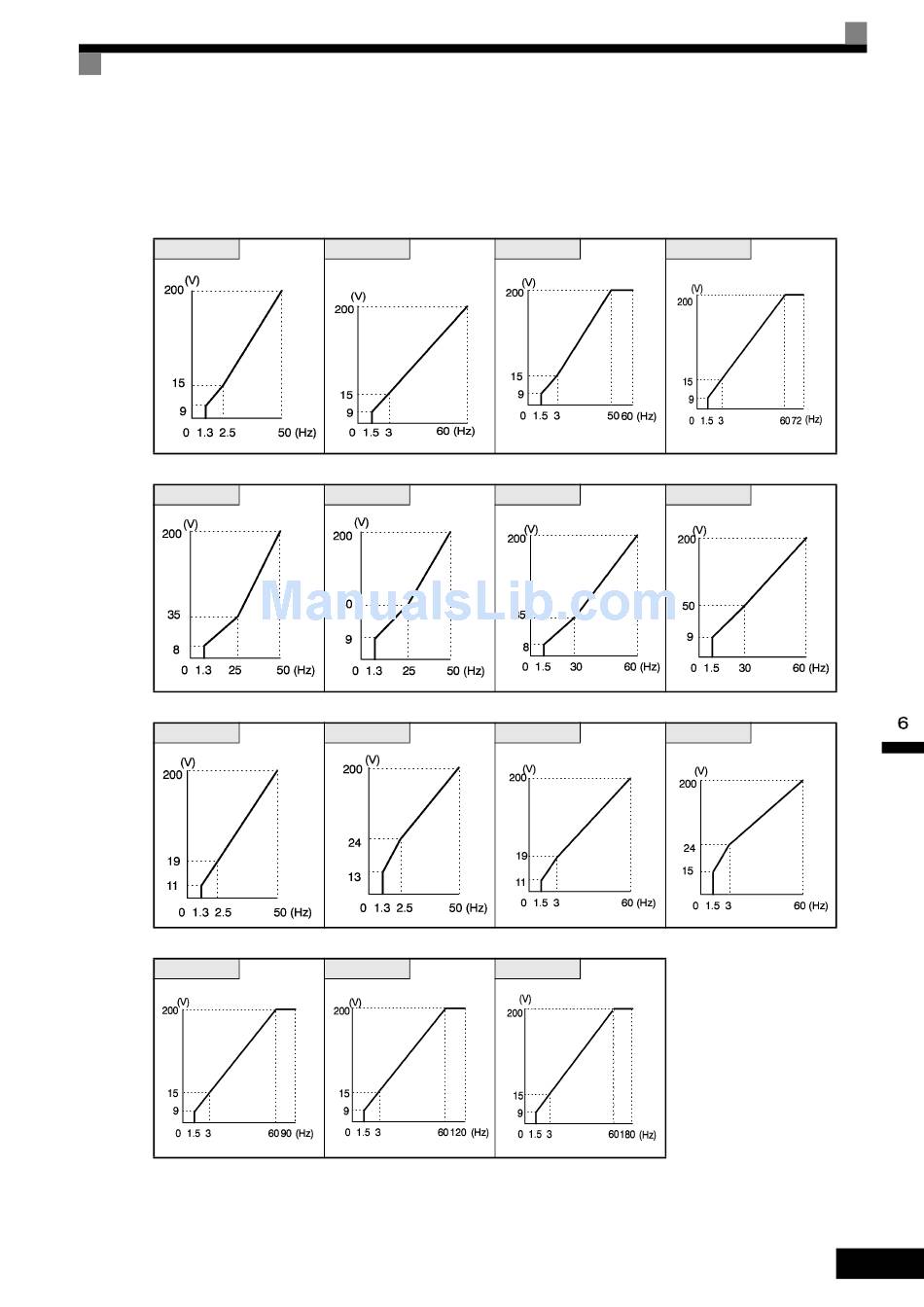

0.4 to 1.5 kW V/f Pattern
The diagrams show characteristics for a 200-V class motor. For a 400-V class motor, multiply all voltages by
2.
Constant Torque Characteristics (Set Value: 0 to 3)
•
Set Value 0 50 Hz
Decrement Torque Characteristics (Set Value: 4 to 7)
•
Set Value 4 50 Hz
High startup torque (Set value 8: to B)
•
Set Value 8 50 Hz
Fixed Output Operation (Set Value: C to E)
•
Set Value C 90 Hz
Set Value 1 60 Hz
(Initial value of set value F)
Set Value 5 50 Hz
Set Value 9 50 Hz
Set Value D 120 Hz
Set Value 2 60 Hz Set Value 3
Set Value 6 60 Hz Set Value 7
Set Value A 60 Hz Set Value B
Set Value E 180 Hz
Individual Functions
72 Hz
60 Hz
60 Hz
