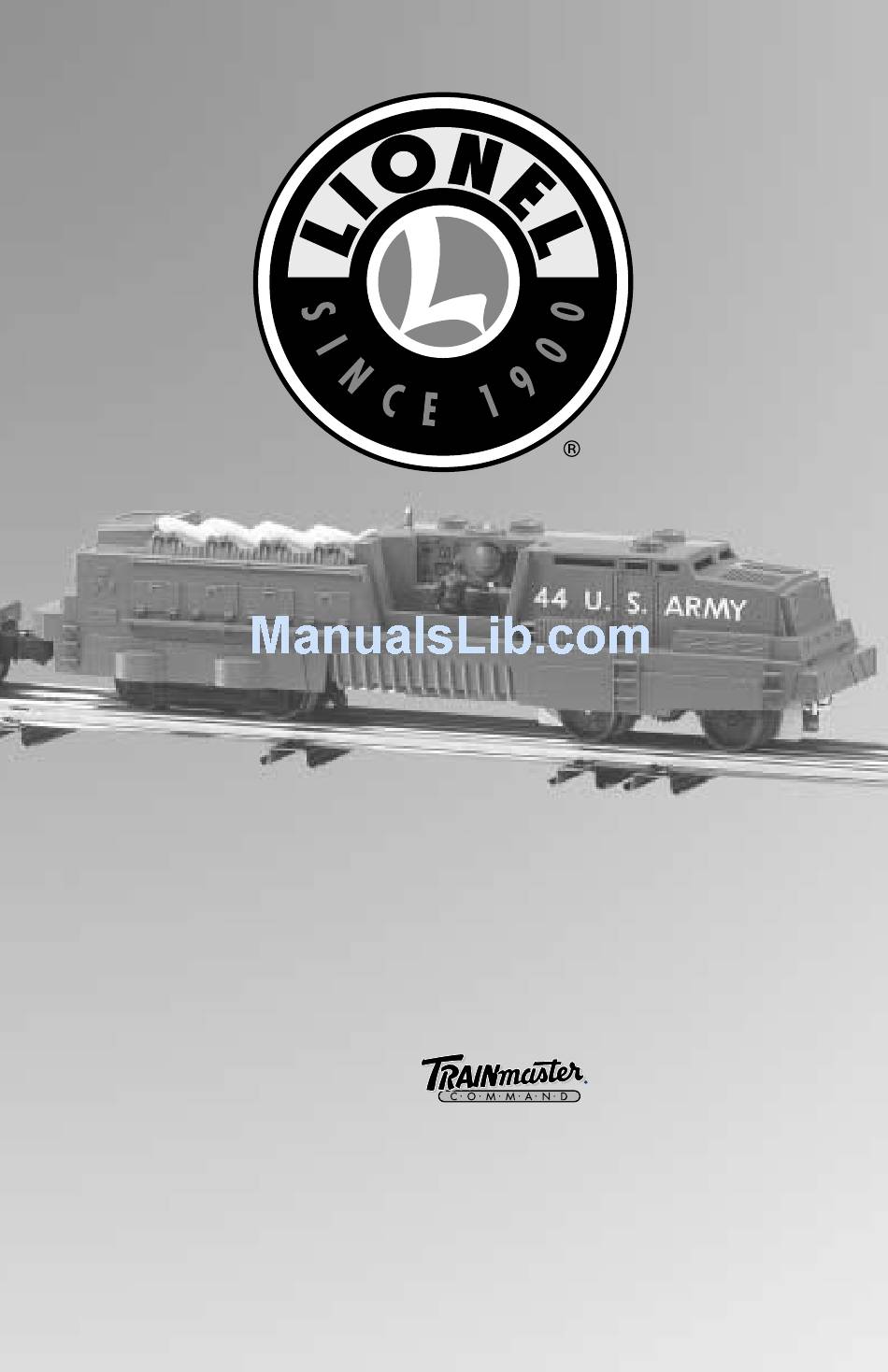

- Page 1 72-1788-250 4/02 Lionel Missile Launch Set Owner’s Manual featuring CAUTION: Use only with Lionel-approved missiles. Spring mechanisms require Adult supervision. Ages 14 and Up.
- Page 2 Helicopter Launch Car (Remote- Control Track section required, Die-cast metal sprung trucks • available separately) The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...
-
Page 3: Table Of Contents
Table of contents Transformer operations Running your Missile Launcher Locomotive with a Lionel transformer Locking your Missile Launcher Locomotive into a single operational state Using your Missile Launcher Locomotive’s ElectroCouplers in the non-Command environment Firing your locomotive’s missiles in the non-Command environment... -
Page 4: Transformer Operations
Move ‘em out! • Get your Missile Launcher Locomotive moving. Press the DIR button on your CAB-1 remote or Lionel transformer. This sequences the Lionel reverse unit to the next operating state. • Adjust track voltage until your Missile Launcher Locomotive moves at your desired speed. -
Page 5: Locking Your Missile Launcher Locomotive Into A Single Operational State
Locking your Missile Launcher Locomotive into a single operational state o select a single operational state for “locked” into your chosen direction. your Lionel Missile Launcher When you no longer want single-direction Locomotive (example: forward only), you operation, just slide the figure toward the can deactivate the reverse unit’s sequencing... -
Page 6: Using Your Missile Launcher Locomotive's Electrocouplers In The Non-Command Environment
Transformer operations Using your Missile Launcher Locomotive’s ElectroCoupler in the non-Command environment our Missile Launcher Locomotive is field generated by a Lionel Remote-Control equipped with one ElectroCoupler Track section (available separately). Place located at the rear of the locomotive. To your rolling stock’s coupler “trigger disc”... -
Page 7: Firing Your Locomotive's Missiles In The Non-Command Environment
Transformer operations Firing your locomotive’s missiles in the non-Command environment our locomotive is armed with four plastic missiles. In the non-Command environment, the missiles are fired one at a time using a Remote-Control Track section (available separately, 6-65530 for O gauge, 6-12746 for O-27 gauge). Note! The O-27 Uncoupling Track (6-65149) will not operate the missile launching function. -
Page 8: Trainmaster Command Operations The Command Control Environment
CAB-1 to the Command Base, which then translates your command into digital code. That code is sent around your railroad’s outside rails in the form of a digital “halo.” All Command-equipped Lionel engines listen to this digital communication, but they do not respond until they hear their individual ID number—in this case, “1.”... -
Page 9: Running Your Missile Launcher Locomotive In The Trainmaster Command Environment
TrainMaster Command operations Running your Missile Launcher Locomotive in the TrainMaster Command environment our Command-equipped Missile Example Address Locomotive #1 Launcher Locomotive comes factory-programmed with an ID# of PowerMasters set to CMD or traditional “1.” To get your Missile Launcher power supplies ON FULL (no more than 20 volts) Locomotive in action, set PowerMasters... -
Page 10: Cab-1 Numeric Keypad Commands For Your Missile Launcher Locomotive
TrainMaster Command operations CAB-1 numeric keypad commands for your Missile Launcher locomotive hen you press AUX1 on your CAB-1, Stops and resets the Missile Launcher you turn the numeric keypad into 10 Locomotive. Resets the Missile command buttons. The keypad lets you Launcher Locomotive’s direction to control extra command features (until you FORWARD. -
Page 11: Assigning Your Missile Launcher Locomotive A New Id
Assigning your Missile Launcher Locomotive a new ID# s your fleet of Command-equipped Assign a new ID# to your Example Lionel locomotives grows, you’ll want Command-equipped Missile to give your Missile Launcher Locomotive a Launcher Locomotive more individualized number. Choose from... -
Page 12: Reprogramming The Command Reverse Unit To Restore Features
TrainMaster Command operations Reprogramming the Command reverse unit to restore features ue to the inevitable derailments and STEP 5: Press ENG, the ID#, AUX1, then static, it is possible that your Command press 8 for your locomotive. reverse unit could someday lose its setup program. -
Page 13: Maintaining And Servicing Your Missile Launcher Locomotive
We recommend that you purchase a Lionel Lubrication and Maintenance Grease Kit (no. 6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the Missile Launcher Locomotive’s wheels or your track. -
Page 14: Replacing Your Missile Launcher Locomotive's Leds And Lamp
Pull the expired lamp out of the socket and Replacement of the LEDs should be replace it with part no. 610-8462-300. When performed by an authorized Lionel Service replacing the lens, be sure that the three tabs Center. Figure 6. Lamp replacement... -
Page 15: Operating The Rolling Stock Securing The Missiles To The Flatcars
Operating the rolling stock Securing the missiles to the flatcars emovable missiles are included with the stack the missiles tightly, then lay the #6844 and the #6823 flatcars. The #6844 missiles across the cradles. Loop an elastic flatcar features six missiles standing on a tie-down around the two hooks on one side, base. -
Page 16: Launching The Helicopter
Operating the rolling stock Launching your helicopter Launch your helicopter using a Remote-Control Track section (available separately). 1. Slide the metal lever all the way toward (or away from) the brakewheel stand the right to so that the metal locking mechanism catches each of the three “teeth” along the sides of the platform/spool. -
Page 17: Operating The Exploding Ammunition Dump
Operating the Exploding Ammunition Dump Assembling and operating the Exploding Ammunition Dump he Exploding Ammunition Dump consists of a stamped metal base with a “mousetrap” trigger mechanism and four building parts. Set the ammunition dump and it will explode with a direct hit from a missile. Caution! Keep clear of the ammunition dump when the trigger is set. - Page 18 Operating the Exploding Ammunition Dump Assembling and operating the Exploding Ammunition Dump (continued) Figure 9. Ammunition dump assembly...
-
Page 19: Notes
Notes... -
Page 20: Lionel Service
Center, together with proof of original purchase above instructions carefully before returning any will, at the option of Lionel L.L.C., be repaired or merchandise for service. You may choose to have replaced, without charge for parts or labor. In the...
