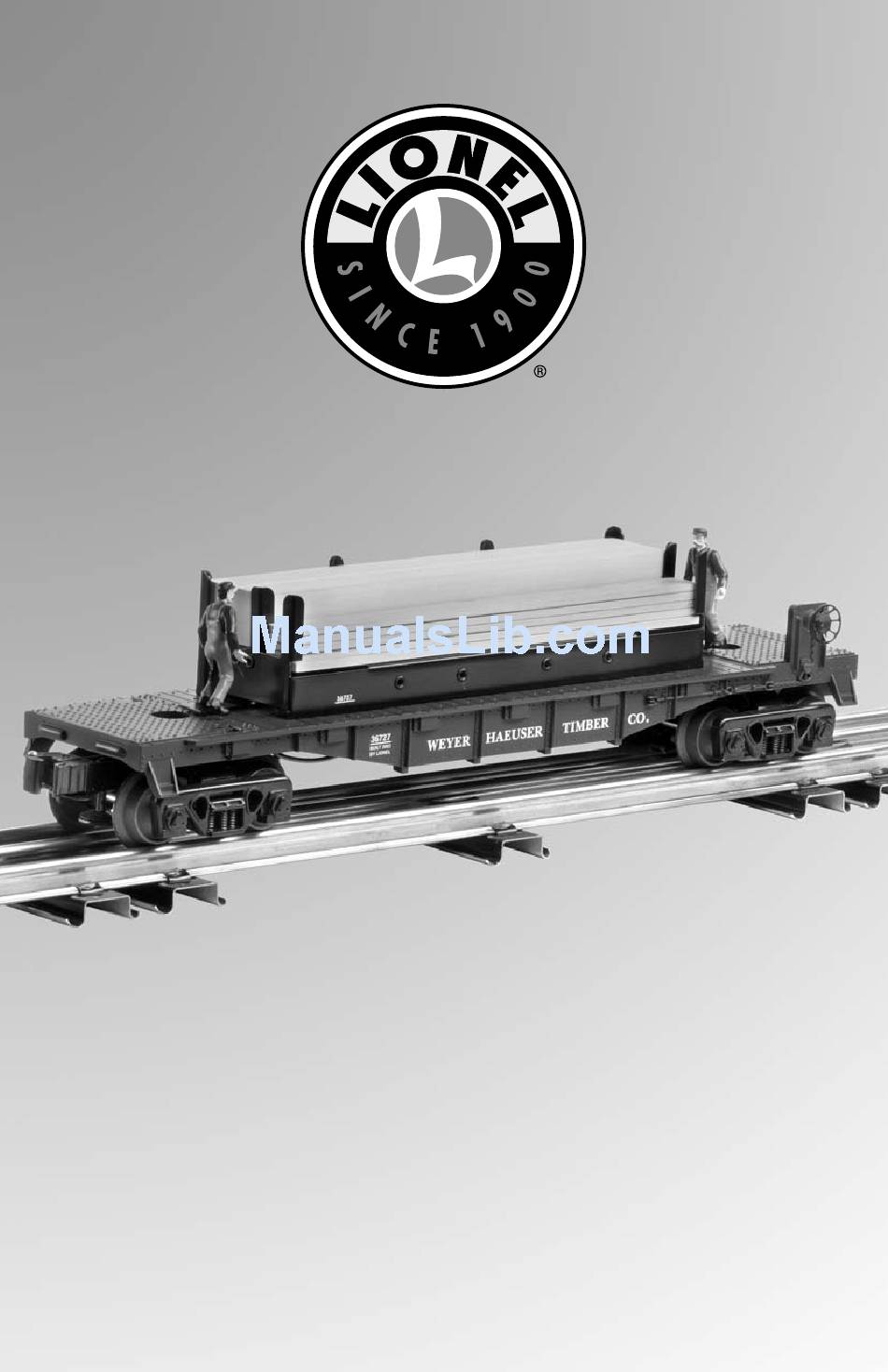

- Page 1 73-6727-250 4/03 Lionel Moe & Joe Flatcar Owner’s Manual...
-
Page 2: Table Of Contents
Uncoupling the car with the Remote-Controller Track section Notes Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel®, TrainMaster®, Odyssey®, RailSounds™, CrewTalk™, TowerCom™, DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1 Remote Controller®,... -
Page 3: Installing A Remote-Control Track Section
Installing a Remote-Control Track section ollow these steps and refer to Figure 1 as you install the Remote-Control Track section. The Operating Track Controller (available separately, 6-14185) is perfect for Note! controlling the Remote-Control Track section in the TrainMaster Command Control environment. -
Page 4: Loading The Car
Loading the car tack the wooden boards on the brake wheel side of the car, one on top of the other. Note that the large wooden block is in position on the other side of the car. Refer to Figure 2. Boards Figure 2. -
Page 5: Unloading The Car
Unloading the car s illustrated in Figure 3, position the car over your Remote-Control Track section so that the sliding contact shoes (one on each truck) are on the control rails. Be sure that the car is heading in the right direction so the planks are unloaded into the trackside bin. Press UNLOAD on the Remote-Control Track section’s controller to slide a board off the car. -
Page 6: Uncoupling The Car With The Remote-Controller Track Section
Uncoupling the car with the Remote-Control Track Section he Remote-Control Track section also allows you to uncouple your cars. Position the coupler’s trigger disc over the magnet in the center of the Remote-Control Track section. Press UNCOUPLE on the Remote-Control Track section’s controller, and the magnet will pull the trigger plate downward, releasing the coupler. -
Page 7: Notes
Notes... -
Page 8: Limited Warranty/Lionel Service
Lionel product, including all to the nearest Authorized Lionel Service Center. mechanical and electrical components, Your nearest Lionel Service Center can be found by moving parts, motors and structural calling 1-800-4-Lionel, or by accessing our Website components, except for light bulbs, is warranted to at www.lionel.com.
