  • Page 1 72-4154-250 4/03 Lionel Maiden Rescue Owner’s Manual...
  • Page 2 Adjusting the 153C Contactor Wiring the accessory with the 153IR Controller Operating the accessory Replacing the lamp Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...

  • Page 3: Installing The Accessory And The 153C Contactor

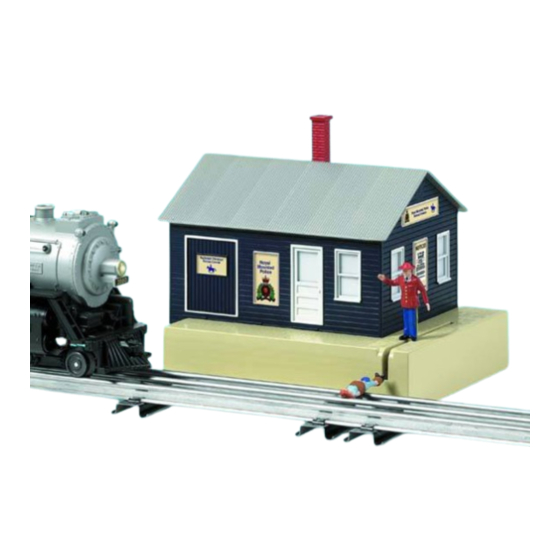

    Installing the accessory and the 153C Contactor lace the Maiden Rescue accessory along any straight section of track on your layout. Lower the outside rail into the notches in the accessory’s locating arms, then install the two figures. Press the officer figure onto the pin closest to the building and the maiden onto the pin closest to the track.

  • Page 4: Wiring The Accessory For Operation With The 153C Contactor

    Wiring the accessory for operation with the 153C Contactor our Maiden Rescue accessory operates best at 12 to 18 volts (AC). Power the accessory through track power or using a separate accessory transformer. Refer to Figure 2. To make the proper connections, the ends of the wires should be stripped back 1/4” to 1/2”. Only an adult should perform this task.
  • Page 5 Adjusting the 153C Contactor djust the 153C Contactor before you operate different locomotives and rolling stock with the accessory. Keep in mind that the Contactor is sensitive to the weight of the train. 1. Power up the accessory. 2. Pull the officer figure back towards the building until he locks in place. Refer to Figure 5 on page 6.

  • Page 6: Wiring The Accessory With The 153Ir Controller

    Wiring the accessory with the 153IR Controller he 153IR Controller (available separately, 6-14111) is a direct replacement for the 153C Contactor that was included with this accessory. The trains trigger the 153IR Controller by reflecting an infrared beam, so it is not necessary to install a pressure-sensitive Contactor under the track.

  • Page 7: Replacing The Lamp

    Replacing the lamp our accessory is illuminated by one lamp, Lionel part no. 600-1447-300. During the course of normal operations, this lamp may require replacement. Replacement lamps are available at your authorized Lionel Service Center or from Lionel Service in Chesterfield, MI.

  • Page 8: Warranty Information

    Lionel product, including all to the nearest Authorized Lionel Service Center. mechanical and electrical components, Your nearest Lionel Service Center can be found by moving parts, motors and structural calling 1-800-4-Lionel, or by accessing our Website components, except for light bulbs, is warranted to at www.lionel.com.
