Summary of Contents for Lionel Mainline Gooseneck Lamps

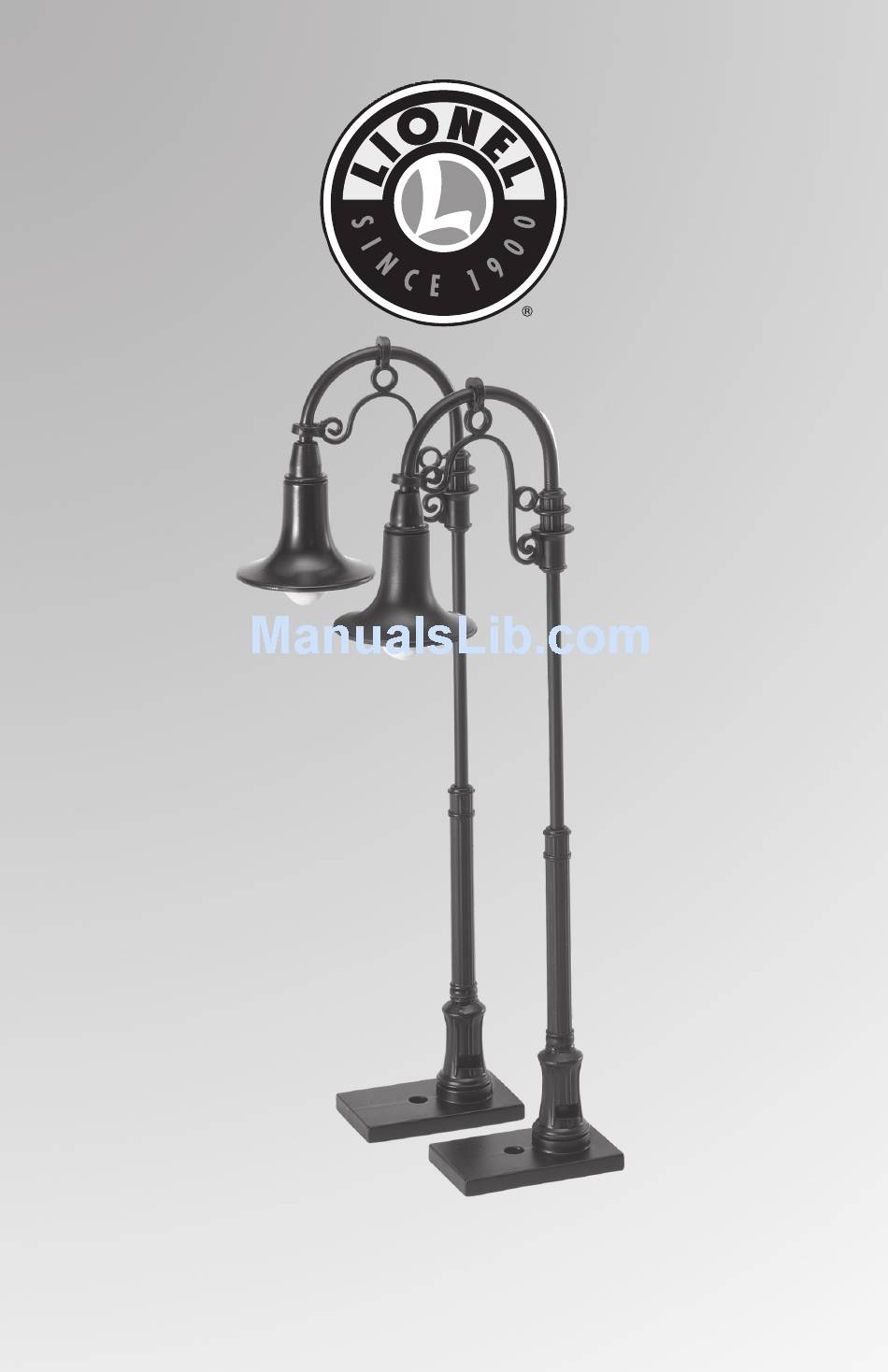

  • Page 1 72-4250-250 8/08 Lionel Lionel Mainline Gooseneck Lamps Mainline Gooseneck Lamps Owner’s Manual Owner’s Manual...
  • Page 2 Installing your Lamps in a TrainMaster Command Control environment Wiring the lamps together Replacing the bulbs Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel , TrainMaster...
  • Page 3 Always use care when stripping wires. Track Power o power the lamps using a Lionel Lockon with traditional Lionel O and O-27 gauge track, attach the Lockon to the track, then press down on the top of the terminal clip so that the metal loop is exposed.
  • Page 4 Installing your Mainline Gooseneck Lamps (continued) Track Power (continued) To power the lamps through an Accessory Power Wire (available separately, 6-12053) on a FasTrack layout, attach the quick connects to the tabs on the underside of the track and twist the bare ends of the wire to the lamp wires.
  • Page 5 We recommend that you use 22-gauge wire. SC-2 wiring and operation hree wires (not included) are needed to connect your Mainline Gooseneck Lamps to the SC-2 and a separate accessory transformer. Refer to Figure 3. 1. Attach one wire to the Common/Ground/U terminal of the transformer and connect it to the accessory COMM (common) position on the SC-2.
  • Page 6 Command Control environment (continued) Accessory Switch Controller (6-14182) wiring and operation hree wires (not included) are needed to connect your Mainline Gooseneck Lamps to the Accessory Switch Controller (ASC) and a separate accessory transformer. Refer to Figure 4. 1. Attach one wire to the Power/A terminal of the transformer and connect it to the COMM terminal on the ASC.
  • Page 7 Wiring the lamps together ou may also wire the Mainline Gooseneck Lamps together. Two extension wires (not included) are connected to the power supply (Lockon, transformer, etc.). The lamp wires are connected to the extension wires as illustrated in Figure 5. Connections should be soldered or twisted securely and taped to avoid short circuits.
  • Page 8 (requires proof of purchase from the Lionel Authorized Retailer* it was originally purchased). Any products on which warranty service is sought must be sent freight or postage prepaid (Lionel will refuse any package when postage is due). Transportation and shipping charges are not covered as part of this warranty.
