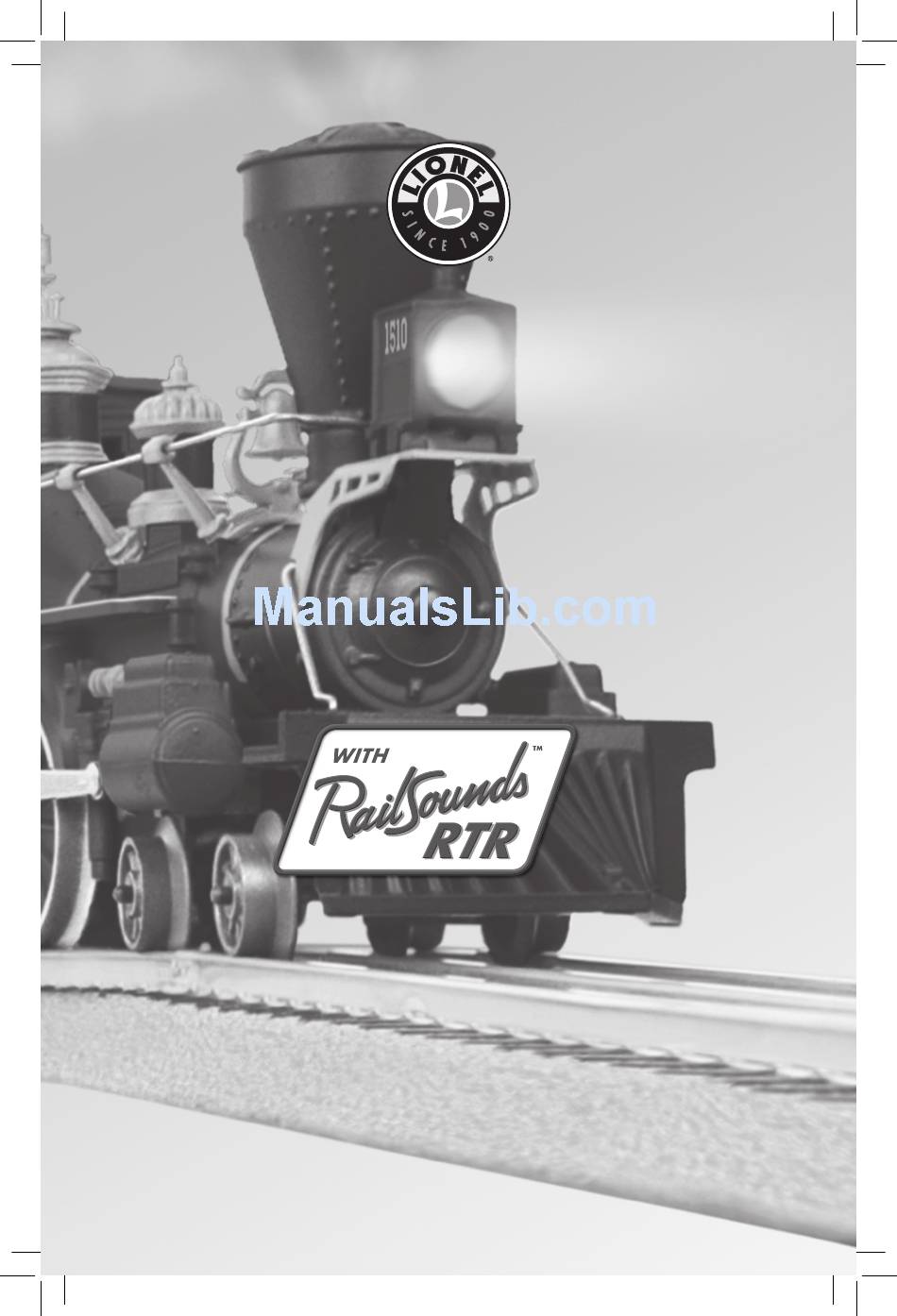

Pennsylvania Limited
Pennsylvania Limited
Ready-to-Run
Ready-to-Run
Owner's Manual
Owner's Manual
CAUTI O N—ELECTRI C TOY
CAUTI O N—ELECTRI C TOY
NOT RECOMMENDED FOR CHI L DREN UNDER FOURTEEN YEARS OF AGE. AS WI T H
NOT RECOMMENDED FOR CHI L DREN UNDER FOURTEEN YEARS OF AGE. AS WI T H
ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HAN-
ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HAN-
DLI N G AND USE TO PREVENT ELECTRI C SHOCK.
DLI N G AND USE TO PREVENT ELECTRI C SHOCK.
TRANSFORMER RATINGS—I N PUT: 120 VAC; 60 HZ ONLY.
TRANSFORMER RATINGS—I N PUT: 120 VAC; 60 HZ ONLY.
AC OUTPUT: 18 V; 80 VA
AC OUTPUT: 18 V; 80 VA
73-0224-250
8/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pennsylvania Limited and is the answer not in the manual?

Questions and answers

Summary of Contents for Lionel Pennsylvania Limited

  • Page 1 73-0224-250 8/13 Pennsylvania Limited Pennsylvania Limited Ready-to-Run Ready-to-Run Owner’s Manual Owner’s Manual CAUTI O N—ELECTRI C TOY CAUTI O N—ELECTRI C TOY NOT RECOMMENDED FOR CHI L DREN UNDER FOURTEEN YEARS OF AGE. AS WI T H NOT RECOMMENDED FOR CHI L DREN UNDER FOURTEEN YEARS OF AGE. AS WI T H...
  • Page 2 Expand your railroad empire with additional FasTrack track sections, enhance your layout with accessories, lengthen your consist with extra cars, or operate a new locomotive at the head end of your train! Explore the possibilities at your authorized Lionel dealer.
  • Page 3: Table Of Contents

    Powering your layout with the CW-80 Transformer Setting the accessory output Maintaining and servicing your set Lubricating your locomotive Replacing the traction tire Replacing your locomotive’s headlamp Replacing the passenger car lamps Troubleshooting FCC Statement Lionel Limited Warranty Policy & Service...
  • Page 4: Creating Your Layout

    • Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condition exists, the transformer should not be used until it has been properly repaired.
  • Page 5: Building Your Lionel Layout

    Creating your layout Building your Lionel layout our set comes with eight curved sections, three 10" straight sections, and one terminal section of track. Figure 1 provides some examples of layouts that you can build with these track sections. You may choose to add more FasTrack track sections to create an endless number of exciting track arrangements for more fun, action, and variety.
  • Page 6: Joining The Fastrack Track Sections

    Creating your layout Joining the FasTrack track sections asTrack track sections join together easily. With interlocking roadbed sections and large rail tabs, the track fits together securely so you always have good electrical contact. Take a look at Figure 3 to see how to join the track sections.
  • Page 7: Wiring Your Cw-80 Transformer

    Be sure that the blades are touching the metal post. Tighten the thumbscrew to secure the connection. 4. If you need to power an accessory (available separately at your authorized Lionel dealer), connect the accessory to the ACCESSORY thumbscrew terminals. Use the accessory wire included with the CW-80 Transformer.
  • Page 8: Wiring Your Cw-80 Transformer

    Creating your layout Wiring your CW-80 Transformer (continued) 5. Plug the CW-80 Transformer into your wall outlet (120 volts). As your layout expands, you may also make power connections with the stripped ends of wires, placing no more than two wires on each terminal. For best performance on large layouts, it is recommended that you use 16-gauge wire to connect your CW-80 Transformer to the track.
  • Page 9: Running Your Train

    Figure 5. Drawbar connection Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-15 volts alternating current. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Do not power your locomotive with direct-current (DC) transformers. Note! The locomotive was designed for use with alternating-current (AC) transformers only.
  • Page 10: Adding Smoke Fluid To Your Locomotive's Smoke Generator

    ON position. Refer to Figure 9 on page 14 for the location of the switch. The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. A small bottle of smoke fluid is included with this set. Press down and unscrew the cap. Pierce the end of the nozzle with a pin, then add about four drops of fluid directly into the locomotive’s...
  • Page 11: Coupling

    Running your train Coupling hen coupling your cars, at least one of the mating couplers must be open as shown at the left in Figure 7. Press down on the lock release to open the coupler, then push the cars toward each other until they lock together.
  • Page 12: Experiencing The Features Of The Cw-80 Transformer

    Running your train Experiencing the features of the CW-80 Transformer Refer to Figure 8 on page 13 for the location of the Transformer features listed in this section. THROTTLE Push the throttle forward to increase track power. The markings on the throttle approximate the percentage of full power.
  • Page 13: Experiencing The Features Of The Cw-80 Transformer

    The green light illuminates when the CW-80 is on. Whistle/Horn Activates the whistle or horn sound effect in your Lionel locomotives. Press Throttle WHISTLE/HORN to begin the sound; Controls your locomotive’s speed. Throw the throttle forward to increase locomotive speed, release the button to end it.
  • Page 14: Reverse Unit Procedure

    Running your train Reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmission in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interruption. Power interruptions are the signal that tells the reverse unit to sequence to the next operational state.
  • Page 15: Operating The Railsounds Rtr Sound System

    RailSounds RTR sound system operations Operating the RailSounds RTR sound system hen you power up the locomotive on the track, you will hear the sounds of the idling steam locomotive. The chuffing sounds will increase proportionally with the locomotive's speed. Whistle/Horn Press the WHISTLE/HORN button on your transformer to sound the whistle/horn.
  • Page 16: Adjusting The Volume

    RailSounds RTR sound system operations Adjusting the volume se the volume control knob on the underside of the tender to adjust the volume. Refer to Figure 10. Volume control knob Figure 10. Volume control knob and switch location...
  • Page 17: Cw-80 Transformer Operation

    — from crossing signals to coal and lumber loaders — available at your authorized Lionel dealer. When you are ready to operate your new accessory, the CW-80 Transformer allows you to choose how much power your accessory receives with programmable accessory output.
  • Page 18: Maintaining And Servicing Your Set

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the locomotive’s wheels or your track. You’ll know your loco- motive requires lubrication when visual inspection reveals dryness on the parts indicated in Figure 11.
  • Page 19: Replacing The Traction Tire

    3/16” nut driver to remove the drive rod nut. Slip off the worn tire and position the replacement tire around the wheel. Carefully fit the tire into the groove. If you are uncomfortable with this opera- tion, you may choose to have the traction tire replaced by your Factory Trained Authorized Lionel Service Center.
  • Page 20: Replacing Your Locomotive's Headlamp

    Maintaining and servicing your locomotive Replacing your locomotive’s lamp our locomotive is illuminated by one lamp, Lionel part nol 6000191300. During the course of normal operations, the lamp in your locomotive may require replacement. Replacement lamps are available at your Factory Trained Authorized Lionel Service Center or from Lionel Service.
  • Page 21: Replacing The Passenger Car Lamps

    Maintaining and servicing your locomotive Replacing the passenger car lamps our passenger cars are illuminated by Lionel part no. 6008352311. During the course of normal operations, these lamps may reqiure replacement. Replacement lamps are available at your Factory Trained Authorized Lionel Service Center or from Lionel Service. Follow these steps to replace the lamp.
  • Page 22: Troubleshooting

    Be sure that the Smoke Unit switch is in the ON position. Add four to six drops of smoke fluid if you have not done so already. We invite you to visit www.lionel.com and click on the Customer Services tab to order parts and access other important service information.
  • Page 23: Fcc Statement

    Maintaining and servicing your set FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 24: Lionel Limited Warranty Policy & Service

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
