  6. Installation & owner's manual

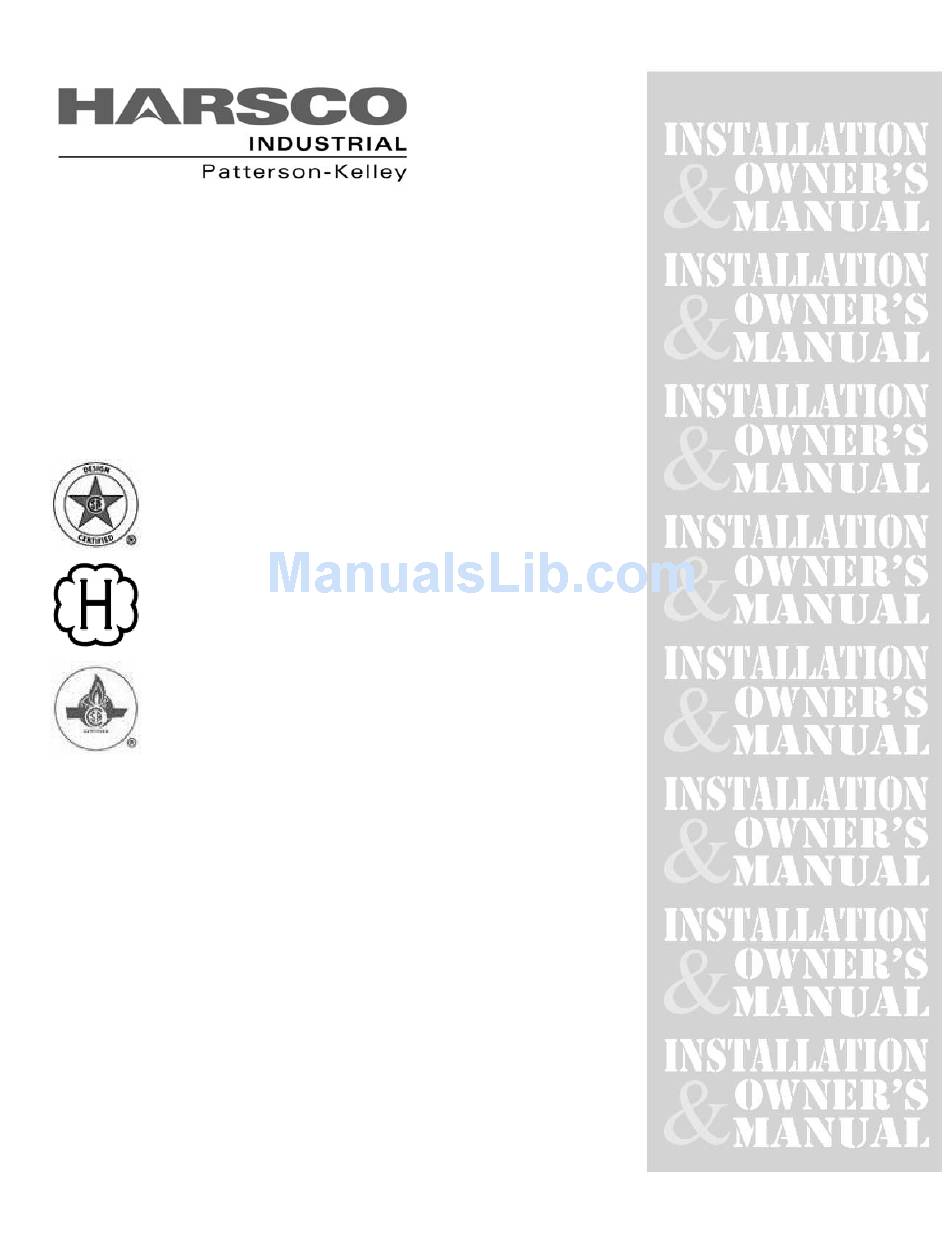

Harsco Industrial 1004905923 Installation & Owner's Manual

Modu-fire forced draft gas-fired boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODU-FIRE
®
GAS-FIRED BOILER
2500 - 3000
C.S.A. Design-Certified
Complies with ANSI Z21.13/CSA 4.9
Gas-Fired Low Pressure Steam and Hot Water Boilers
ASME Code, Section IV
Certified by Harsco Industrial, Patterson-Kelley
C.S.A. Design-Certified
Complies with ANSI Z21.13/CSA 4.9
Gas-Fired Low Pressure Steam and Hot Water Boilers
Model #:_______
Start-Up Date: _______________________
Harsco Industrial, Patterson-Kelley
100 Burson Street
East Stroudsburg, PA 18301
Telephone: (570) 476-7261
Facsimile: (570) 476-7247
www.harscopk.com
© 2011 Harsco Corporation, All Rights Reserved
MFD 202
FORCED DRAFT
Serial #______________________
MODU-FIRE® FD 2500-3000
Rev. 1.01 (2/7/12)
PART # 1004905923
