Harsco Industrial MACH C750 Installation & Owner's Manual

Gas-fired boiler
Hide thumbs Also See for MACH C750:
Table of Contents

Advertisement

Quick Links

MACH
GAS-FIRED BOILER
®
C750-C900-C1050
C.S.A. Design-Certified
Complies with ANSI Z21.13/CSA 4.9
Gas-Fired Low Pressure Steam and Hot Water
Boilers
ASME Code, Section IV
Certified by Harsco Industrial, Patterson-Kelley
C.S.A. Design-Certified
Complies with ANSI Z21.13/CSA 4.9
Gas-Fired Low Pressure Steam and Hot Water
Boilers
Model #:_______
Start-Up Date:
_______________________
Harsco Industrial, Patterson-Kelley
100 Burson Street,
East Stroudsburg, PA 18301
Telephone: (570) 476-7261
Facsimile: (570) 476-7247
www.harscopk.com
© 2010 Harsco Industrial, Patterson-Kelley
Printed: 7/1/2013
Serial #______________________
MACH
C750-C900-C1050
®
Rev. 1.05 (07/01/2013)
1004905947

Advertisement

Table of Contents
loading

Related Manuals for Harsco Industrial MACH C750

Summary of Contents for Harsco Industrial MACH C750

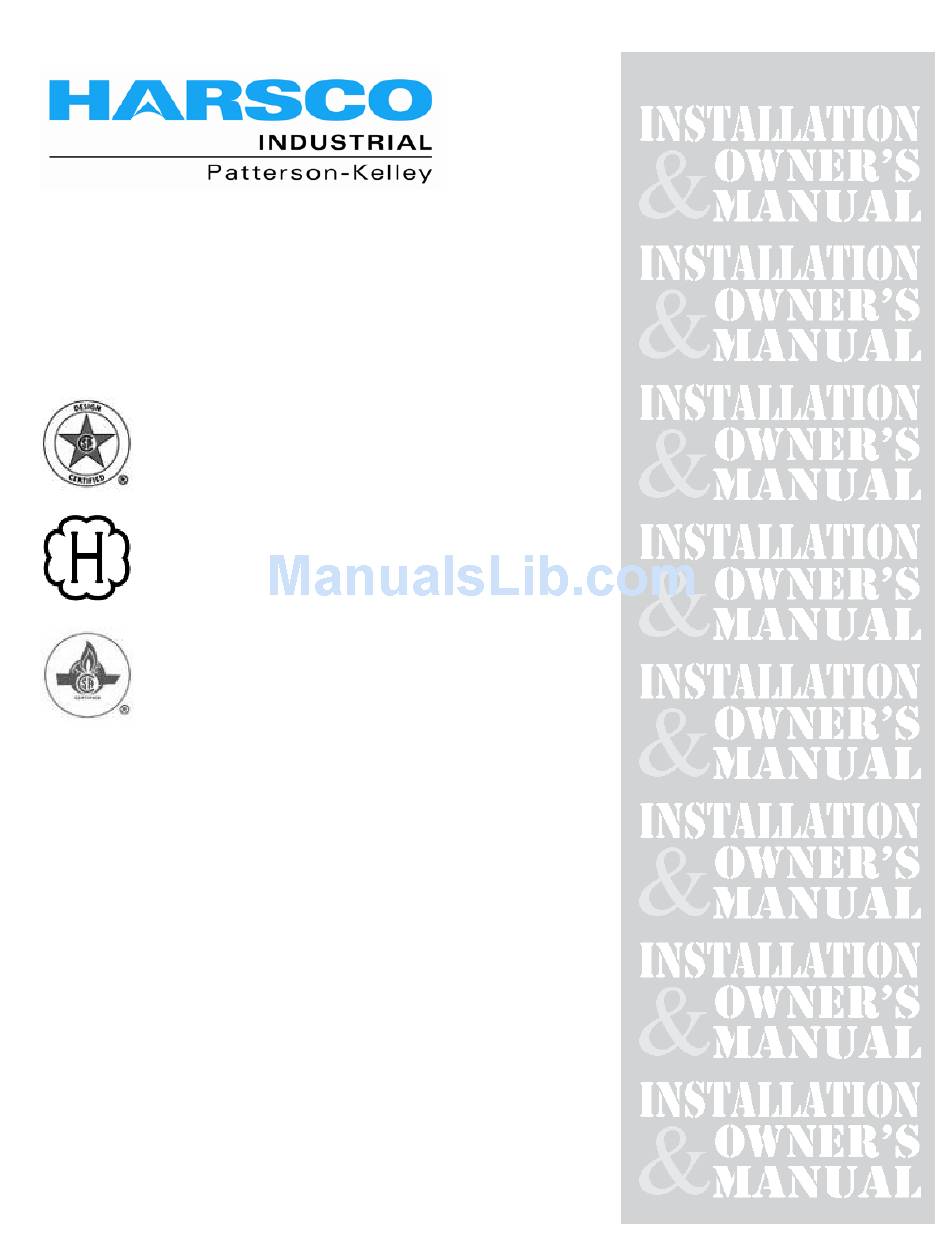

  • Page 1 C.S.A. Design-Certified Complies with ANSI Z21.13/CSA 4.9 Gas-Fired Low Pressure Steam and Hot Water Boilers ASME Code, Section IV Certified by Harsco Industrial, Patterson-Kelley C.S.A. Design-Certified Complies with ANSI Z21.13/CSA 4.9 Gas-Fired Low Pressure Steam and Hot Water Boilers Model #:_______...
