Section 3

Setup and Operation

STEP PROCEDURE
1. Turn power on.
2. Connect the electrophoresis
cell(s) to the power supply.

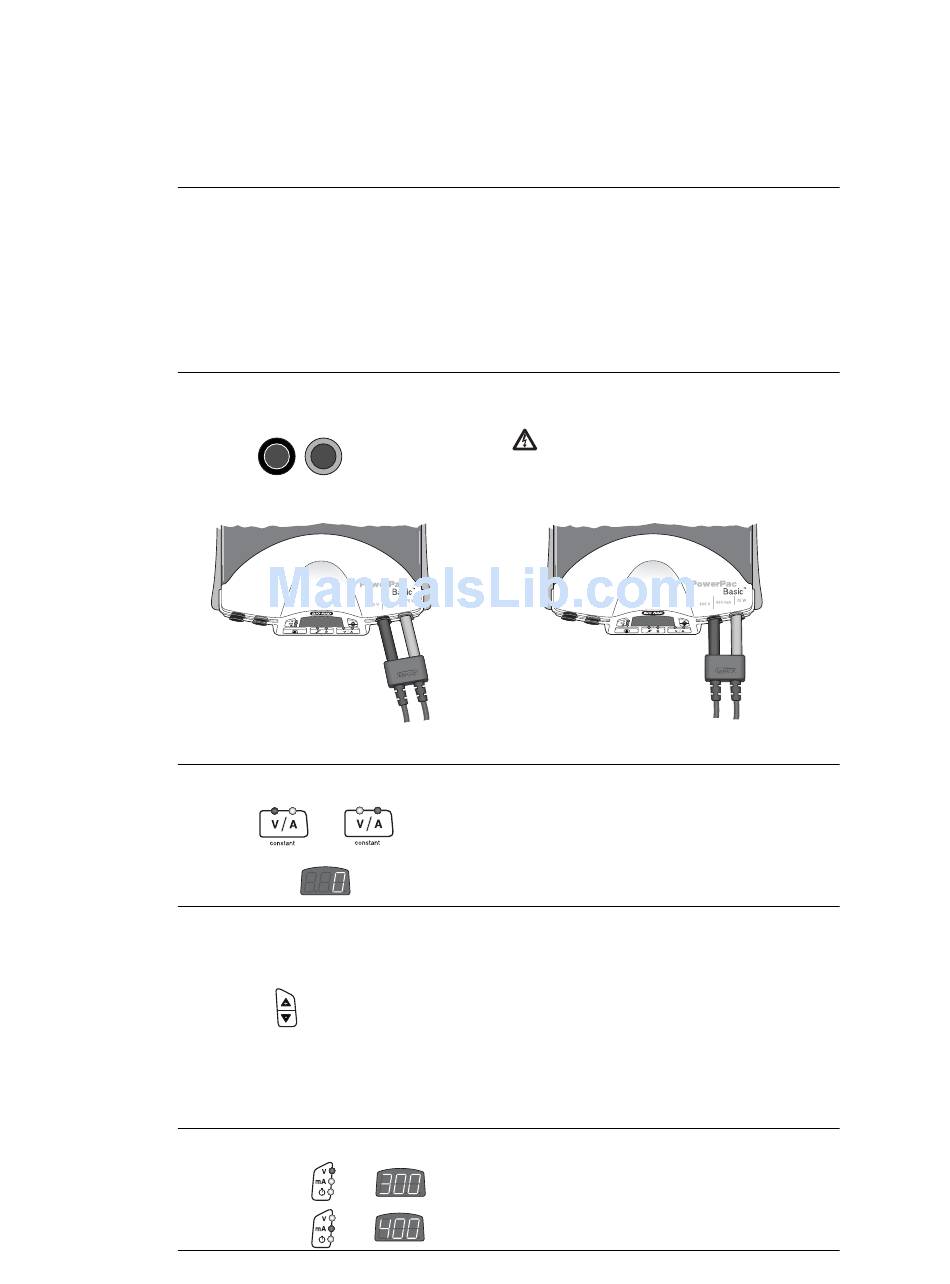

Fig. 5. Power leads connected correctly.
3. Select the constant parameter
4. Enter a value for the constant
parameter using the scroll key.
5. Enter value for limit parameter.
For volts
For milliamperes
or
4
DESCRIPTION
Press the power switch located on the right
side of the unit to the on position.
The default setting is constant V, and the
LED display shows zero value.
To display firmware version number, hold
down constant parameter key while turning
the power switch to the on position.
The power leads are color coordinated to
the output terminals in red and black.
indicates high voltages.
Note: Power leads must be inserted
perpendicular to the curve of the case.
Fig. 6. Power leads connected incorrectly.
Press the Constant key to select the
constant parameter, either voltage or
current The LED on the parameter key
corresponding to the selected constant
parameter will light up. The display shows
the zero value for the constant parameter.
Use the scroll key to enter the desired value.
Voltage: 10–300V adjustable in 1V increments.
Current: 4–400 mA adjustable in 1 mA
increments.
Note: If the scroll key is pressed constantly
for more than 5 units in either direction, +/-,
the values will increase/decrease in
increments of 10 to reach the desired value
faster.
Use the parameter key to select the limit
parameter. The maximum default value,
300V or 400mA, is displayed. Select a suitable
limit value to avoid excessive power
conditions for the application.
