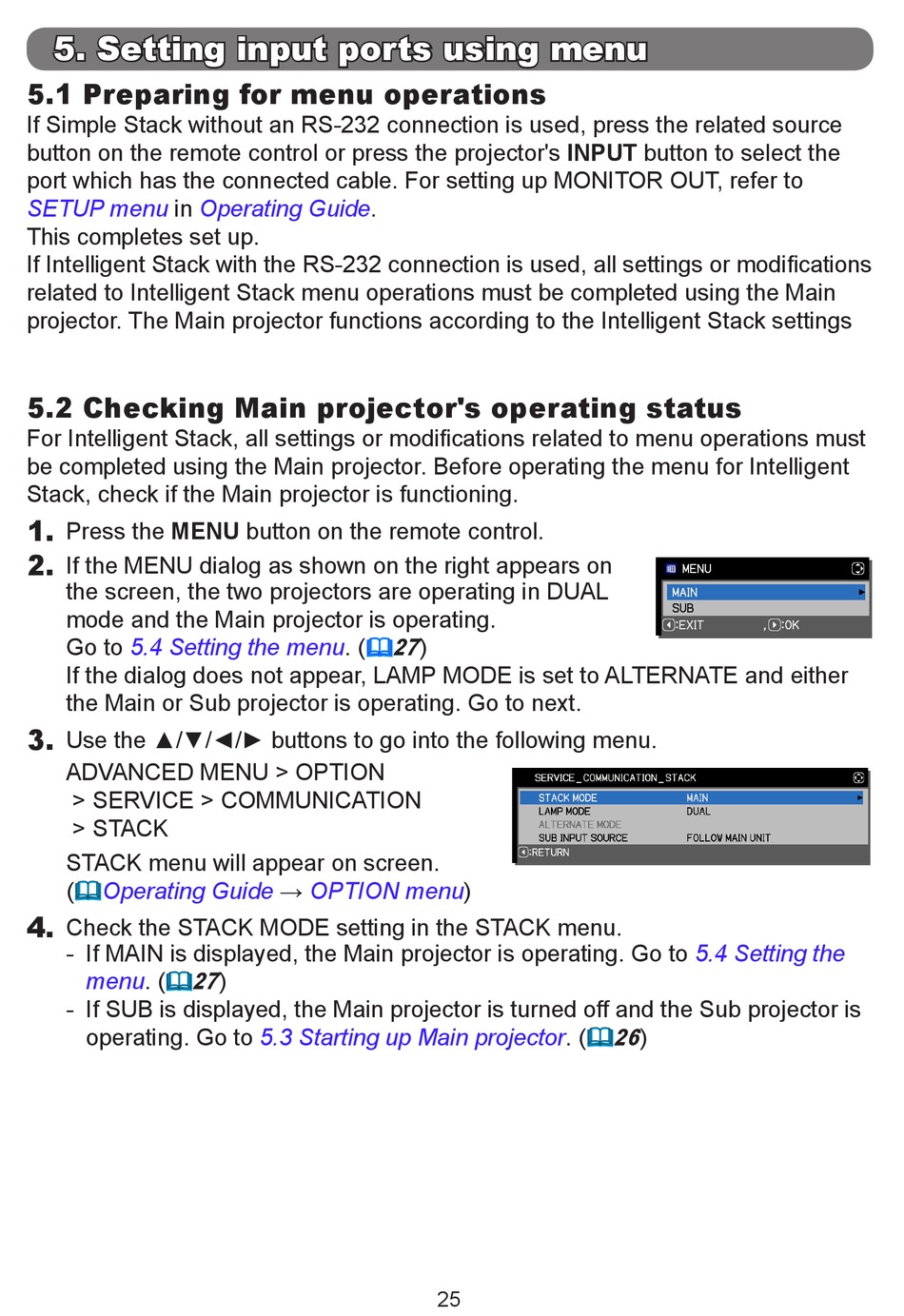

5. Setting input ports using menu

5.1 Preparing for menu operations

If Simple Stack without an RS-232 connection is used, press the related source
button on the remote control or press the projector's INPUT button to select the
port which has the connected cable. For setting up MONITOR OUT, refer to
SETUP menu in
This completes set up.
If Intelligent Stack with the RS-232 connection is used, all settings or modifications
related to Intelligent Stack menu operations must be completed using the Main
projector. The Main projector functions according to the Intelligent Stack settings

5.2 Checking Main projector's operating status

For Intelligent Stack, all settings or modifications related to menu operations must
be completed using the Main projector. Before operating the menu for Intelligent
Stack, check if the Main projector is functioning.
1.
Press the MENU button on the remote control.
2.
If the MENU dialog as shown on the right appears on
the screen, the two projectors are operating in DUAL
mode and the Main projector is operating.
Go to 5.4 Setting the
If the dialog does not appear, LAMP MODE is set to ALTERNATE and either
the Main or Sub projector is operating. Go to next.
3.
Use the ▲/▼/◄/► buttons to go into the following menu.
ADVANCED MENU > OPTION
> SERVICE > COMMUNICATION
> STACK
STACK menu will appear on screen.
(Operating Guide
4.
Check the STACK MODE setting in the STACK menu.
- If MAIN is displayed, the Main projector is operating. Go to
menu. ( 27 )
- If SUB is displayed, the Main projector is turned off and the Sub projector is
operating. Go to
Operating Guide.
menu. (
→ OPTION
5.3 Starting up Main
27 )
menu)
projector. ( 26 )
25
5.4 Setting the
