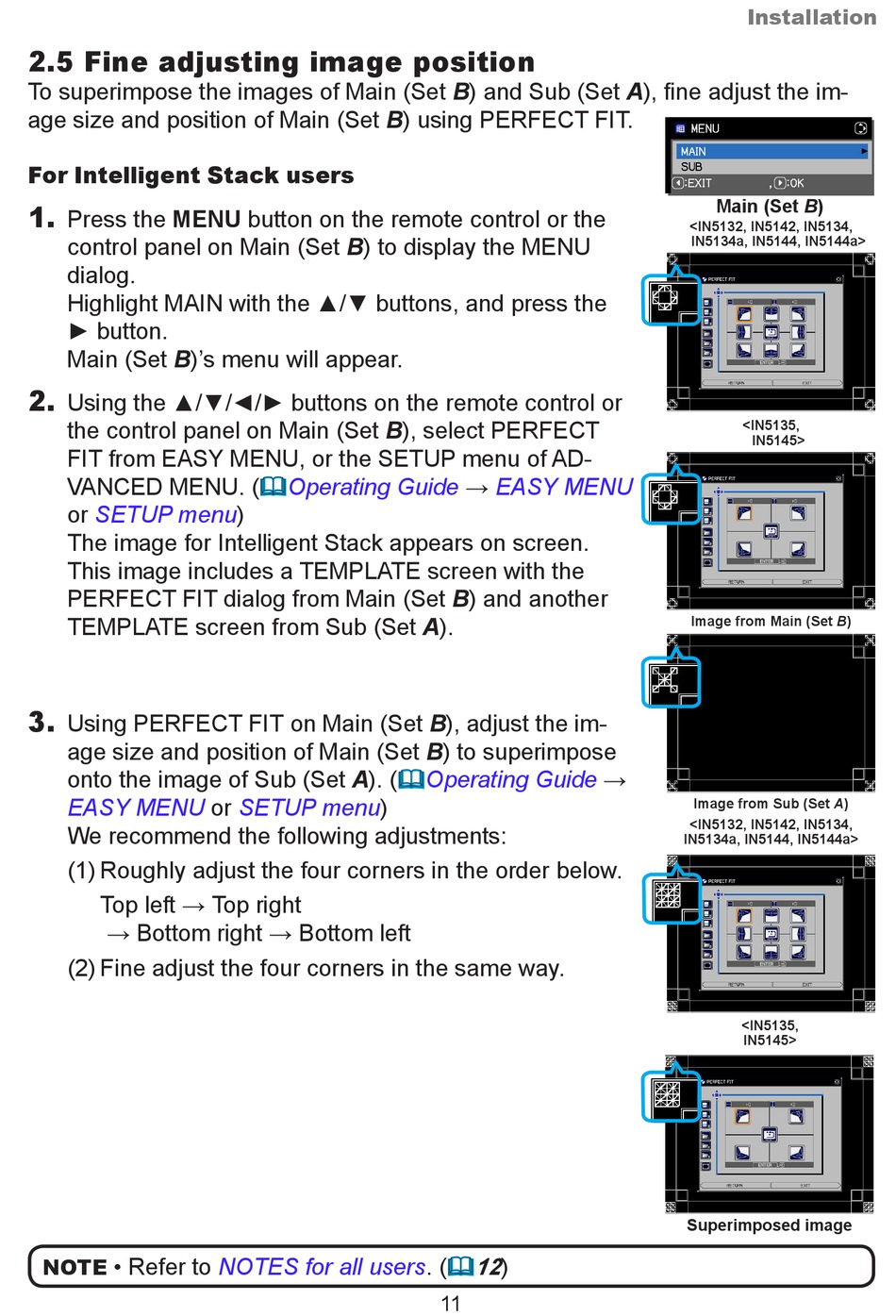

2.5 Fine adjusting image position

To superimpose the images of Main (Set B) and Sub (Set A), fine adjust the im-
age size and position of Main (Set B) using PERFECT FIT.

For Intelligent Stack users

1.
Press the MENU button on the remote control or the
control panel on Main (Set B) to display the MENU
dialog.
Highlight MAIN with the ▲/▼ buttons, and press the
► button.
Main (Set B)'s menu will appear.
2.
Using the ▲/▼/◄/► buttons on the remote control or
the control panel on Main (Set B), select PERFECT
FIT from EASY MENU, or the SETUP menu of AD-
VANCED MENU.
or
SETUP
menu)
The image for Intelligent Stack appears on screen.
This image includes a TEMPLATE screen with the
PERFECT FIT dialog from Main (Set B) and another
TEMPLATE screen from Sub (Set A).
3.
Using PERFECT FIT on Main (Set B), adjust the im-
age size and position of Main (Set B) to superimpose
onto the image of Sub (Set A).
EASY MENU
We recommend the following adjustments:
(1) Roughly adjust the four corners in the order below.
Top left → Top right
→ Bottom right → Bottom left
(2) Fine adjust the four corners in the same way.
• Refer to
NOTE
(Operating Guide
or
SETUP
menu)
users. ( 12 )
NOTES for all
EASY MENU
(Operating Guide
11
Installation
Main (Set B)
<IN5132, IN5142, IN5134,
IN5134a, IN5144, IN5144a>
<IN5135,
IN5145>
Image from Main (Set B)
Image from Sub (Set A)
<IN5132, IN5142, IN5134,
IN5134a, IN5144, IN5144a>
<IN5135,
IN5145>
Superimposed image
Superimposed image
