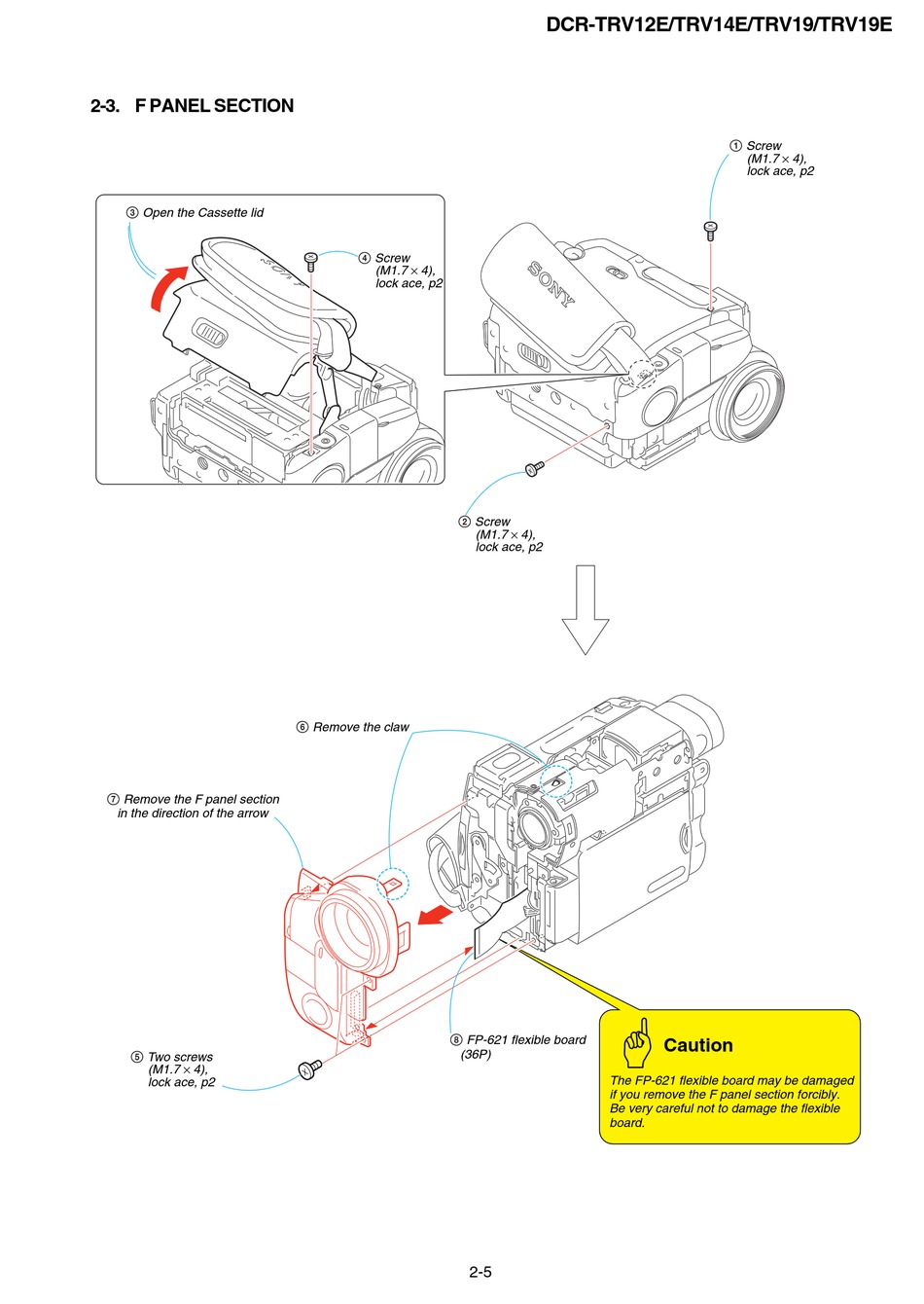

2-3. F PANEL SECTION

Open the Cassette lid
3
Remove the F panel section
7
in the direction of the arrow
Two screws
5
(M1.7 × 4),
lock ace, p2
Screw
4
(M1.7 × 4),
lock ace, p2
2
Remove the claw
6
8
(36P)
DCR-TRV12E/TRV14E/TRV19/TRV19E
Screw
(M1.7 × 4),
lock ace, p2
FP-621 flexible board
The FP-621 flexible board may be damaged
if you remove the F panel section forcibly.
Be very careful not to damage the flexible

board.

2-5
Screw
1
(M1.7 × 4),
lock ace, p2
Caution
