DCR-TRV12E/TRV14E/TRV19/TRV19E
COVER COVER

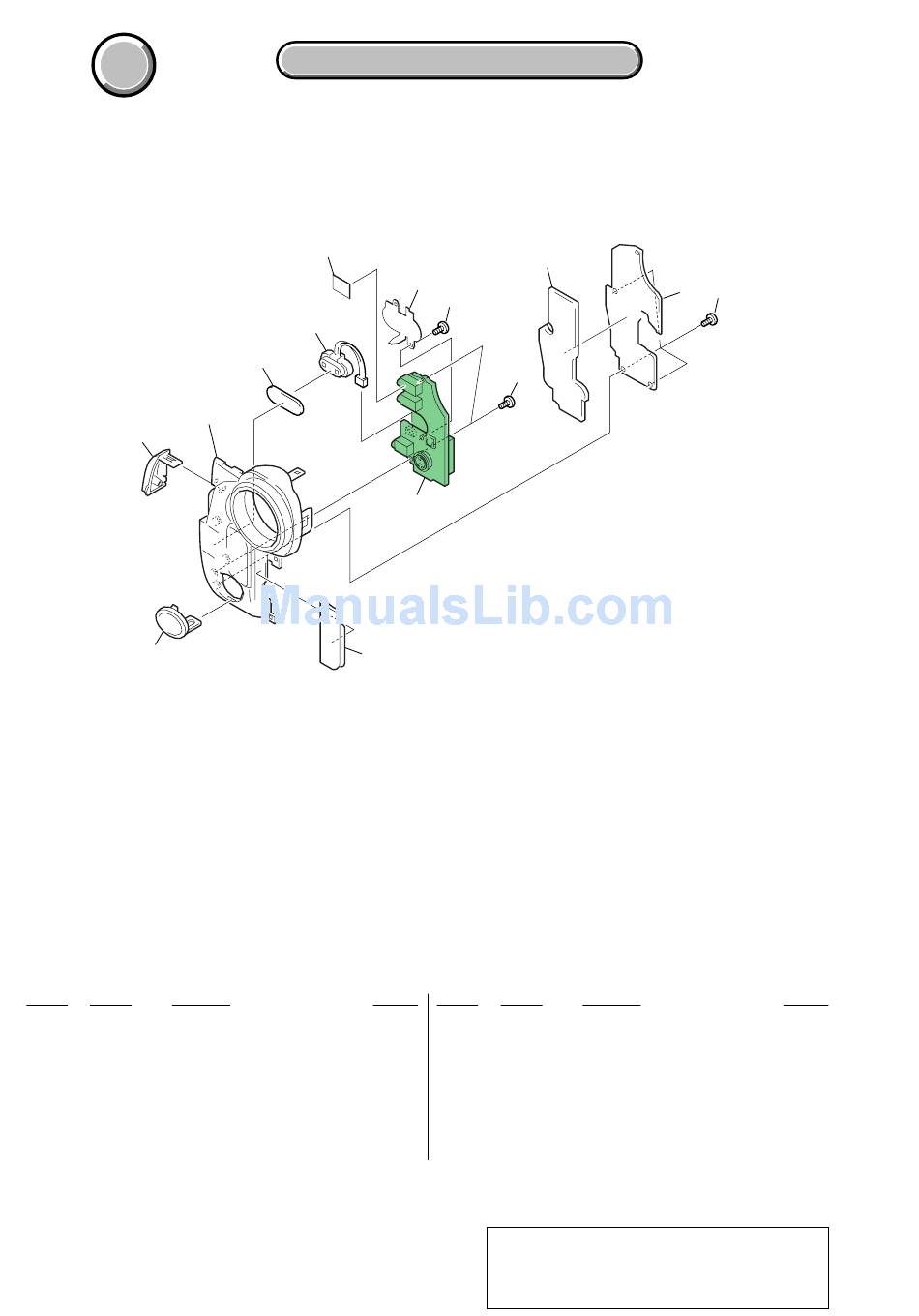

5-1-2. F PANEL SECTION
ns : not supplied
53
51
Ref. No. Part No. Description
51 3-080-516-01 COVER, S TERMINAL
52 3-080-402-51 PLATE, NAME (TRV19)
52 3-080-402-61 PLATE, NAME (TRV19E)
52 3-080-402-71 PLATE, NAME (TRV12E)
52 3-080-402-81 PLATE, NAME (TRV14E)
53 3-080-573-01 COVER (F), JACK
54 X-3953-270-1 PANEL (384) ASSY, F (TRV12E)
54 X-3953-271-1 PANEL (390) ASSY, F (TRV14E/TRV19/TRV19E)
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
60
MIC901
ns
54
52
58
56
57
57
55
Remarks Ref. No. Part No.
55 A-7013-812-A MA-421 (MSNASHI) BOARD, COMPLETE
56 3-080-517-01 RETAINER, MICROPHONE
57 3-713-791-11 SCREW (M1.7X5), TAPPING, P2
58 3-080-519-01 CUSHION, MA COVER
59 3-080-514-01 COVER, MA
60 CAUTION
MIC901 1-542-513-11 MICROPHONE
CAUTION :
For the parts of 60: SHEET, HP (3-083-974-01) cut
SHEET (MD), CN (3-075-957-02) into the desired
length and use it.
5-4
57
59
Description
SHEET, HP
Remarks
