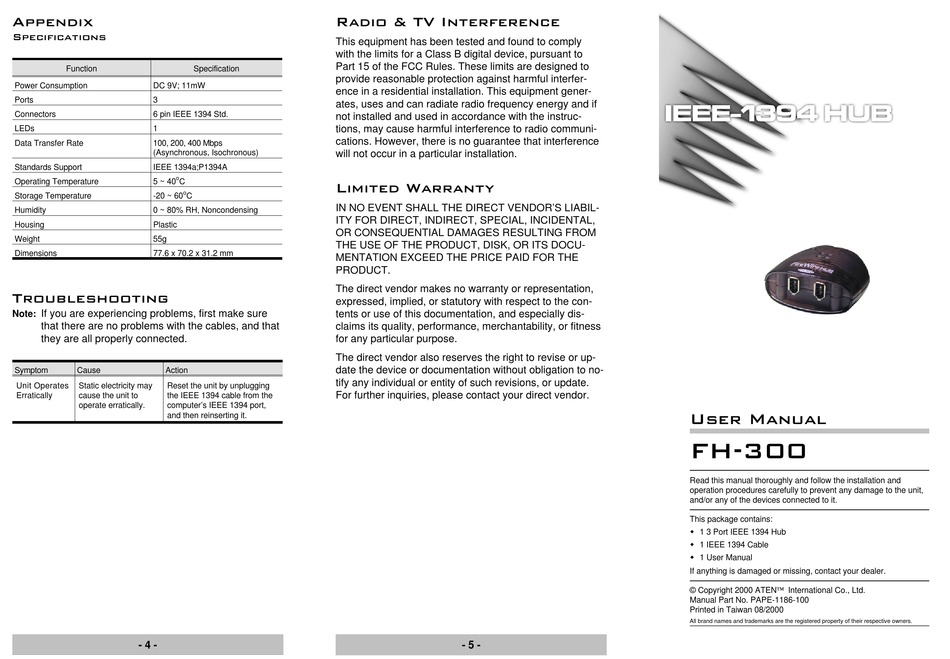

ATEN FH-300 Use Manual

Appendix

Specifications

Function
Power Consumption DC 9V; 11mW
Ports 3
Connectors 6 pin IEEE 1394 Std.
LEDs 1
Data Transfer Rate 100, 200, 400 Mbps
(Asynchronous, Isochronous)
Standards Support IEEE 1394a;P1394A
o
Operating Temperature 5 ~ 40 C
o
Storage Temperature -20 ~ 60 C
Humidity 0 ~ 80% RH, Noncondensing
Housing Plastic
Weight 55g
Dimensions 77.6 x 70.2 x 31.2 mm

Troubleshooting

If you are experiencing problems, first make sure
Note:
that there are no problems with the cables, and that
they are all properly connected.
Symptom Cause Action
Unit Operates Static electricity may Reset the unit by unplugging
Erratically cause the unit to the IEEE 1394 cable from the
operate erratically. computer's IEEE 1394 port,
and then reinserting it.
- 4 -
Radio & TV Interference
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
Specification
provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and if
not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference
will not occur in a particular installation.

Limited Warranty

IN NO EVENT SHALL THE DIRECT VENDOR'S LIABIL-
ITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THE PRODUCT, DISK, OR ITS DOCU-
MENTATION EXCEED THE PRICE PAID FOR THE
PRODUCT.
The direct vendor makes no warranty or representation,
expressed, implied, or statutory with respect to the con-
tents or use of this documentation, and especially dis-
claims its quality, performance, merchantability, or fitness
for any particular purpose.
The direct vendor also reserves the right to revise or up-
date the device or documentation without obligation to no-
tify any individual or entity of such revisions, or update.
For further inquiries, please contact your direct vendor.
- 5 -

User Manual

FH-300
Read this manual thoroughly and follow the installation and
operation procedures carefully to prevent any damage to the unit,
and/or any of the devices connected to it.
This package contains:
M 1 3 Port IEEE 1394 Hub
M 1 IEEE 1394 Cable
M 1 User Manual
If anything is damaged or missing, contact your dealer.
© Copyright 2000 ATEN International Co., Ltd.
Manual Part No. PAPE-1186-100
Printed in Taiwan 08/2000
All brand names and trademarks are the registered property of their respective owners.
