Fixture Exterior View - Robe ROBIN Pointe User Manual

The head should be locked for transportation- the tilt lock latch () and the pan lock latch (3) have to be in the
locked positions. To unlock the head, move these latches to unlock positions before operating the fixture.
The ENTER/DISPLAY ON button also serves for switching the display on when the fixture is disconnected
from the mains.

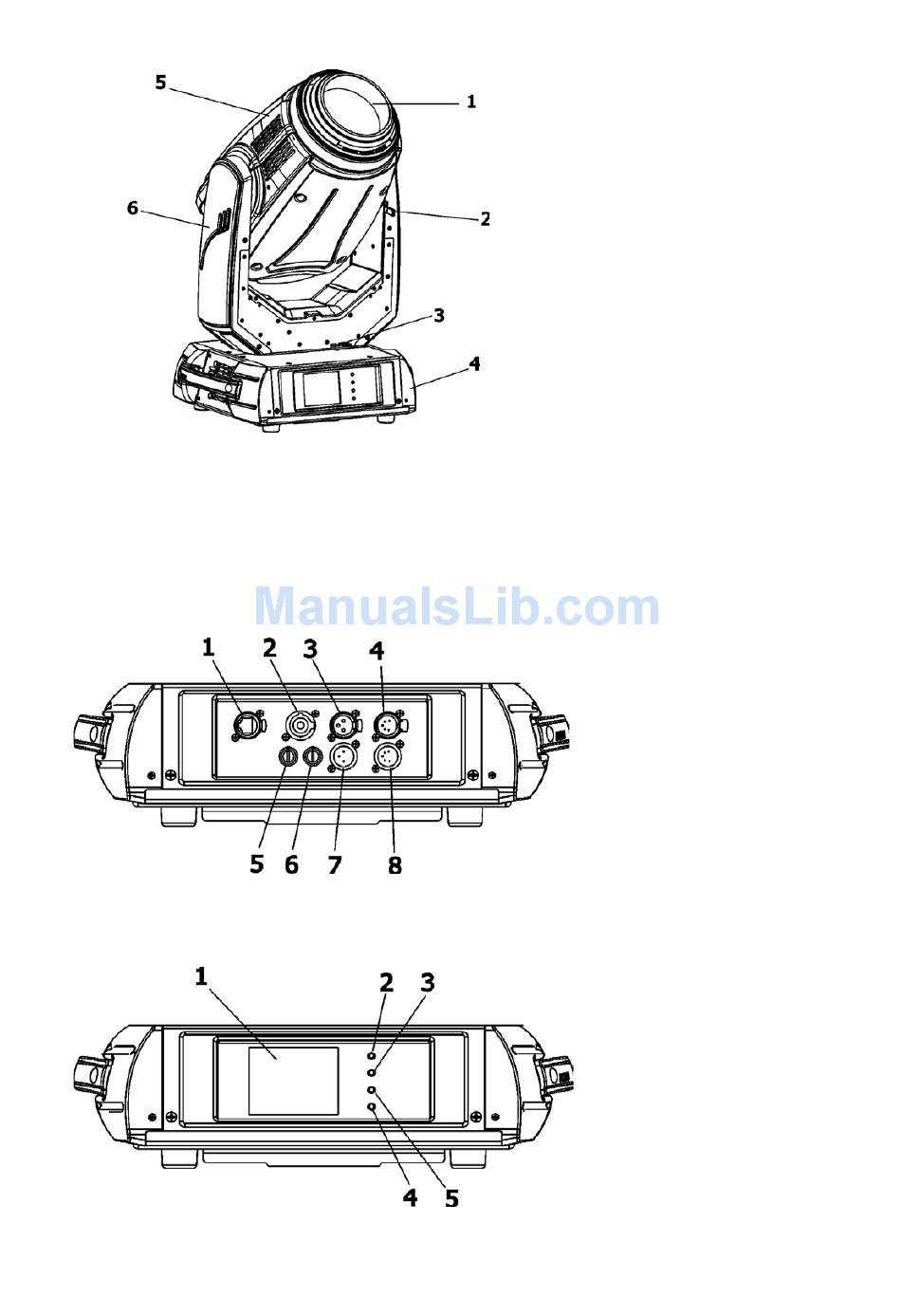

2. Fixture exterior view

5
1 - Front lens
2 - Tilt lock
3 - Pan lock
4 - Base
5 - Moving head
6 - Arm
Rear panel of the base:
1 - Ethernet input-RJ45
2 - Power
3 - 3-pin DMX Out
4 - 5-pin DMX Out
5 - Fuse holder-live
6 - Fuse holder-neutral
7 - 3-pin DMX In
8 - 5-pin DMX In
Front panel of the base:
1 - QVGA touch screen
2 - ESCAPE button
3 - NEXT button
4 - PREV button
5 - ENTER/DISPLAY ON button
